On-Vehicle Inspection [10/2015 - 12/2017]: Procedure

VISUALLY CHECK HOSES, CONNECTIONS AND GASKETS
1. Visually check that the hoses, connections and gaskets have no cracks, leaks or damage.
  NOTE:
  - Detachment or other problems with the engine oil level dipstick, oil filler cap sub-assembly, ventilation hose or other components may cause the engine to run improperly.
  - Air suction caused by disconnections, looseness or cracks in any part of the air induction system between the throttle body with motor assembly and cylinder head sub-assembly will cause engine failure or engine malfunctions.
  If any defects are found, replace parts as necessary.

INSPECT EVAPORATIVE EMISSION CONTROL SYSTEM

WARNING:

To prevent injury due to contact with an operating V-ribbed belt or cooling fan, keep your hands and clothing away from the V-ribbed belt and cooling fans when working in the engine compartment with the engine running or the power switch on (IG).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.
Put the engine in inspection mode (maintenance mode).
Refer to INSPECTION MODE PROCEDURE [10/2015 - ]

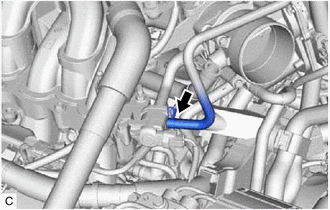

Slide the clip and disconnect the fuel vapor feed hose assembly from the purge valve (purge VSV).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Enter the following menus: Powertrain / Engine and ECT / Active Test / Activate the VSV for Evap Control.

Powertrain > Engine and ECT > Active Test

Tester Display
Activate the VSV for Evap Control

Check that vacuum occurs at the purge valve (purge VSV) port.
If vacuum does not occur, check the following items.
- Purge valve (purge VSV)
- Clogging in the No. 1 fuel vapor feed hose that connects the intake manifold and purge valve (purge VSV)
- Voltage from the ECM PRG terminal
  Refer to TERMINALS OF ECM [10/2015 - 08/2019]
Exit Active Test mode and connect the fuel vapor feed hose assembly.
If the result is not as specified, replace the purge valve (purge VSV), wire harness or ECM.

Enter the following menus: Powertrain / Engine and ECT / Data List / EVAP Purge VSV.

Powertrain > Engine and ECT > Data List

Tester Display
EVAP (Purge) VSV

Warm up the engine and drive the vehicle.
Confirm that the purge valve (purge VSV) opens.
If the result is not as specified, replace the purge valve (purge VSV), wire harness or ECM.

CHECK FUEL TANK AND VENT LINE

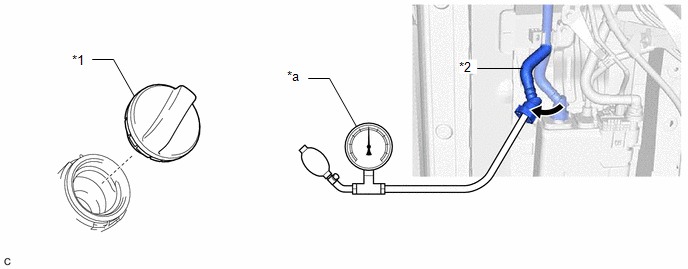

Disconnect the fuel tank vent hose sub-assembly from the canister (charcoal canister assembly).

*1	Fuel Tank Cap Assembly	*2	Fuel Tank Vent Hose Sub-assembly
*a	Pressure Gauge	-	-

Connect a pressure gauge to the fuel tank vent hose sub-assembly.
Apply 4 kPa (0.04 kgf/cm² , 0.6 psi) of pressure to the vent line of the fuel tank assembly.
HINT:

Perform this inspection with the fuel tank assembly less than 90% full. When the fuel tank assembly is full, the fuel fill check valve closes and the pressure is released through the 2 mm (0.0787 in.) orifice. As a result, when the fuel tank cap assembly is removed, the pressure does not decrease smoothly.
Check that the fuel tank assembly pressure is maintained for some time and does not decrease immediately.
HINT:

If the pressure decreases immediately, one of the following may apply:
- The fuel tank cap assembly is not completely tightened.
- The fuel tank cap assembly is damaged.
- Air is leaking from the vent line.
- The fuel tank assembly is damaged.
Remove the fuel tank cap assembly and check that the pressure is released smoothly.
If the pressure is not released smoothly, replace the fuel tank assembly.
Connect the fuel tank vent hose sub-assembly to the canister (charcoal canister assembly).

INSPECT AIR LINE

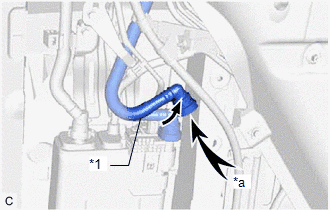

Disconnect the air line tube from the charcoal canister leak detection pump sub-assembly.

*1	Air Line Tube
*a	Air

Check that air flows freely into the air line.
If air does not flow freely into the air line, repair or replace the air line tube.
Connect the air line tube to the charcoal canister leak detection pump sub-assembly.
