Removal [09/2015 - ]: Procedure

  1. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  2

  2. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

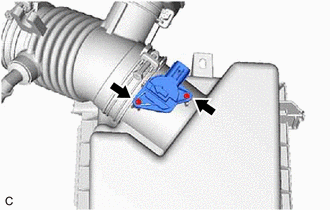

    1. Remove the 2 screws and mass air flow meter sub-assembly from the air cleaner cap sub-assembly.
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.

      GTY659084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
