System Diagram [03/2019 - 09/2020]

Fig 1: Navigation System Diagram (1 Of 10)

GTY838144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

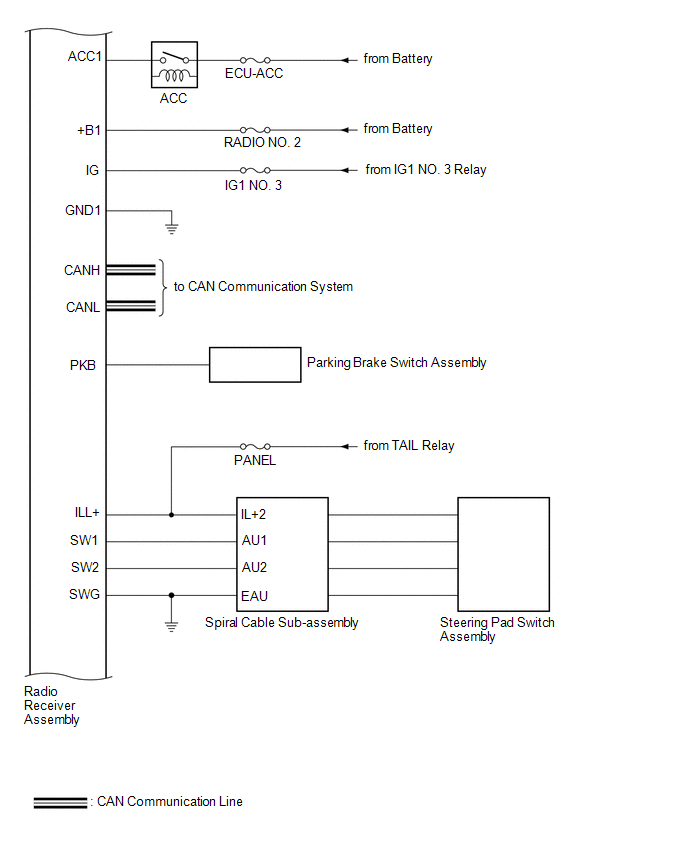

Fig 2: Navigation System Diagram (2 Of 10)

GTY960245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

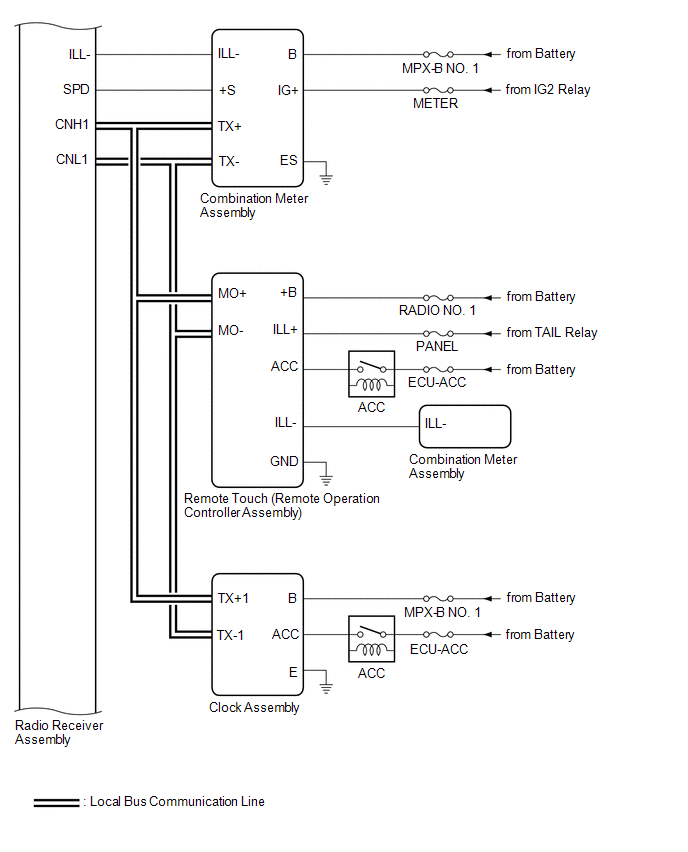

Fig 3: Navigation System Diagram (3 Of 10)

GTY961069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Navigation System Diagram (4 Of 10)

GTY830032

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

Fig 5: Navigation System Diagram (5 Of 10)

GTY814349

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Navigation System Diagram (6 Of 10)

GTY810221

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

Fig 7: Navigation System Diagram (7 Of 10)

GTY803420

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 10 Speakers

Fig 8: Navigation System Diagram (8 Of 10)

GTY826308

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 17 Speakers

Fig 9: Navigation System Diagram (9 Of 10)

GTY829430

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Navigation System Diagram (10 Of 10)

GTY815770

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
