System Diagram [09/2014 - 08/2016]

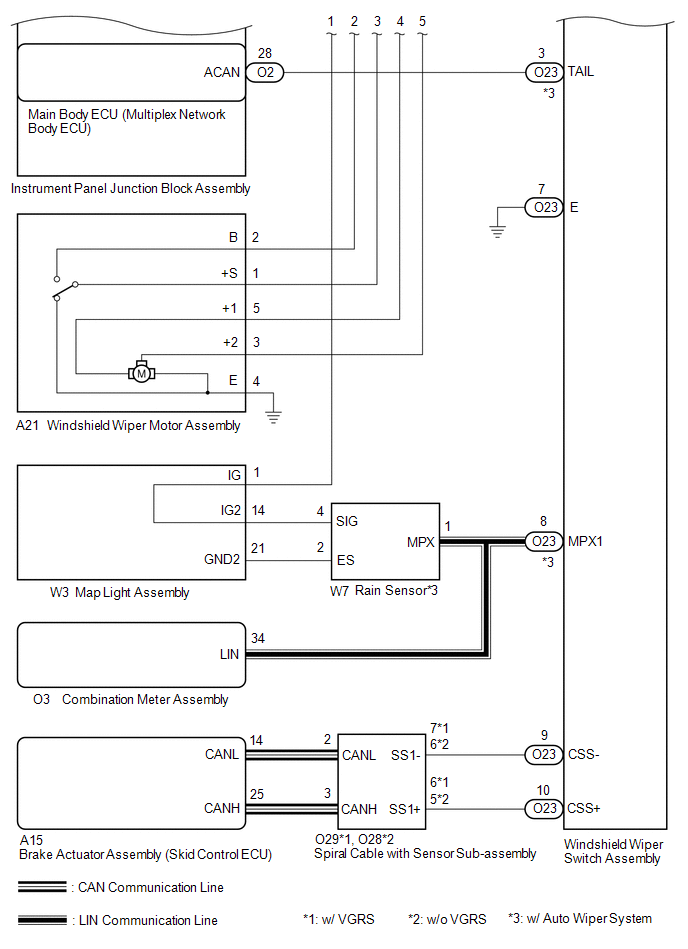

  1. WIPER AND WASHER SYSTEM
    GTY520732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY517605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. HEADLIGHT CLEANER SYSTEM (w/ Headlight Cleaner System)
    GTY517885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    GTY519046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. WASHER FLUID LEVEL WARNING SYSTEM
    GTY514599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
