Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Monitor System - Service Information
>>
ULTRASONIC SENSOR (for Front Side)
>>
Components [08/2016 - 10/2018]
Components [08/2016 - 10/2018]

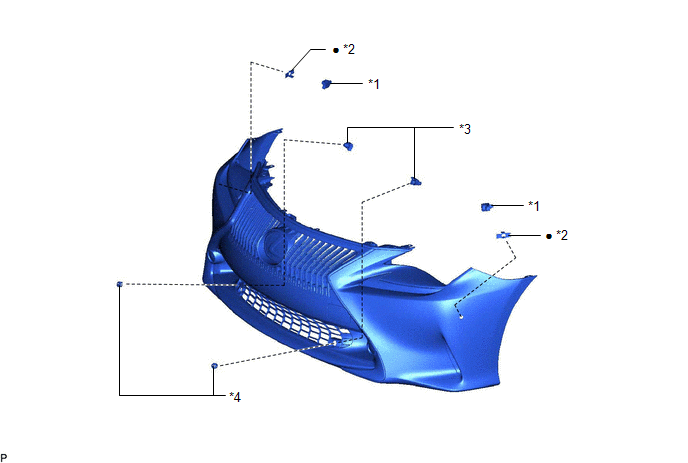

Fig 1: Ultrasonic Sensor (For Front Side) Replacement Components [08/2016 - 10/2018]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*1
NO. 1 ULTRASONIC SENSOR
*2
NO. 1 ULTRASONIC SENSOR RETAINER
*3
NO. 2 ULTRASONIC SENSOR
*4
NO. 2 ULTRASONIC SENSOR RETAINER
•
Non-reusable part
-
-
