Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2014 - 09/2016] , or refer to PROCEDURE - Step 17 [09/2016 - 05/2019] , or refer to PROCEDURE - Step 17 [05/2019 - ]

  2. REMOVE CAMSHAFT POSITION SENSOR

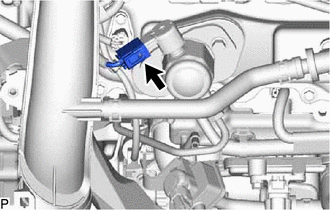

    1. Disconnect the fuel pump assembly connector.
      GTY506740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

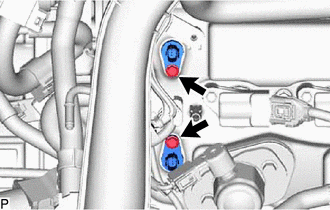

    2. Disconnect the 2 camshaft position sensor connectors.
    3. Remove the 2 bolts and 2 camshaft position sensors.
      GTY506746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Replace with a new part if it is dropped or if it receives a strong impact.
