Home >> Lexus >> 2018 >> LX 570 >> Repair and Diagnosis >> Brakes >> Traction Control >> Brake Control System (Service Information) >> Rear Speed Sensor >> Components [09/2015 - ]

Components [09/2015 - ]

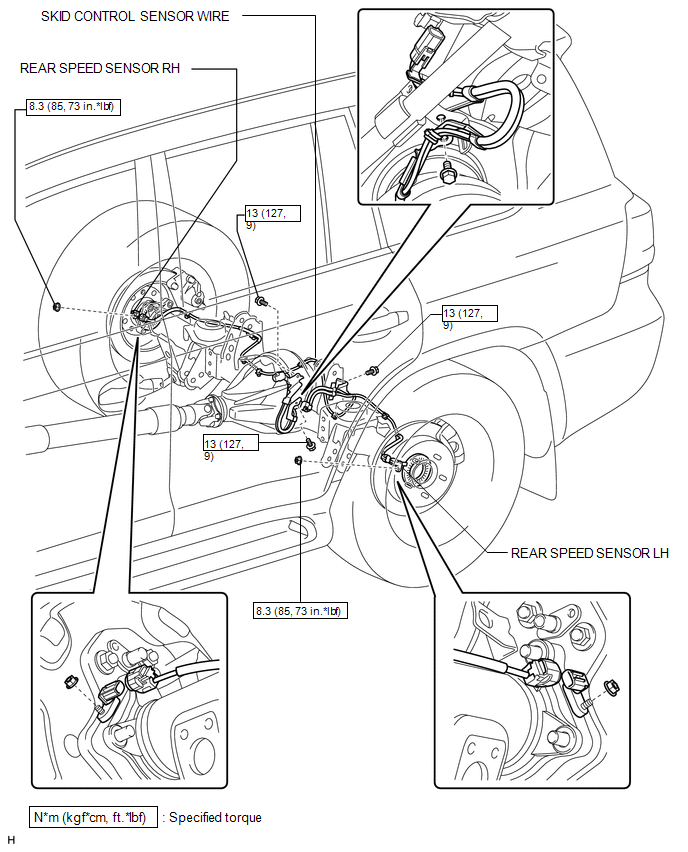

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
GTY631717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
