On-Vehicle Inspection [12/2017 - ]: Procedure

  1. INSPECT STARTER RELAY (ST NO. 1)
    1. Measure the resistance according to the value(s) in the table below.

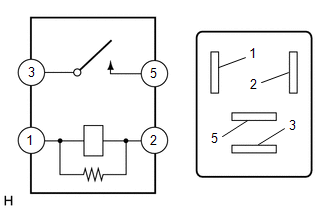

      GTY793508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Resistance

      Tester Connection Condition Specified Condition
      3 - 5 Battery voltage not applied to terminals 1 and 2 10 kΩ or higher
      Battery voltage applied to terminals 1 and 2 Below 1 Ω

      If the result is not as specified, replace the starter relay.
