Reassembly [10/2020 - 11/2021]: Procedure
WARNING: This page is about a different car, the 2024 Lexus LS 500, 2023 Lexus LS 500, 2022 Lexus LS 500, and 2021 Lexus LS 500. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL NO. 1 MILLIMETER WAVE RADAR SENSOR BRACKET

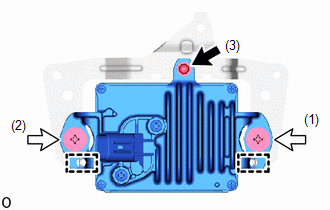

- Attach the guide.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
 |
Screw |
 |
Bolt |
- Temporarily install the No. 1 millimeter wave radar sensor bracket with the 2 bolts and screw.
- Tighten the 2 bolts and screw in the order shown in the illustration.
Bolt
Torque: 2.5 N.m (25 kgf/cm, 22 in.lbf)
