Driver Side Junction Block Inner Circuit

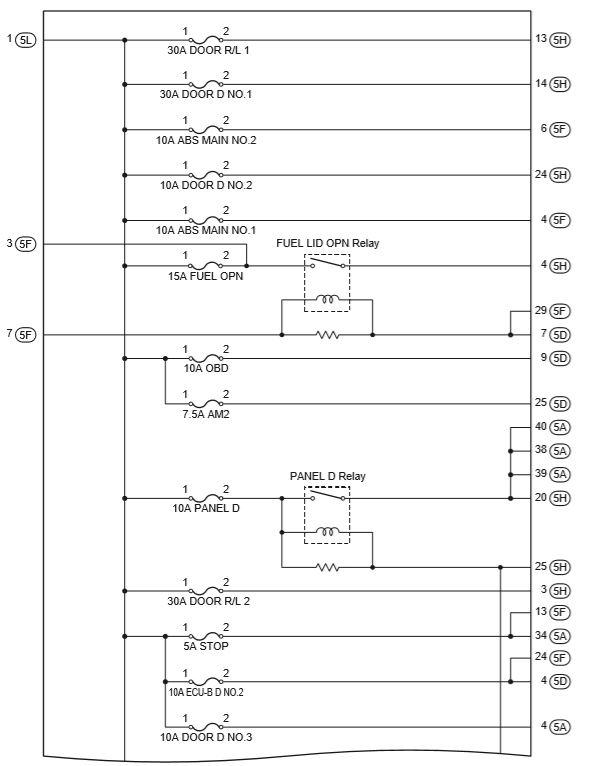

Fig 1: Driver Side J/B Inner Circuit Diagram With Relays (1 Of 5)
G00584587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
FUEL LID OPN Relay
PANEL D Relay

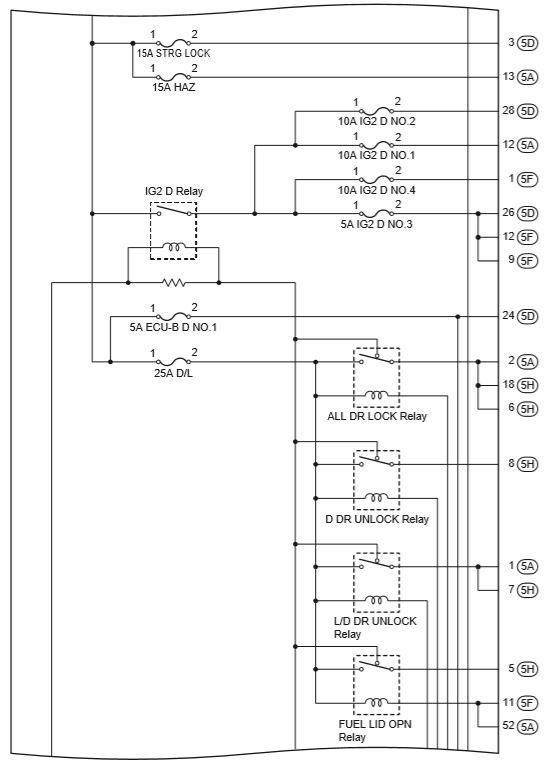

Fig 2: Driver Side J/B Inner Circuit Diagram With Relays (2 Of 5)
G00584588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 D Relay
ALL DR LOCK Relay
D DR UNLOCK Relay
L/D DR UNLOCK Relay
FUEL LID OPEN Relay

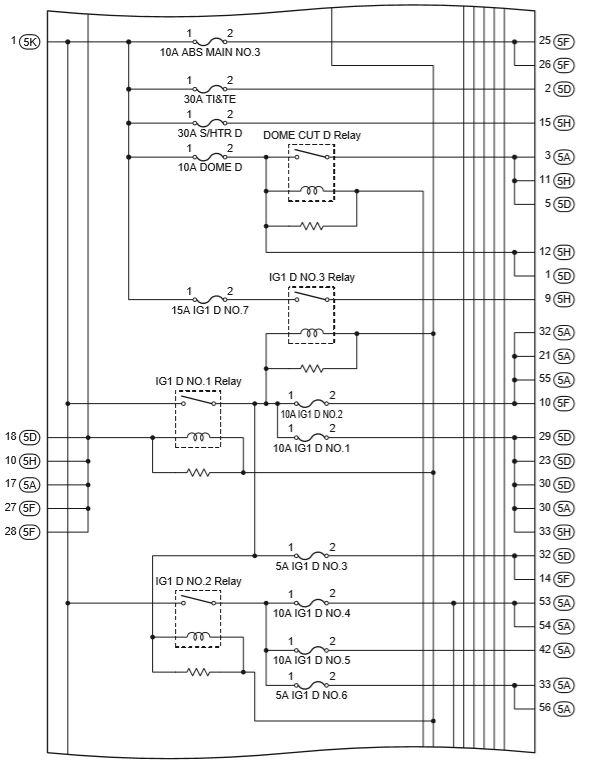

Fig 3: Driver Side J/B Inner Circuit Diagram With Relays (3 Of 5)
G00584589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
DOME CUT D Relay
IG1 D NO. 3 Relay
IG1 D NO. 1 Relay
IG1 D NO. 2 Relay

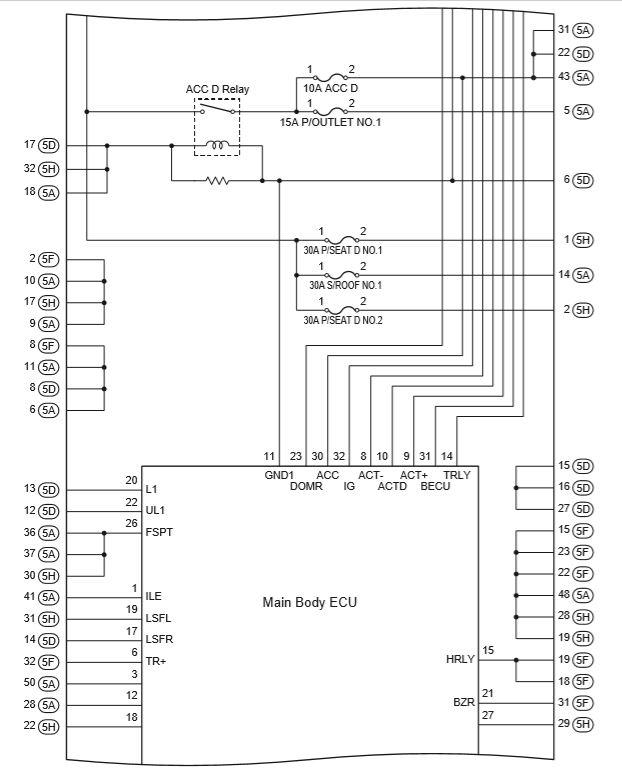

Fig 4: Driver Side J/B Inner Circuit Diagram With Relays (4 Of 5)
G00584590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DRIVER SIDE J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
ACC D Relay

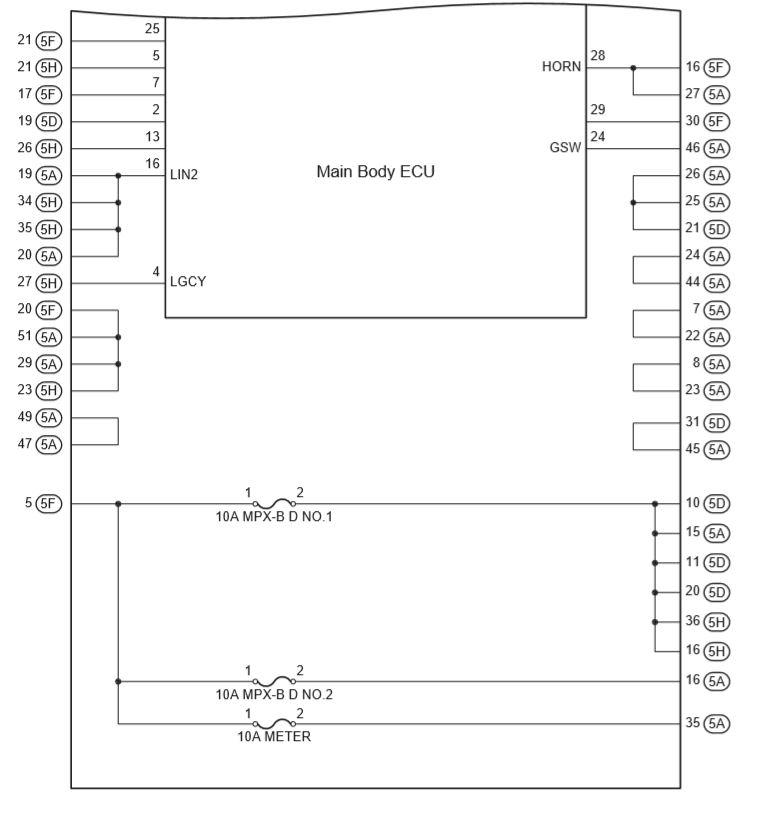

Fig 5: Driver Side J/B Inner Circuit Diagram (5 Of 5)
G00584591Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
