Wiper and Washer Switch Circuit [12/2017 - 10/2020]: Wiring Diagram

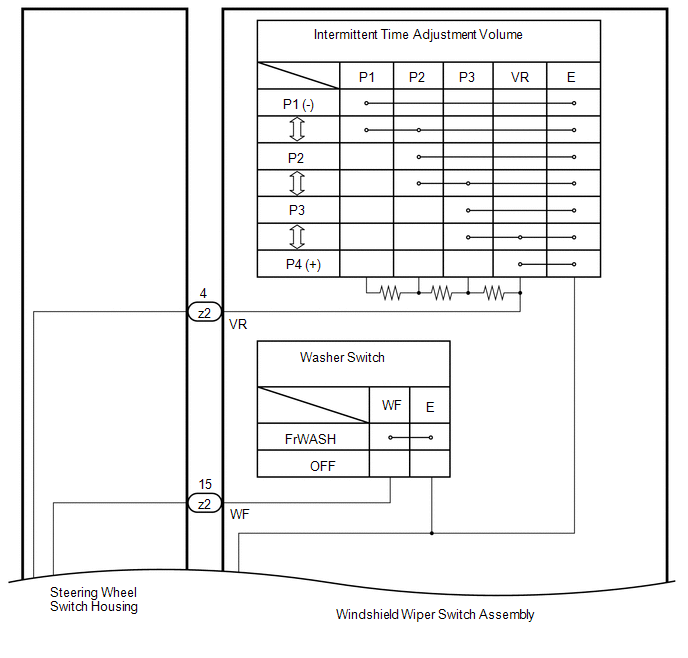

GTY794905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

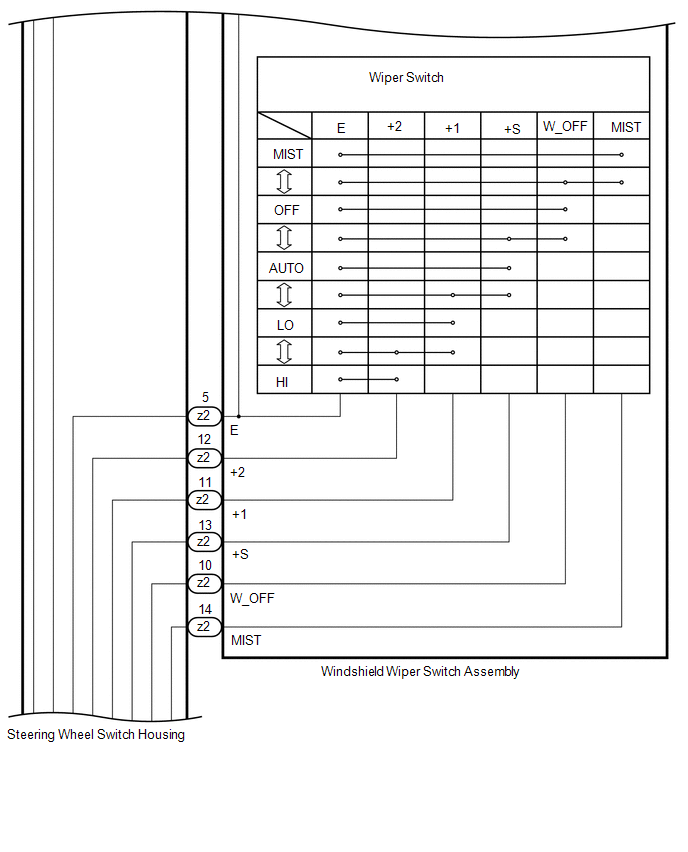

GTY800444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

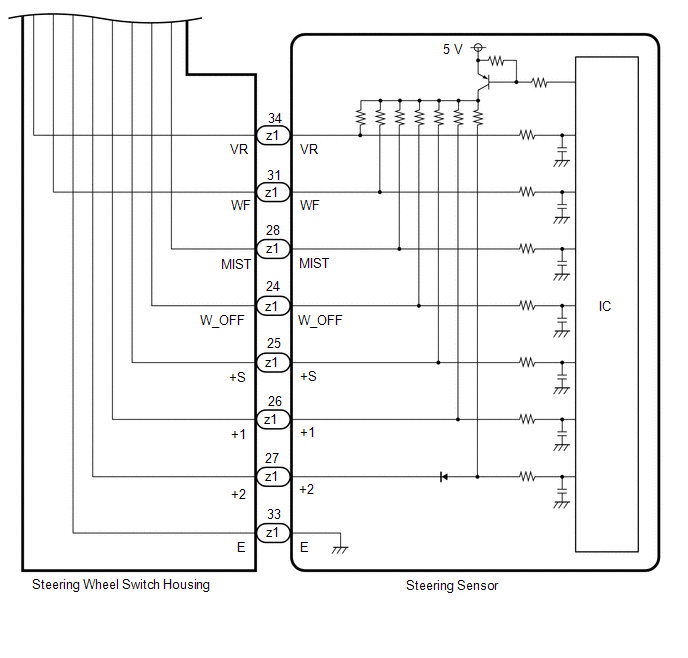

GTY775606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
