Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment [01/2017 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Customize Setting / Smart Access.

   Smart Key / Access

   Tester Display	Description	Default	Setting	ECU
   Trunk Open Mode	Function that opens the luggage compartment door when the user is carrying the electrical key transmitter sub-assembly and presses the luggage electrical key switch.	ON	0:OFF, 1:ON	Certification ECU (Smart key ECU assembly)

   Result

   Result	Proceed to
   Trunk Open Mode is ON	A
   Trunk Open Mode is OFF	B

Result:

B

PERFORM CUSTOMIZE SETTING (Proceed to Customize Parameters). Refer to  CUSTOMIZE PARAMETERS [01/2017 - 05/2023]  , or refer to  CUSTOMIZE PARAMETERS [05/2023 - ]

Result:

A

See step  2

1. Operate the luggage door opening switch assembly in the vehicle and check that the luggage compartment door opens.

   Refer to OPERATION CHECK [01/2017 - ]

   Result

   Result	Proceed to
   The luggage compartment door opens	A
   The luggage compartment door does not open	B

Result:

B

GO TO LUGGAGE COMPARTMENT DOOR OPENER SYSTEM (Proceed to Luggage Compartment Door Opener does not Operate Using Cabin Switch). Refer to  Luggage Compartment Door Opener does not Operate Using Cabin Switch [01/2017 - ]

Result:

A

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Smart Access / Data List.
5. Read the Data List according to the display on the Techstream.

   Body Electrical > Smart Access > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Tr/B-Door Unlock SW	Luggage electrical key switch	ON or OFF	ON: Luggage electrical key switch pushed OFF: Luggage electrical key switch not pushed	Use this Data List item to help determine if there is a switch malfunction when the luggage compartment door open function does not operate.

   Body Electrical > Smart Access > Data List

   Tester Display
   Tr/B-Door Unlock SW

   OK

   The Techstream display changes correctly in response to the operation of the luggage electrical key switch.

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  9

Result:

OK

See step  4

1. Bring the electrical key transmitter sub-assembly approximately 0.3 m (0.984 ft.) from the electrical key antenna (outside luggage compartment) and perform an entry luggage compartment open function check.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Approximately 0.3 m (0.984 ft.)

   HINT:

   • Communication may not be possible if the electrical key transmitter sub-assembly is brought within 0.2 m (0.656 ft.) of the rear bumper.
   • When the electrical key transmitter sub-assembly is brought near the electrical key antenna (outside luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
   • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
   • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
   • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

   OK

   Entry functions operate normally.

   Result

   Proceed to
   OK
   NG

Result:

OK

AFFECTED BY WAVE INTERFERENCE

Result:

NG

See step  5

1. Check the following antenna in key diagnostic mode.

   Body Electrical > Smart Access > Utility

   Tester Display
   Communication Check(Key Diag Mode)

2. When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage compartment), check that the wireless buzzer sounds.

   HINT:

   • Select either channel 1 or channel 2 and inspect key diagnostic mode for each channel.
   • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	0.7 to 1.0 m (2.30 to 3.28 ft.)

   Result

   Result	Proceed to
   Wireless buzzer does not sound	A
   Wireless buzzer sounds	B

Result:

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [01/2017 - 05/2023]  , or refer to  REMOVAL [05/2023 - ]

Result:

A

See step  6

1. Disconnect the X23 certification ECU (smart key ECU assembly) connector.
2. Disconnect the X48 electrical key antenna (outside luggage compartment) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X23-13 (CLG8) - X48-2 (ANTE8)	Always	Below 1 Ω
   X23-12 (CG8B) - X48-1 (CLGB)	Always	Below 1 Ω
   X23-13 (CLG8) or X48-2 (ANTE8) - Other terminals and body ground	Always	10 kΩ or higher
   X23-12 (CG8B) or X48-1 (CLGB) - Other terminals and body ground	Always	10 kΩ or higher

4. Reconnect the X23 certification ECU (smart key ECU assembly) connector.
5. Reconnect the X48 electrical key antenna (outside luggage compartment) connector.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

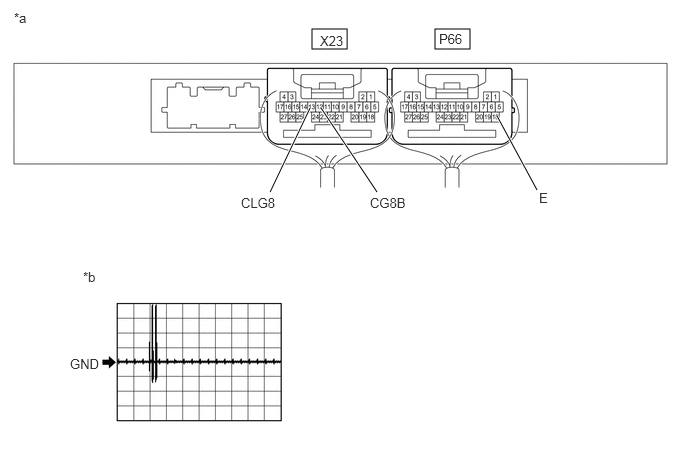

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Condition	Tool Setting	Specified Condition
   X23-13 (CLG8) - P66-18 (E)	Procedure: Power switch off Electrical key transmitter sub-assembly brought outside vehicle All doors closed Luggage electrical key switch off → on	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)
   X23-12 (CG8B) - P66-18 (E)	Procedure: Power switch off Electrical key transmitter sub-assembly brought outside vehicle All doors closed Luggage electrical key switch off → on	2 V/DIV., 500 ms./DIV.	Pulse generation (See waveform 1)

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE ELECTRICAL KEY ANTENNA (OUTSIDE LUGGAGE COMPARTMENT). Refer to  REMOVAL [01/2017 - 05/2023]  , or refer to  REMOVAL [05/2023 - ]

Result:

OK

See step  8

1. Check that the entry luggage compartment door open function operates.

   Refer to OPERATION CHECK [01/2017 - 05/2023] , or refer to OPERATION CHECK [05/2023 - ]

   Result

   Result	Proceed to
   Luggage compartment door open function operates normally	A
   Luggage compartment door open function does not operate normally	B

Result:

A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [01/2017 - 05/2023]  , or refer to  REMOVAL [05/2023 - ]

Result:

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

1. Remove the luggage electrical key switch.

   Refer to REMOVAL [01/2017 - ]

2. Inspect the luggage electrical key switch.

   Refer to INSPECTION [01/2017 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE LUGGAGE ELECTRICAL KEY SWITCH. Refer to  REMOVAL [01/2017 - ]

Result:

OK

See step  10

1. Disconnect the X23 certification ECU (smart key ECU assembly) connector.
2. Reconnect the z33 rear combination light lens and body RH connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X23-26 (TSW5) - z33-2 (UL)	Always	Below 1 Ω
   z33-1 (E) - Body ground	Always	Below 1 Ω
   X23-26 (TSW5) or z33-2 (UL) - Other terminals and body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  12

Result:

OK

See step  11

1. Connect all connectors and check that the entry luggage compartment door open function operates.

   Refer to OPERATION CHECK [01/2017 - 05/2023] , or refer to OPERATION CHECK [05/2023 - ]

   Result

   Result	Proceed to
   Luggage compartment door open function operates normally	A
   Luggage compartment door open function does not operate normally	B

Result:

A

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL [01/2017 - 05/2023]  , or refer to  REMOVAL [05/2023 - ]

Result:

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

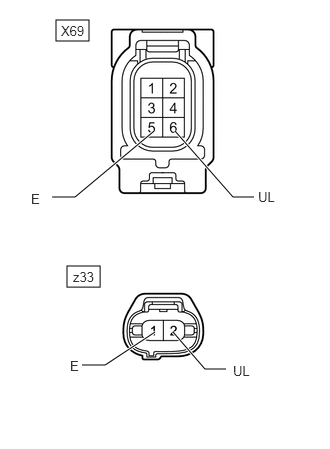

1. Remove the rear combination light lens and body RH.

   Refer to REMOVAL [01/2017 - ]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   X69-6 (UL) - z33-2 (UL)	Always	Below 1 Ω
   X69-5 (E) - z33-1 (E)	Always	Below 1 Ω

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

NG

REPLACE REAR COMBINATION LIGHT LENS AND BODY RH. Refer to  DISASSEMBLY [01/2017 - ]
