System Diagram [03/2017 - 04/2020]

Fig 1: Electronic Shift Lever System Diagram (1 Of 2)
GTY831497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

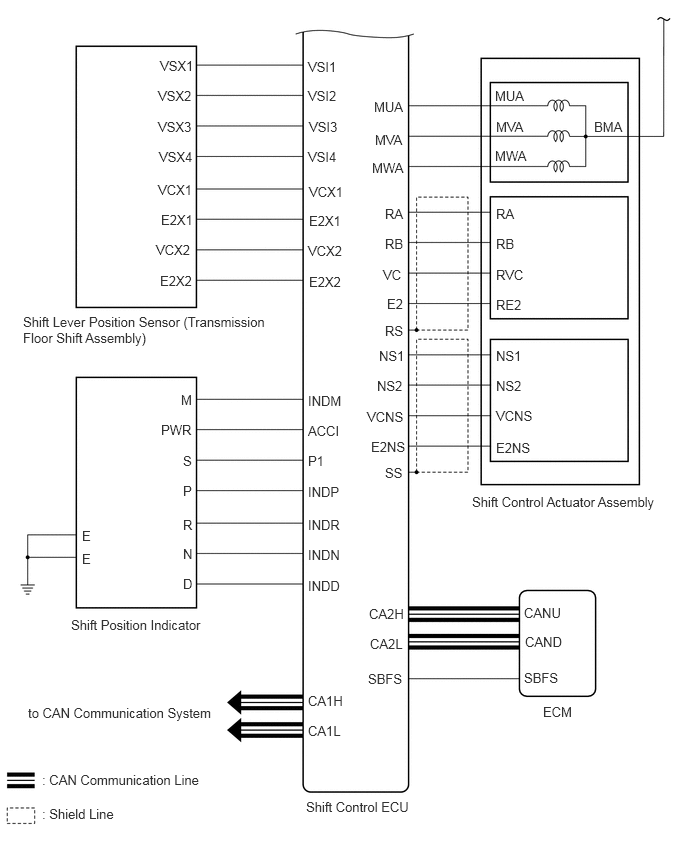

Fig 2: Electronic Shift Lever System Wiring Diagram [03/2017 - 04/2020] (2 Of 2)
GTY787898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
