Fusible Link Block Assembly No. 1 Inner Circuit

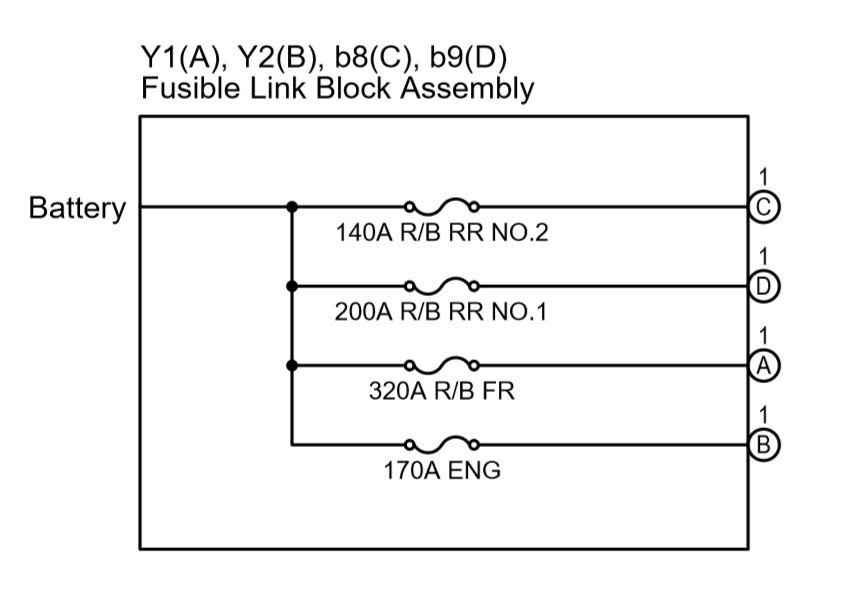

Fig 1: Fusible Link Block Assembly No. 1 Inner Circuit

G00585304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
