Components [08/2015 - ]

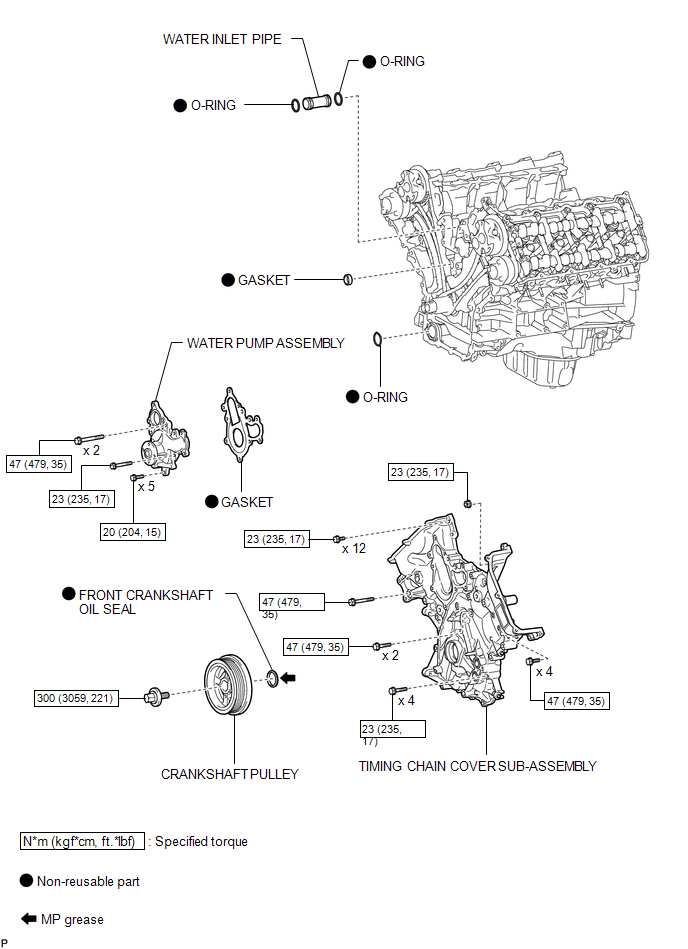

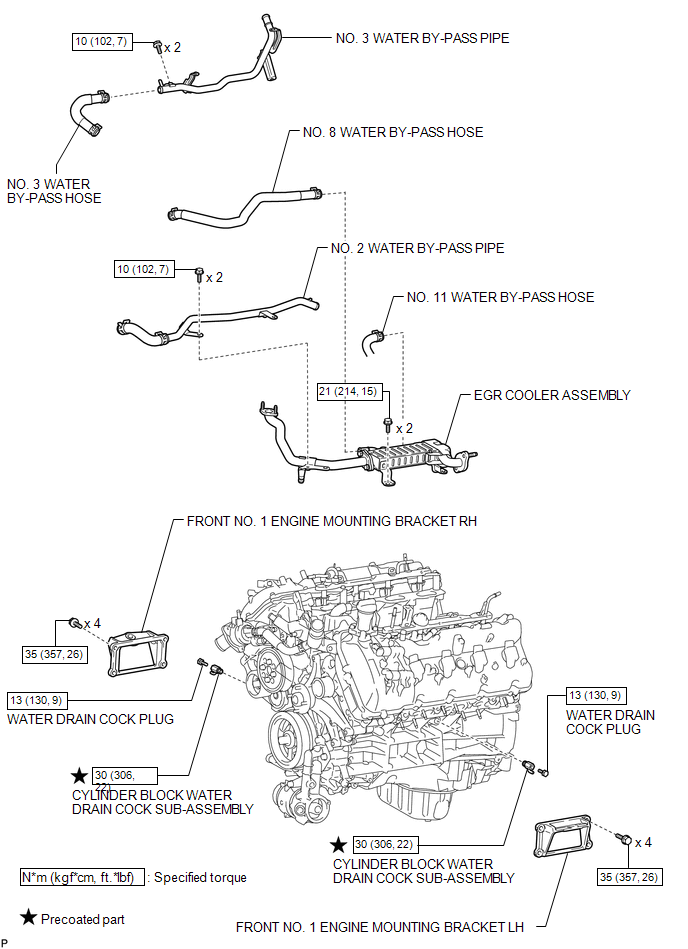

Fig 1: Engine Unit Replacement Components With Torque Specifications (1 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

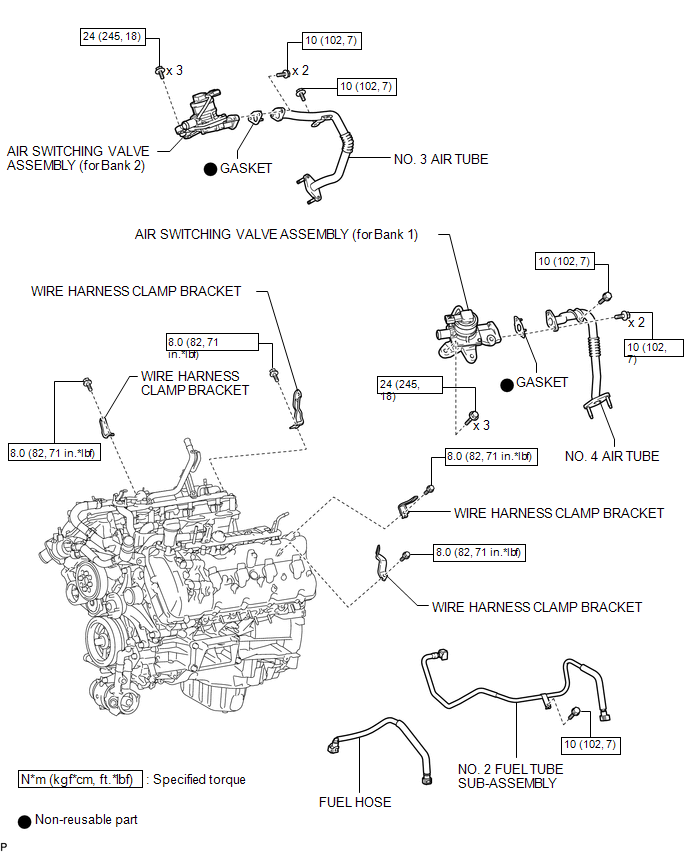

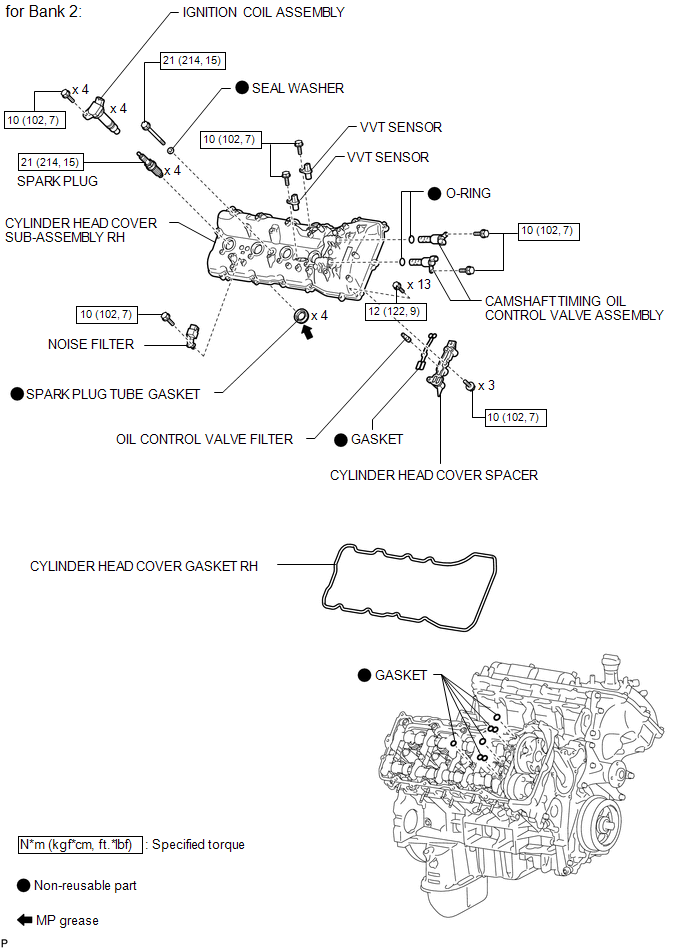

Fig 2: Engine Unit Replacement Components With Torque Specifications (2 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

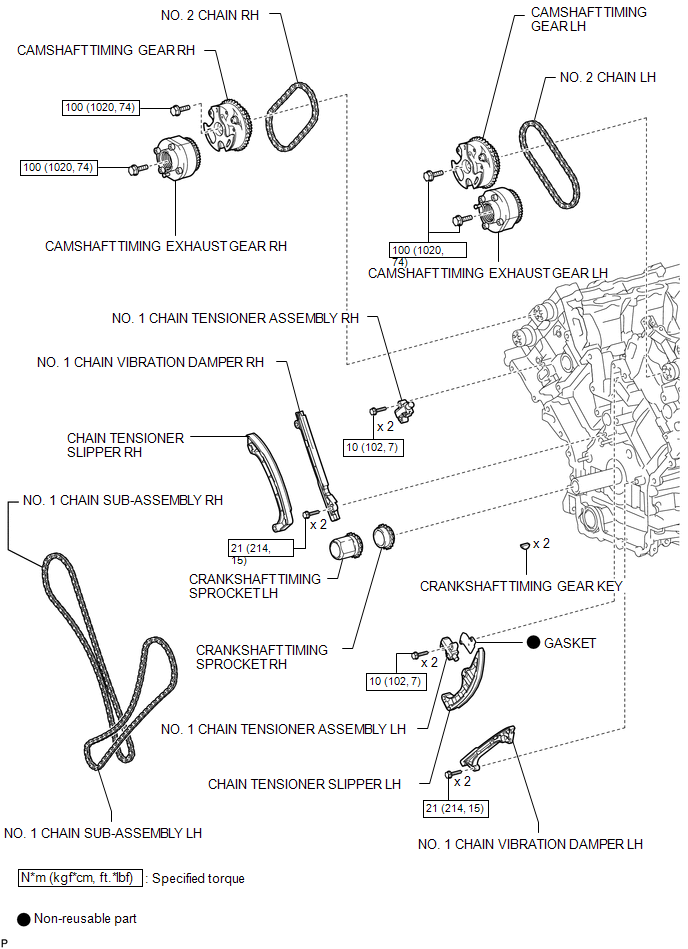

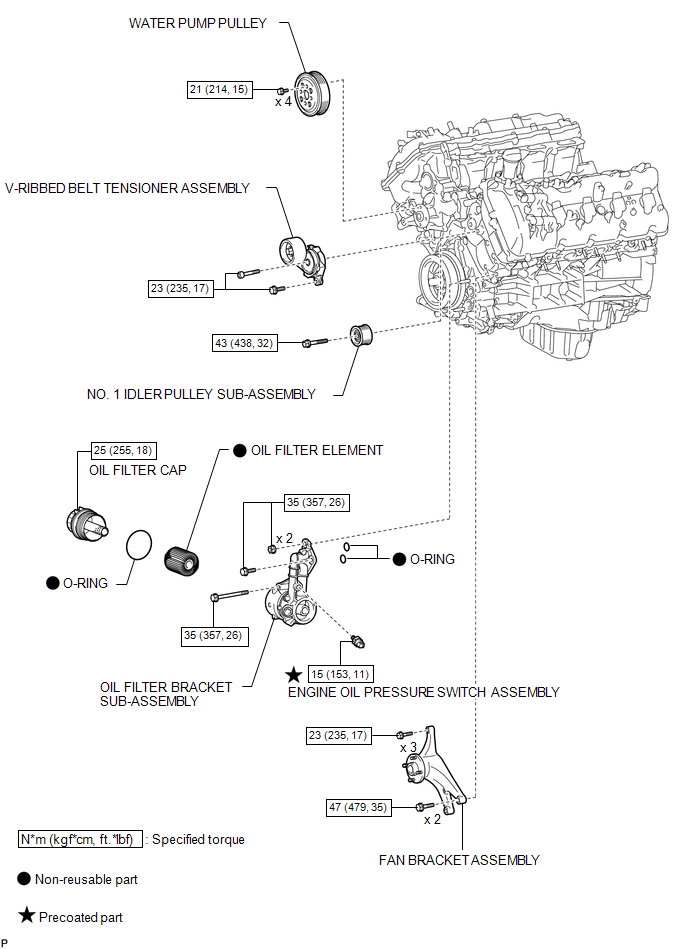

Fig 3: Engine Unit Replacement Components With Torque Specifications (3 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

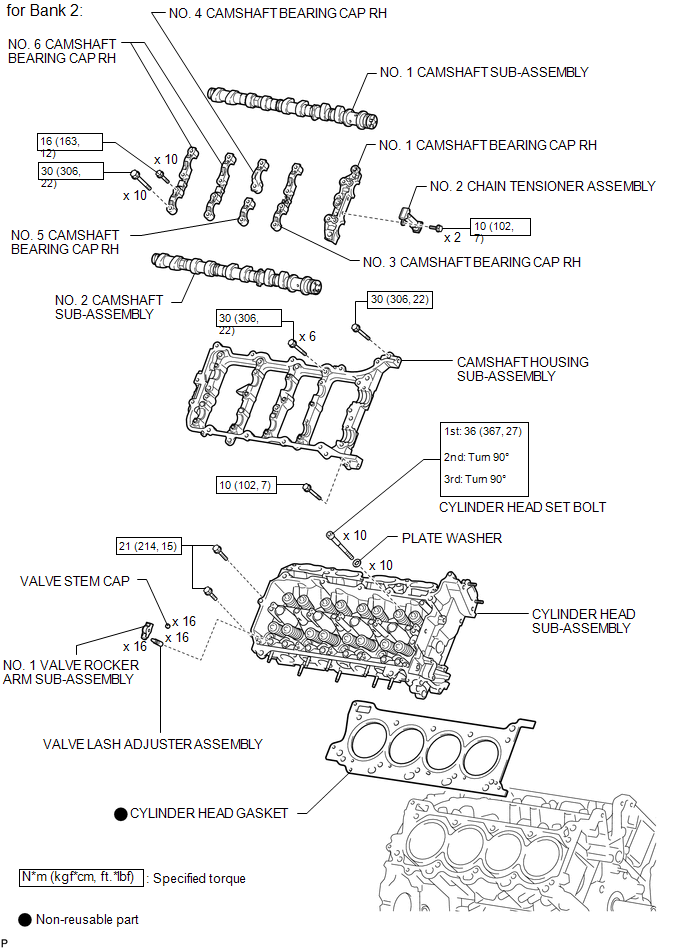

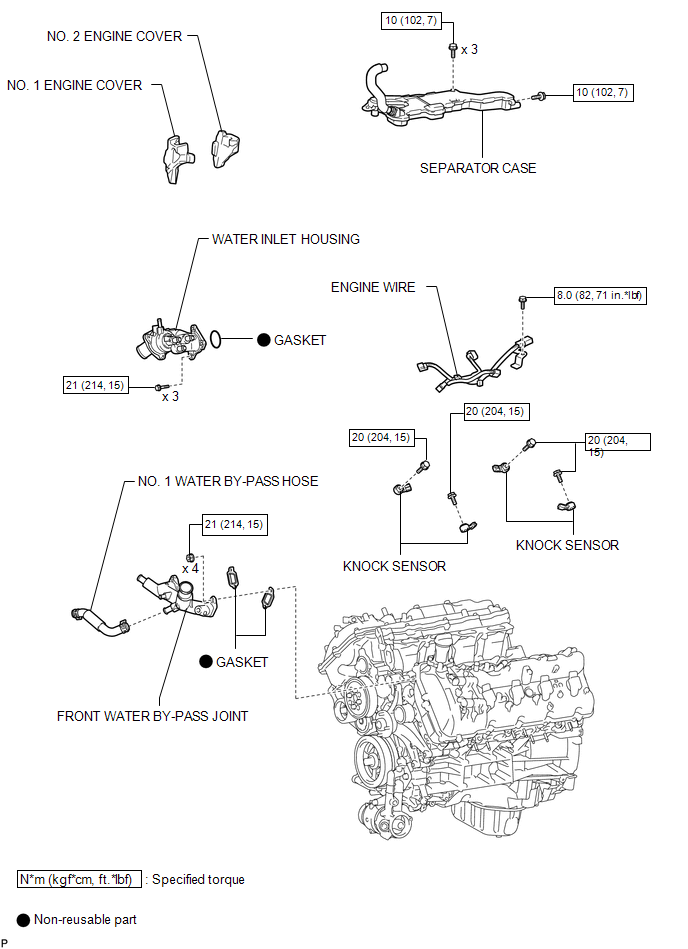

Fig 4: Engine Unit Replacement Components With Torque Specifications (4 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

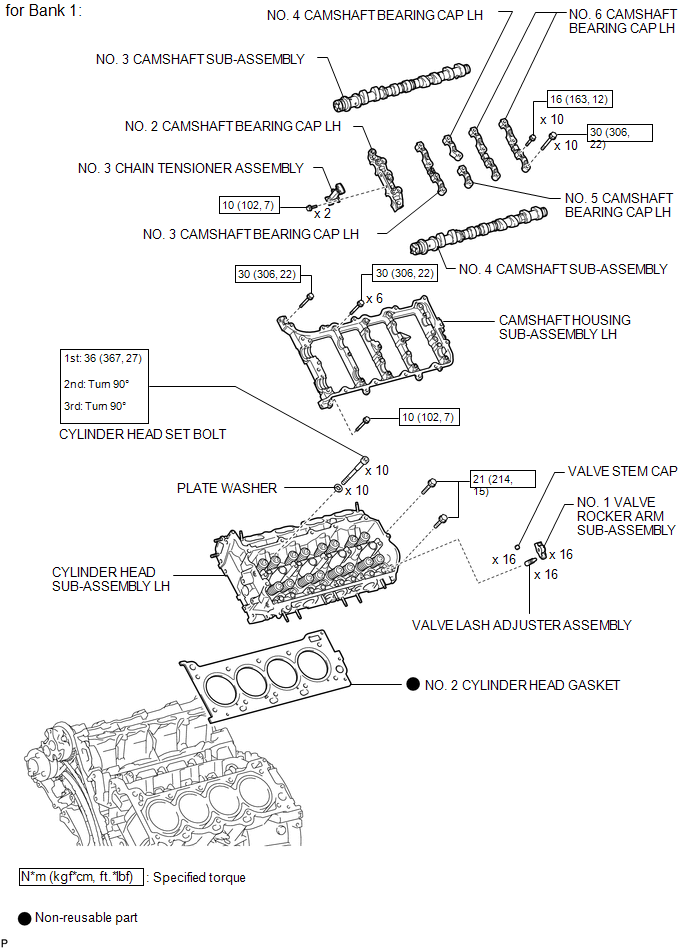

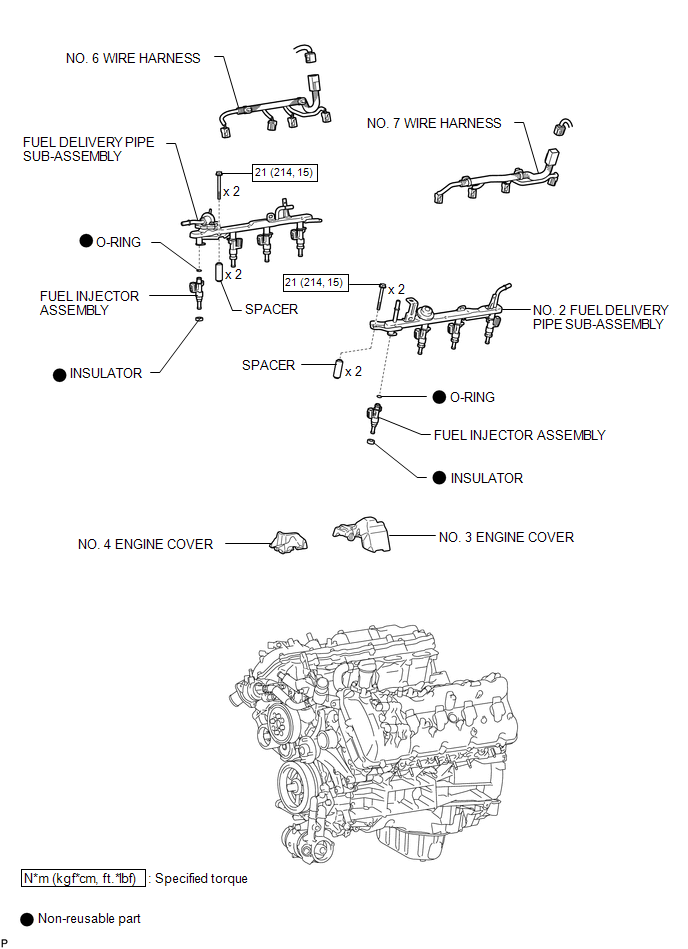

Fig 5: Engine Unit Replacement Components With Torque Specifications (5 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

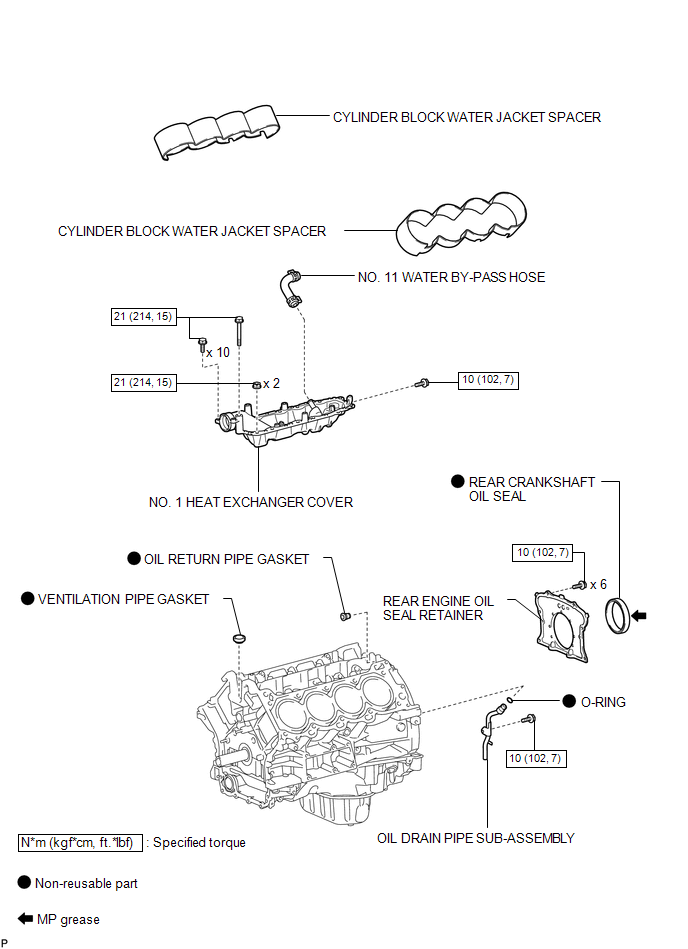

Fig 6: Engine Unit Replacement Components With Torque Specifications (6 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

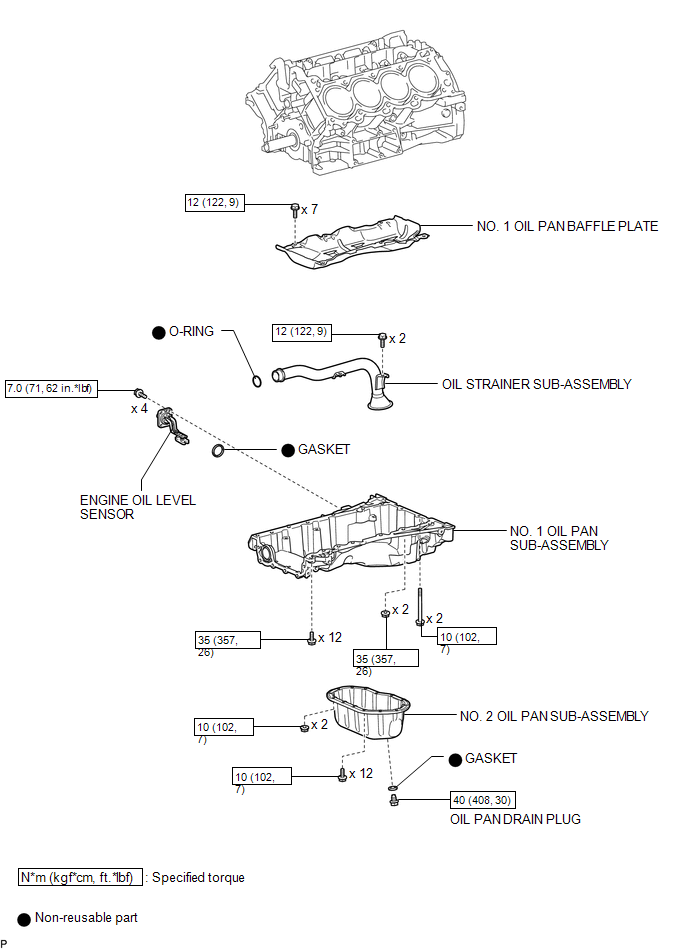

Fig 7: Engine Unit Replacement Components With Torque Specifications (7 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

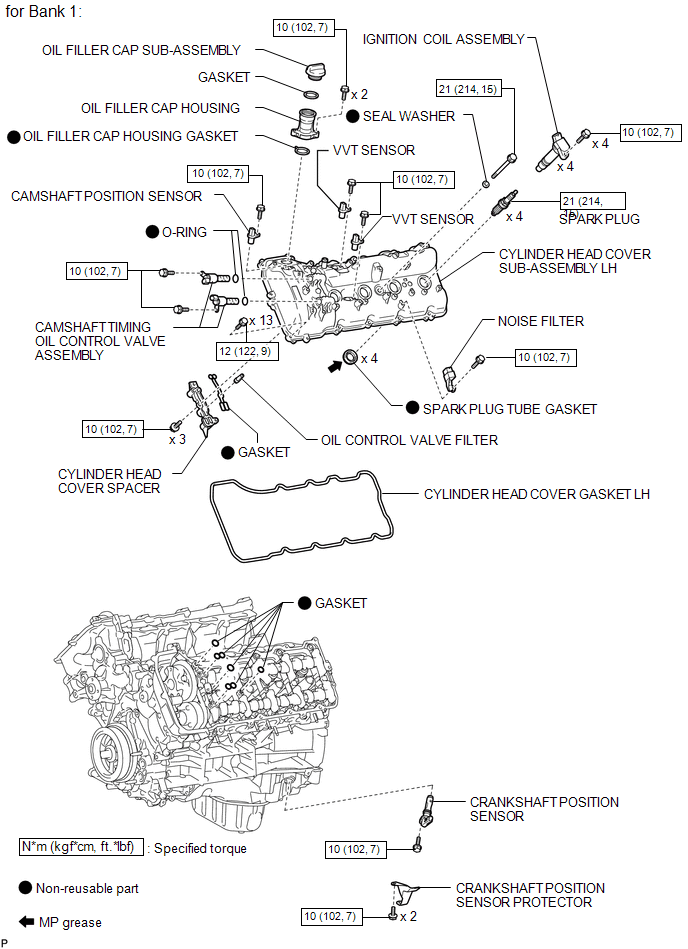

Fig 8: Engine Unit Replacement Components With Torque Specifications (8 Of 13) [08/2015 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Unit Replacement Components With Torque Specifications (9 Of 13) [08/2015 - ]

Fig 10: Engine Unit Replacement Components With Torque Specifications (10 Of 13) [08/2015 - ]

Fig 11: Engine Unit Replacement Components With Torque Specifications (11 Of 13) [08/2015 - ]

Fig 12: Engine Unit Replacement Components With Torque Specifications (12 Of 13) [08/2015 - ]

Fig 13: Engine Unit Replacement Components With Torque Specifications (13 Of 13) [08/2015 - ]
