Components [08/2015 - 08/2020]

Fig 1: Engine Assembly Replacement Components With Torque Specifications (1 Of 15) [08/2015 - 08/2020]
GTY680685Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Engine Assembly Replacement Components With Torque Specifications (2 Of 15) [08/2015 - 08/2020]
GTY627994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Engine Assembly Replacement Components With Torque Specifications (3 Of 15) [08/2015 - 08/2020]
GTY670630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Engine Assembly Replacement Components With Torque Specifications (4 Of 15) [08/2015 - 08/2020]
GTY642373Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Engine Assembly Replacement Components With Torque Specifications (5 Of 15) [08/2015 - 08/2020]
GTY680694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 6: Engine Assembly Replacement Components With Torque Specifications (6 Of 15) [08/2015 - 08/2020]
GTY670926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 7: Engine Assembly Replacement Components With Torque Specifications (7 Of 15) [08/2015 - 08/2020]
GTY676741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 8: Engine Assembly Replacement Components With Torque Specifications (8 Of 15) [08/2015 - 08/2020]
GTY630227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

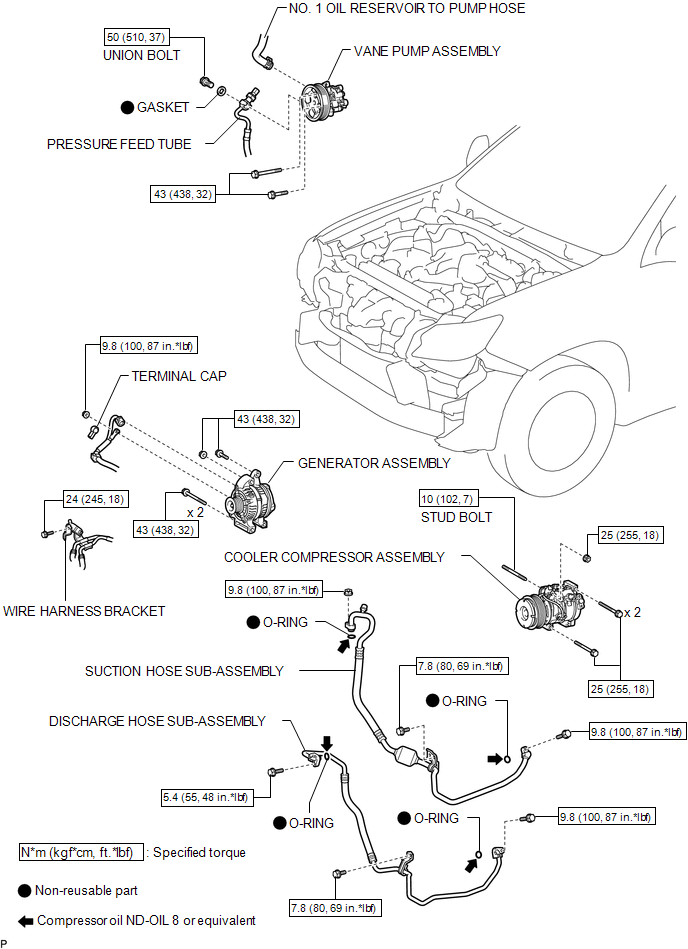

Fig 9: Engine Assembly Replacement Components With Torque Specifications (9 Of 15) [08/2015 - 08/2020]
GTY633326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 10: Engine Assembly Replacement Components With Torque Specifications (10 Of 15) [08/2015 - 08/2020]
GTY636589Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 11: Engine Assembly Replacement Components With Torque Specifications (11 Of 15) [08/2015 - 08/2020]
GTY668486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 12: Engine Assembly Replacement Components With Torque Specifications (12 Of 15) [08/2015 - 08/2020]
GTY672391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 13: Engine Assembly Replacement Components With Torque Specifications (13 Of 15) [08/2015 - 08/2020]
GTY655466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 14: Engine Assembly Replacement Components With Torque Specifications (14 Of 15) [08/2015 - 08/2020]
GTY615552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 15: Engine Assembly Replacement Components With Torque Specifications (15 Of 15) [08/2015 - 08/2020]
GTY681114Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
