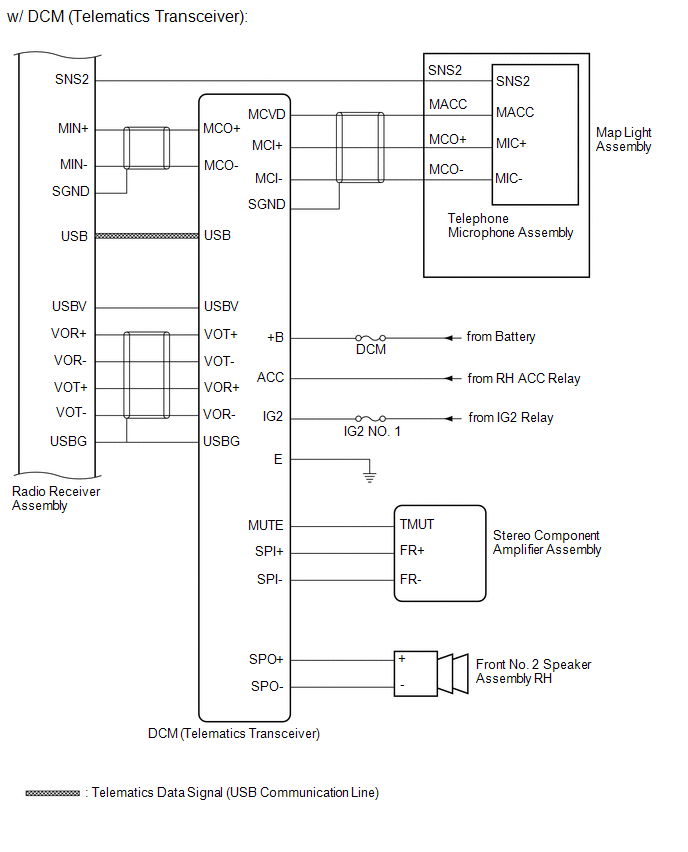

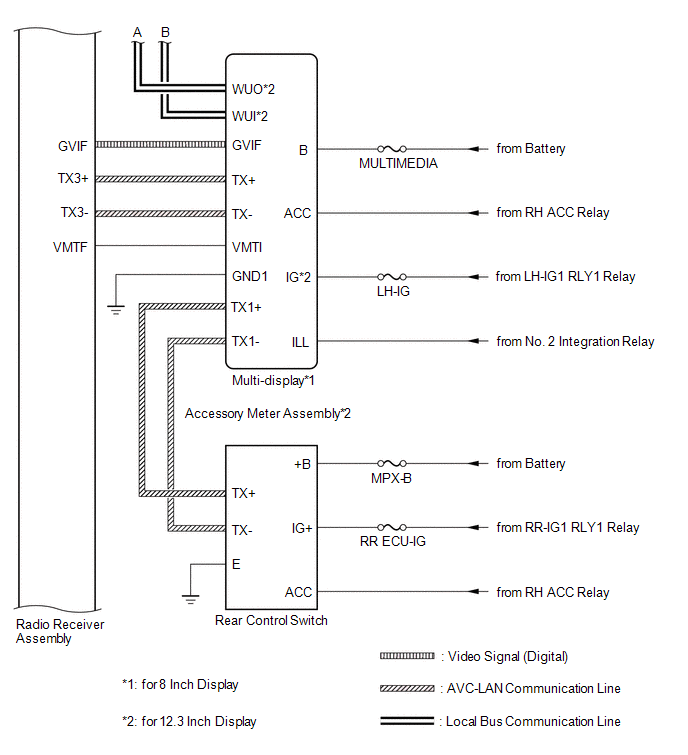

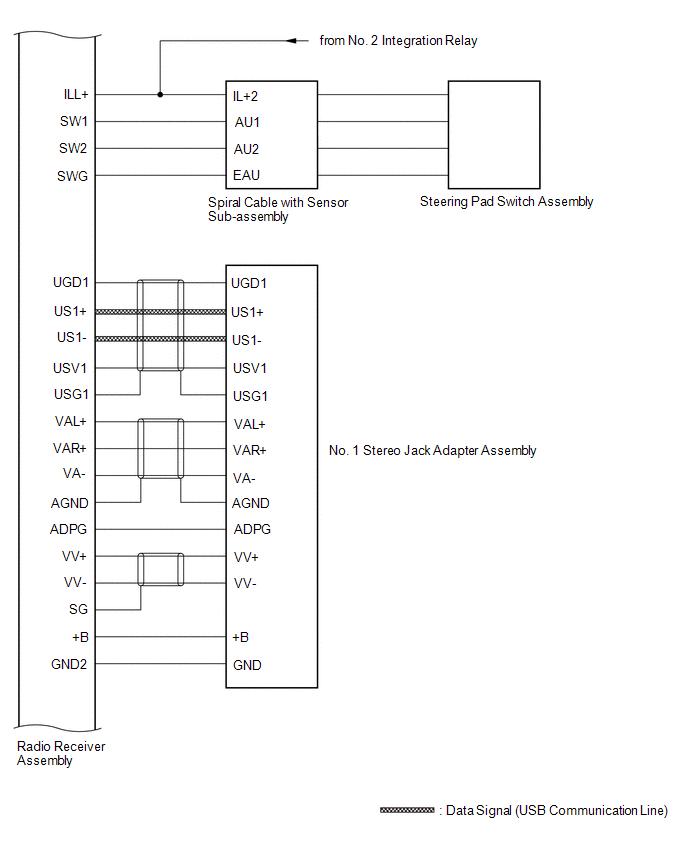

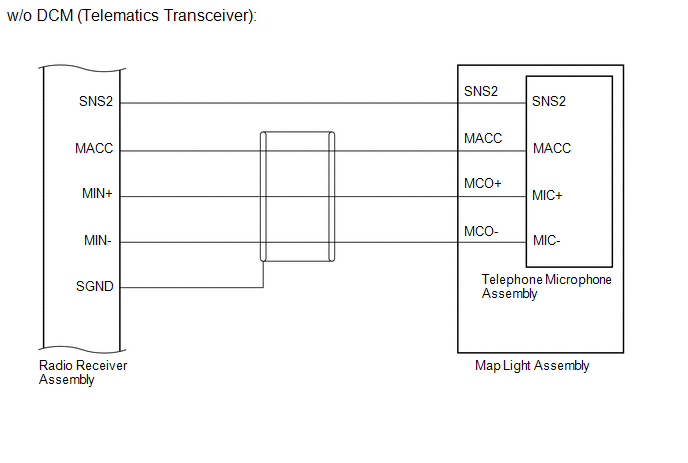

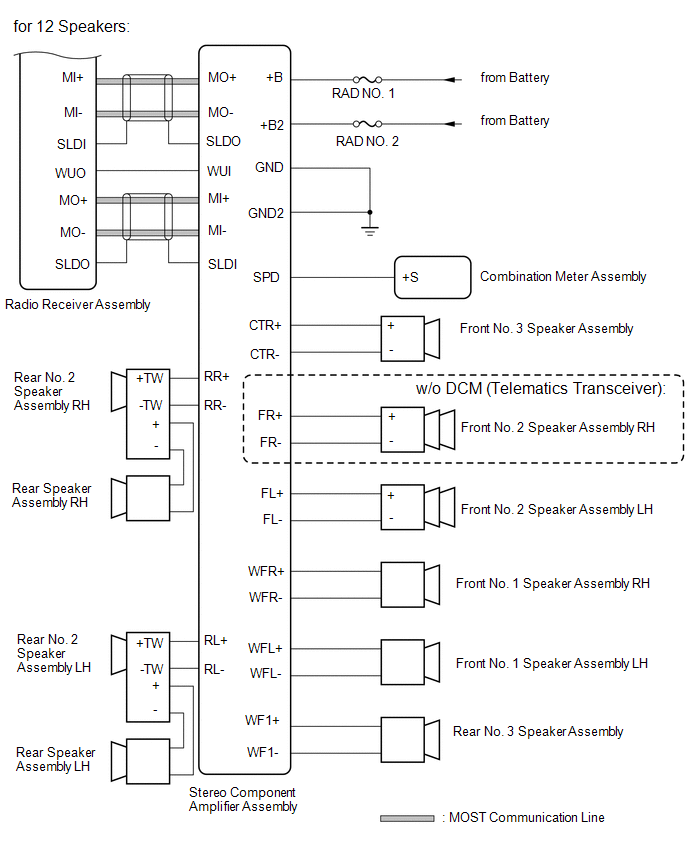

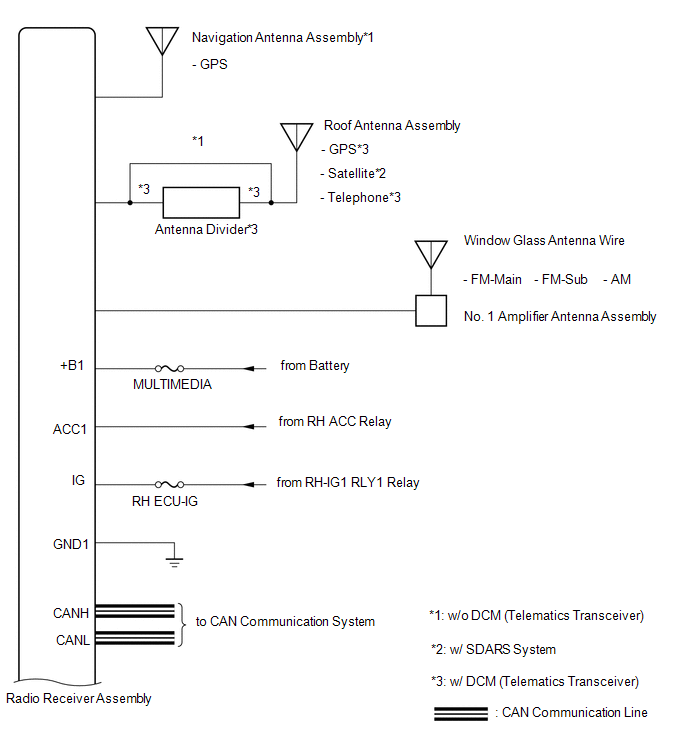

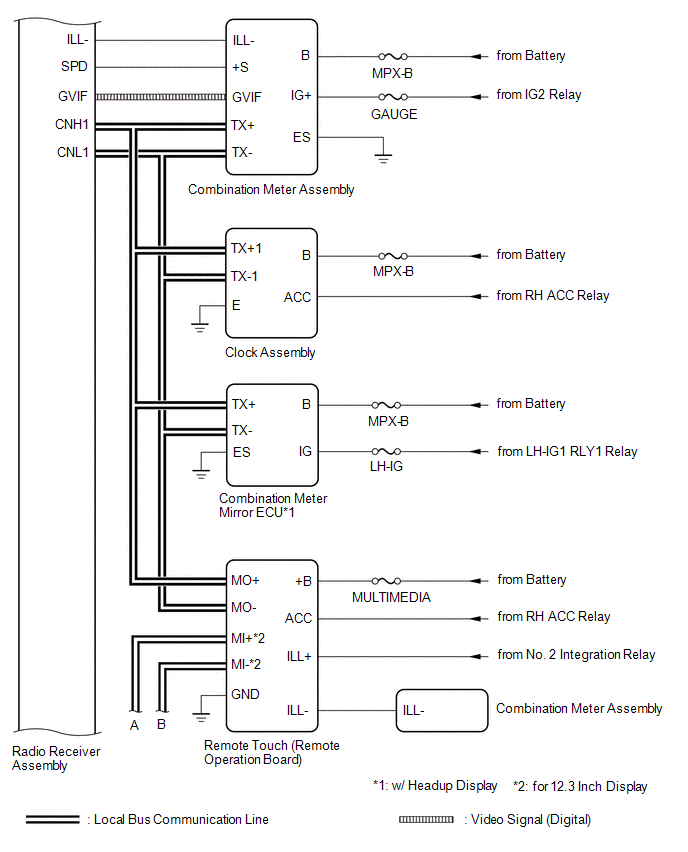

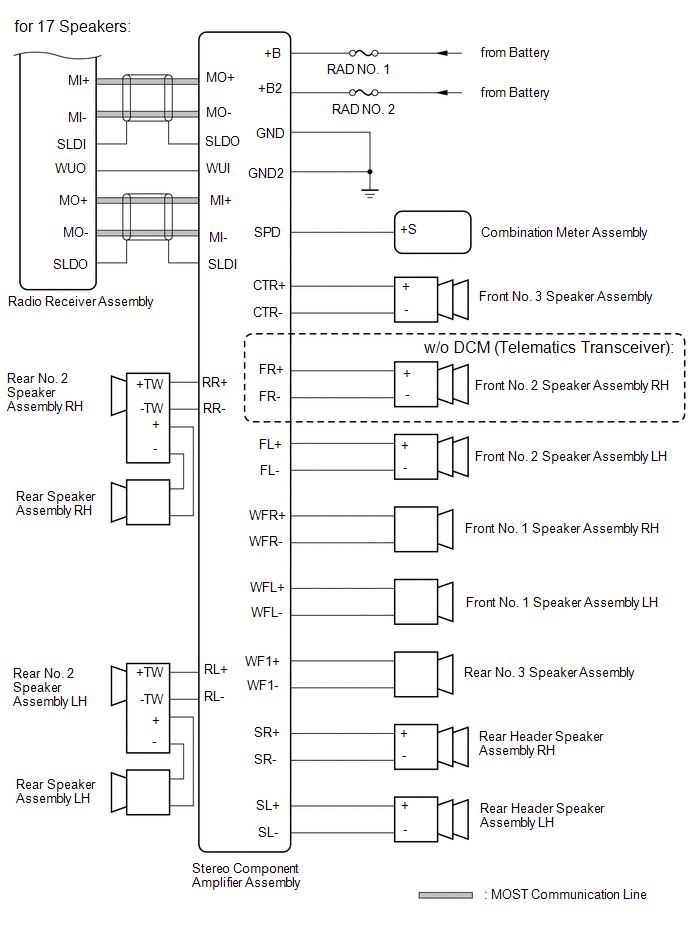

| Navigation System Circuit Diagram |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
