DTC C1A4B: Stop Light Relay Circuit [10/2015 - ]: Wiring Diagram

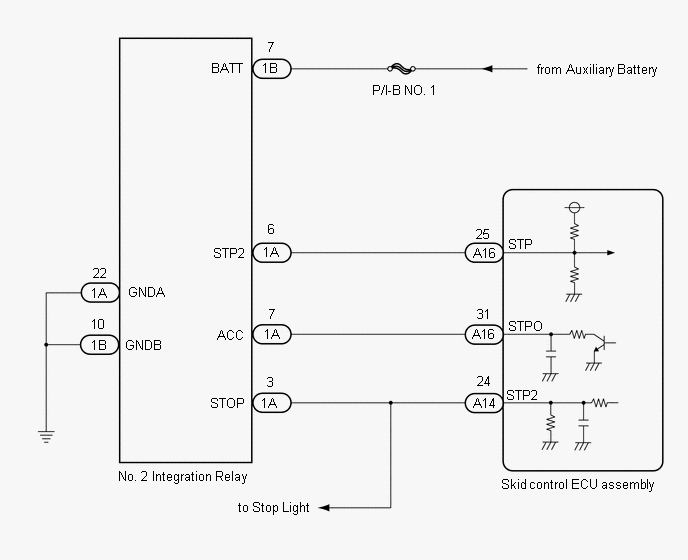

Fig 1: Light Relay Circuit Wiring Diagram

GTY536440

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
