Removal [09/2014 - ]: Procedure

PRECAUTION
NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work (Refer to PRECAUTION [09/2014 - 10/2015] or refer to PRECAUTION [10/2015 - ] ).
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
WARNING:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2014 - 10/2015] or refer to INITIALIZATION [10/2015 - ] ).

REMOVE NO. 2 RELAY BLOCK COVER

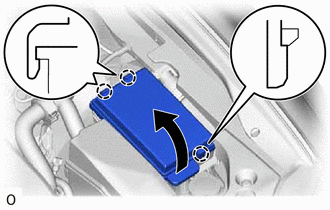

Detach the claw closer to the front of the vehicle and pull the No. 2 relay block cover in the direction shown by the arrow in the illustration to remove it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE NO. 2 INTEGRATION RELAY

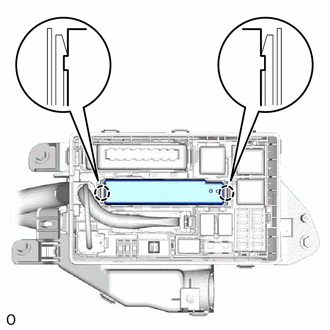

Detach the 2 claws and pull out the No. 2 integration relay.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

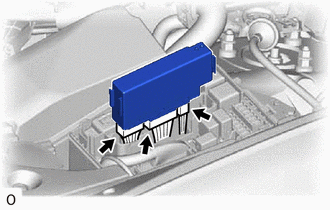

Disconnect the 3 connectors and remove the No. 2 integration relay.

NOTE:

Do not drop or allow any impact on parts.
Do not touch the connector.
