Removal [09/2014 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT UPPER ARMREST BASE PANEL LH

    Refer to PROCEDURE - Step 3

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

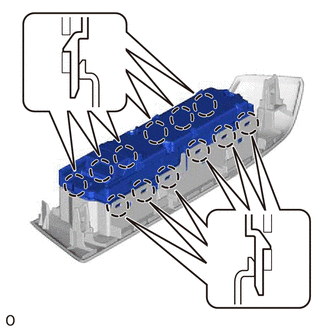

    1. Detach the 12 claws and remove the multiplex network master switch assembly.
      GTY530963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
