Installation [10/2015 - ]: Procedure

WARNING: This page is about a different car, the 2019 Lexus GS 300, 2018 Lexus GS 300, 2017 Lexus GS 200t, and 2016 Lexus GS 200t. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL HEATED OXYGEN SENSOR

HINT:

Perform "Inspection After Repairs" after replacing the heated oxygen sensor.

Refer to INITIALIZATION [10/2015 - 09/2018] or INITIALIZATION [09/2018 - ]

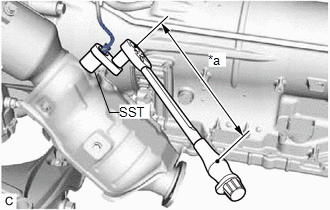

Using SST, install the heated oxygen sensor.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Torque Wrench Fulcrum Length

SST: 09224-00011

Torque

Specified tightening torque

44 N*m (449 kgf*cm, 32 ft.*lbf)

NOTE:

Replace with a new part if it is dropped or if it receives a strong impact.

HINT:

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.
Refer to PRECAUTION [10/2015 - ]
When using SST (fulcrum length of 30 mm (1.18 in.)) + torque wrench (fulcrum length of 180 mm (7.09 in.)): 37.7 N*m (384 kgf*cm, 28 ft.*lbf)

INSTALL ENGINE ASSEMBLY AND TRANSMISSION
Refer to INSTALLATION [10/2015 - ]
