Removal [10/2015 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2

  3. REMOVE INTAKE MASS AIR FLOW METER SUB-ASSEMBLY

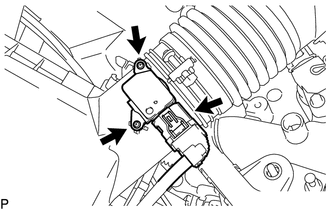

    1. Disconnect the connector from the intake mass air flow meter sub-assembly.
      GTY658575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and intake mass air flow meter sub-assembly.
