Disassembly [10/2015 - ]: Procedure

REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2 (10/2015 - 09/2016) or step 2 (09/2016 -)

REMOVE NO. 1 FUEL SUB-TANK

Disconnect the 2 fuel pump connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the fuel pump wire harness clamp.

Using needle nose pliers, remove the fuel tank pipe setting holder.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, detach the 2 claws and disconnect the jet pump nozzle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tape the screwdriver tip before use.

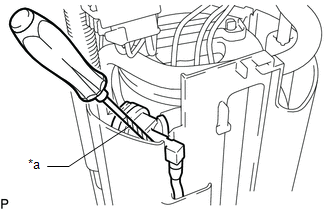

Using a screwdriver, remove the jet pump from the No. 1 fuel sub-tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape

NOTE:

The O-ring is installed firmly between the jet pump and No. 1 fuel sub-tank. Therefore, the jet pump and No. 1 fuel sub-tank should be separated carefully using a screwdriver.

HINT:

Tape the screwdriver tip before use.

Detach the 2 claws and remove the fuel filter from the No. 1 fuel sub-tank.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the spring from the fuel suction plate sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FUEL PUMP FILTER

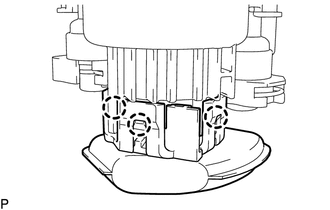

Using a screwdriver, detach the 3 claws from the holes and disconnect the fuel pump filter from the fuel filter.

HINT:

Tape the screwdriver tip before use.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Detach the claw to disconnect the fuel pump harness from the fuel pump filter.

REMOVE FUEL PUMP

Remove the fuel pump from the fuel filter.

Disconnect the fuel pump harness connector to remove the fuel pump harness from the fuel pump.

Remove the O-ring and fuel pump spacer from the fuel pump.

NOTE:

Be careful not to damage the sealing surface.

HINT:

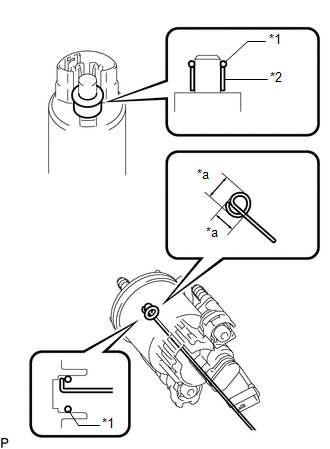

If the O-ring still remains in the fuel filter, remove it using a wire tip (1 mm diameter) that is formed as shown in the illustration.

*1	O-Ring
*2	Fuel Pump Spacer
*a	5.0 mm (0.197 in.)
