Parts Location [09/2014 - ]: Illustration

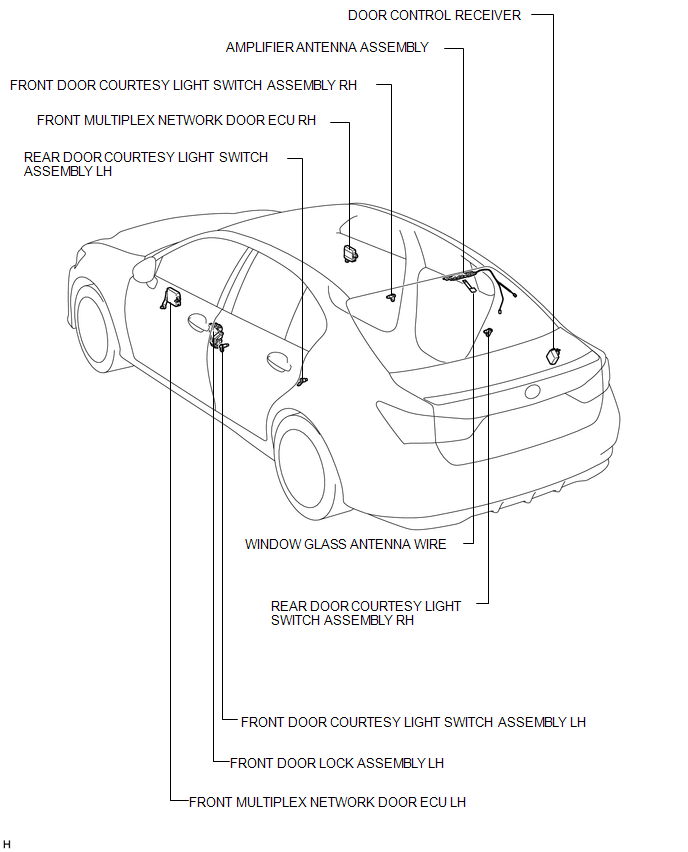

GTY527051

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

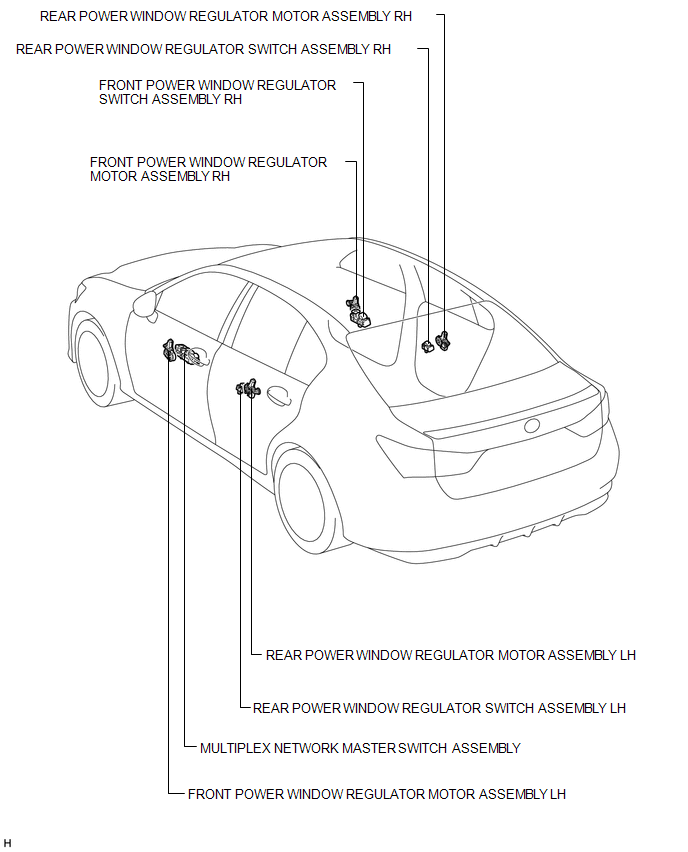

GTY395997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

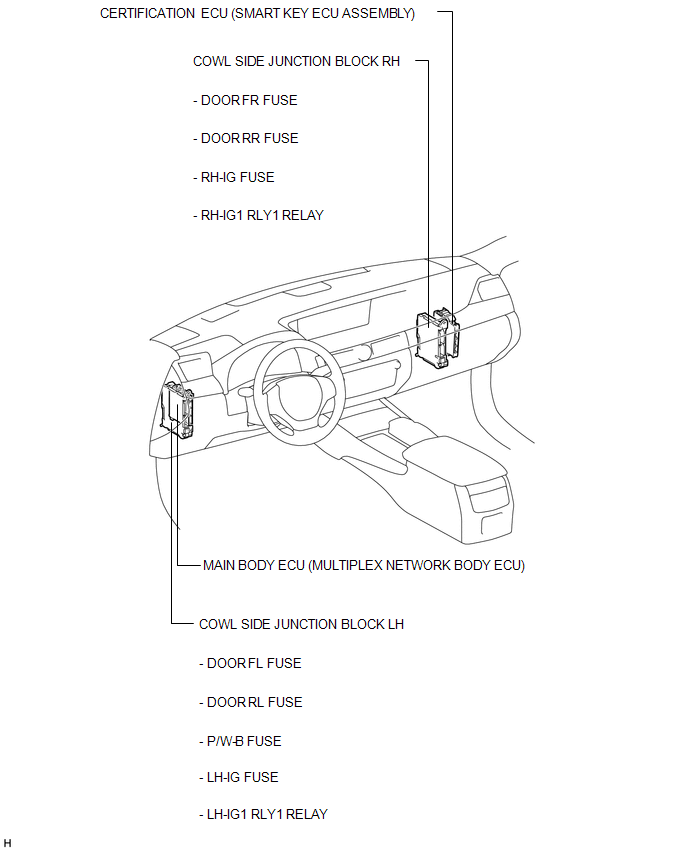

GTY404637

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
