System Description [09/2014 - 10/2015]

• *1: for 12.3 Inch
• *2: for 8 Inch

HINT:

• The audio and visual system is remotely controlled using the remote touch switch knob and switches.
• The remote touch is equipped with a feedback force function.
• When the remote touch switch knob is operated, the built-in 2-axis motors are controlled. The motors are used to provide feedback force for the knob according to the pointer operation displayed on the accessory meter assembly*1 or multi-display*2.
• The feedback force of the remote touch allows the users to select icons easily when operating the audio and visual system.

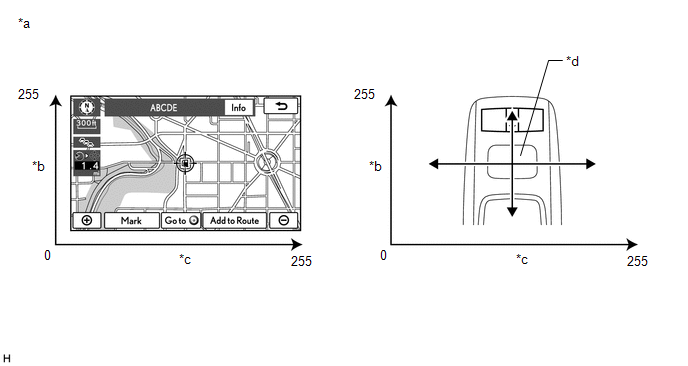

1. Remote Touch Switch Knob Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Example	*b	Longitudinal Axis
   *c	Lateral Axis	*d	Switch Knob

   1. Movement of the pointer on the accessory meter assembly*1 or multi-display*2 screen is synchronized with knob operation.

      HINT:

      • During remote touch switch knob operation, the distance that the knob moves is sent to the multi-media module receiver assembly as operational coordinates. The range of operational coordinates for the lateral and longitudinal axes is between 0 and 255.
      • The accessory meter assembly*1 or multi-display*2 also has operational coordinates that range from 0 to 255 for the lateral and longitudinal axes. The multi-media module receiver assembly displays the pointer according to the operational coordinates from the knob.

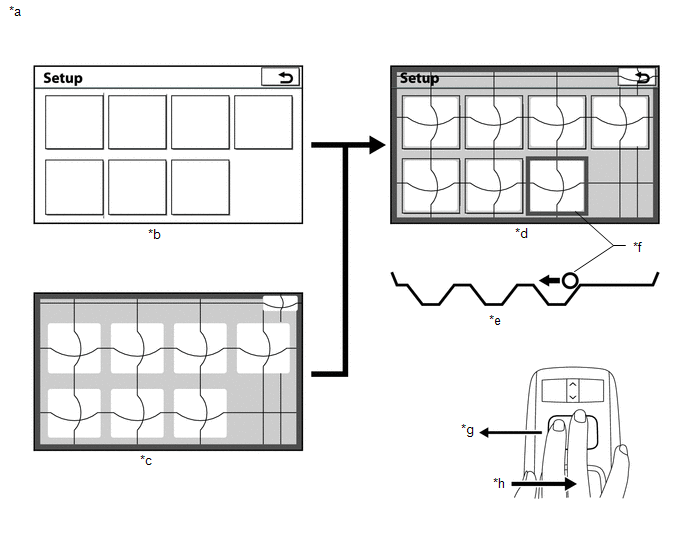

2. Remote Touch Switch Knob Feedback Force

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Example	*b	Display
   *c	Feedback Force Image Screen	*d	Screen Image
   *e	Feedback Force Image	*f	Pointer
   *g	Movement Direction	*h	Feedback Force (When Providing Resistance)

   1. The remote touch has 2 built-in motors. These motors control both lateral and longitudinal axes and generate feedback force according to remote touch switch knob operation.

      HINT:

      • There are 3 types of feedback force image areas (Icons, Frames and Others) are provided on the accessory meter assembly*1 or multi-display*2 screen. The feedback force changes depending on the area.
      • The multi-media module receiver assembly sends a feedback force request signal to the remote touch according to the pointer location displayed on the accessory meter assembly*1 or multi-display*2.
      • When the remote touch receives the feedback force request signal, the remote touch controls the motors and generates 3 types of feedback force according to the operation direction of the remote touch switch knob.
      • The strength of feedback force generated by the remote touch can be adjusted. Refer to Service Information for further information.
   2. Icon Area

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Example	*b	Display
      *c	Generated Feedback Force	*d	Switch Knob Operation
      *e	Icon	*f	Force to Pull Pointer to Center of Icon
      *g	Center of Icon	*h	Feedback Force

      HINT:

      • When the pointer comes close to an icon area, force will be provided to pull the pointer toward the center of the icon area.
      • Stronger force is provided while driving than while parked.
   3. Frame Area

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Example	*b	Frame Area
      *c	Feedback Force	-	-

      HINT:

      Frame areas are provided for the edges of all display screens. When the pointer comes close to the edge of the screen, force will be provided to move the pointer away from the edge of the screen.

   4. Other Area

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Example	*b	Generated Feedback Force
      *c	Switch Knob Operation (User Input)	*d	Fast Knob Operation (Strong Feedback)
      *e	Slow Knob Operation (Weaker Feedback)	*f	Feedback Force

      HINT:

      • When the pointer is in an area other than one of those specified, resistance will be provided that is proportional to the remote touch switch knob operation speed.
      • Stronger resistance is provided on the map screen than on other screens.

1. A disc player uses a laser pickup to read digital signals recorded on a disc. By converting the digital signals to analog, it can play music, video and audio.
   WARNING:

   Do not look directly at the laser pickup because the disc player uses an invisible laser beam. Be sure to operate the player only as instructed.

   NOTE:

   • Do not disassemble any part of the disc player.
   • Do not apply oil to the disc player.
   • Do not insert anything but a disc into the disc player.
2. This player can play only audio CDs, CD-Rs (CD-Recordable) and CD-RWs (CD-ReWritable) that have any of the following marks:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. This player can play only DVD videos that have any of the following marks:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. This player can play only DVD-Rs (DVD-Recordable) and DVD-RWs (DVD-ReWritable) that were recorded in video format and that have any of the following marks:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. The following products may not be playable on your player.
   • SACD
   • DTS CD
   • Copy-protected CD
   • Super Video CD
   • DVD audio
   • DVD-RAM
6. Precautions for use of discs
   NOTE:

   • CD-Rs and CD-RWs may not be played depending on the recording conditions or characteristics of the discs, or due to damage, dirt or deterioration caused by leaving the discs in the cabin for a long time.
   • Unfinalized CD-Rs and CD-RWs cannot be played.
   • CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs may not play.
   • If there are fingerprints or scratches on a disc, the disc may not play or the disc may skip.
   • Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
   • Keep CD-Rs and CD-RWs in an opaque case.
   • DualDiscs that mate DVD recorded material on one side with CD digital audio material on the other cannot be played.
   • Keep the discs away from dirt. Be careful not to damage the discs or leave fingerprints on them.
   • Hold discs by the outer edge and center hole with the label side up.
   • Leaving the disc exposed halfway out of the slot for a long time after pressing the disc eject button may cause deformation of the disc, making the disc unusable.
   • If discs have adhesive tape, stickers, disc labels or any traces of such labels attached, the discs may not be ejected or player malfunctions may result.
   • Keep the discs away from direct sunlight. (Exposure to direct sunlight may cause deformation of the disc, making the disc unusable.)
   • Do not use odd-shaped disc because these may cause player malfunctions.
   • Do not use discs whose recording portion is transparent or translucent because they may not be inserted, ejected or played normally.
   • Use only 4.7 in. (12 cm) disc.
   • Do not use 3 in. (8 cm) CDs either with or without adaptors.

   HINT:

   • When it is cold or raining, if the windows fog up, mist and condensation may form in the player. In such cases, the disc may skip or stop in the middle of play. Ventilate or dehumidify the cabin for a while before using the player.
   • The disc may skip if the player experiences strong vibrations when the vehicle is driven on rough roads or similar uneven surfaces.
7. Cleaning

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not use a lens cleaner because it may cause a malfunction in the pickup portion of the player.

   1. If dirt is on the disc surface, wipe it clean with a soft dry cloth such as an eyeglass cleaner for plastic lenses from the inside to the outside in a radial direction.
      NOTE:

      • Pressing on the disc by hand or rubbing the disc with a hard cloth may scratch the disc surface.
      • Use of solvents such as record spray, antistatic agents, alcohol, benzine, thinners or a chemical cloth may cause damage to the disc, making the disc unusable.

1. Playable MP3 file standards

   Compatible standard	MPEG1 LAYER3, MPEG2 LSF LAYER3
   Compatible sampling frequency	MPEG1 LAYER3: 32, 44.1, 48 (kHz) MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
   Compatible bit rate	MPEG1 LAYER3: 32 to 320 (kbps) MPEG2 LSF LAYER3: 8 to 160 (kbps) Compatible with VBR
   Compatible channel mode	Stereo, joint stereo, dual channel, monaural

2. Playable WMA file standards

   Compatible standard	WMA Ver. 7, 8 and 9
   Compatible sampling frequency	32, 44.1, 48 (kHz)
   Compatible bit rate (Only compatible with 2-channel playback)	Ver. 7, 8: CBR48 to 192 (kbps) Ver. 9: CBR48 to 320 (kbps) Compatible with VBR

3. Playable AAC file standards

   Compatible standard	MPEG4/AAC-LC
   Compatible sampling frequency	11.025, 12, 16, 22.05, 24, 32, 44.1, 48 (kHz)
   Compatible bit rate	16 to 320 (kbps) Compatible with VBR

4. ID3 tag, WMA tag and AAC tag
   1. Additional text information called an ID3 tag can be input to MP3 files. Information such as song titles and artist names can be stored.

      HINT:

      This player is compatible with ID3 tags of ID3 Ver. 1.0 and 1.1, and ID3 Ver. 2.2 and 2.3. (Number of characters complies with ID3 Ver. 1.0 and 1.1.)

   2. Additional text information called a WMA tag can be input to WMA files. Information such as song titles and artist names can be stored.
   3. Additional text information called an AAC tag can be input to AAC files. Information such as song titles and artist names can be stored.
5. Usable media
   1. Only CD-ROMs, CD-Rs (CD-Recordable), CD-RWs (CD-ReWritable) and USB device can be used to play MP3/WMA/AAC files.
      NOTE:

      • CD-Rs and CD-RWs are more easily affected by a hot and humid environment than discs used for normal audio CDs. For this reason, some CD-Rs and CD-RWs may not play.
      • If there are fingerprints or scratches on a disc, the disc may not play or the CD may skip.
      • Some CD-Rs and CD-RWs may deteriorate if they are left in the cabin for a long time.
      • Keep CD-Rs and CD-RWs in an opaque case.
6. Usable media format
   1. Usable media format

      Disc format	CD-ROM Mode 1, CD-ROM XA Mode 2 Form 1, DVD-ROM
      File format	ISO9660 Level 1 and Level 2 (Joliet, Romeo)

      HINT:

      • MP3/WMA/AAC files written in any unlisted format may not be played normally or the file names or folder names may not be displayed correctly.
      • This player is compatible with multi-session discs and can play CD-Rs and CD-RWs on which MP3/WMA/AAC files have been added. However, only the first session can be played.
      • Discs whose first session includes both music data and MP3, WMA and AAC format data cannot be played.
   2. Standards and restrictions

      Maximum directory levels	8 levels
      Maximum number of characters for a folder name/file name	32 characters
      Maximum number of folders	192 (Including empty folders, root folders, and folders that do not contain MP3/WMA/AAC files)
      Maximum number of files in a disc	255 (Including non- MP3/WMA/AAC files)

7. File names
   1. Only files with an extension of ".mp3", ".wma" and ".m4a" can be recognized and played as MP3, WMA or AAC files.
   2. Save MP3, WMA or AAC files with an extension of ".mp3", ".wma" or ".m4a".
      NOTE:

      If non-MP3, non-WMA or non-AAC files are saved with an extension of ".mp3", ".wma" or ".m4a", those files may be wrongly recognized as MP3, WMA or AAC files and played. A loud noise may occur and damage to the speakers may result.

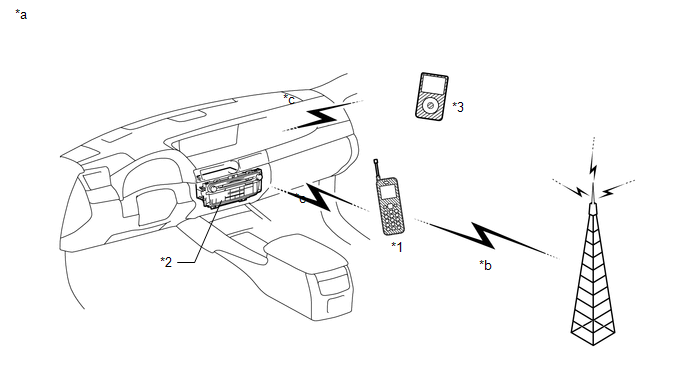

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. "Bluetooth" is a trademark owned by Bluetooth SIG, Inc.
2. "Bluetooth" is a wireless connection technology that uses the 2.4 GHz frequency band.

   HINT:

   The communication performance of "Bluetooth" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

3. Hands-free function
   1. The "Bluetooth" built-in multi-media module receiver assembly and a "Bluetooth" compatible cellular phone* can be connected using a "Bluetooth" wireless connection. This enables the use of the hands-free function on the cellular phone even if the phone is in a pocket or bag. For this reason, it is not necessary to use a connector or cable to connect the cellular phone.

      *: Some versions of "Bluetooth" compatible cellular phones may not function.

   2. Compatible hands-free devices

      Required "Bluetooth" specifications	Ver. 2.0 + EDR or higher (Ver. 3.0 or higher recommended)
      Compatible profiles	HFP (Hands Free Profile) Ver. 1.0 or higher (Ver. 1.6 or higher recommended)*1 OPP (Object Push Profile) Ver. 1.1 or higher (Ver. 1.2 or higher recommended)*1 PBAP (Phone Book Access Profile) Ver. 1.0 or higher (Ver. 1.1 or higher recommended)*1 MAP (Message Access Profile) Ver.1.0 or higher*2 SPP (Serial Port Profile) Ver. 1.1 or higher*3
      Maximum number of hands-free devices that can be registered (including audio devices)	5

      • *1: This profile is necessary when using the hands-free function.
      • *2: This profile is necessary when using the message function (w/ SMS/MMS/e-mail Function).
      • *3: This profile is necessary when using the LEXUS App Suite function.

      HINT:

      The amount of remaining battery charge displayed on the multi-media module receiver assembly may be different from that of the "Bluetooth" device.

4. "Bluetooth" audio function
   1. The "Bluetooth" built-in multi-media module receiver assembly and a "Bluetooth" compatible portable audio player* can be connected using a "Bluetooth" wireless connection. This enables files stored in the portable audio player to be heard from the vehicle speakers. In addition, operations such as play/stop can be performed directly from the multi-media module receiver assembly.

      *: Some versions of "Bluetooth" compatible audio players may not be able to operate the "Bluetooth" function, or music may play, but functions available using the multi-media module receiver assembly may be limited.

   2. Compatible "Bluetooth" audio devices

      Required "Bluetooth" specifications	Ver. 2.0 + EDR or higher (Ver. 3.0 or higher recommended)
      Compatible profiles	A2DP (Advanced Audio Distribution Profile) Ver. 1.0 or higher (Ver. 1.2 or higher recommended) AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.4 or higher recommended)
      Maximum number of audio devices that can be registered (including hands-free devices)	5

      HINT:

      The amount of remaining battery charge displayed on the multi-media module receiver assembly may be different from that of the "Bluetooth" device.

1. Radio frequency band
   1. Radio broadcasts use the radio frequency bands shown in the table below.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Service area
   1. The service areas of AM and FM broadcasts are vastly different. Sometimes an AM broadcast can be received very clearly but an FM stereo broadcast cannot. FM stereo has the smallest service area, and is prone to pick up static and other types of interference such as noise.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	FM (Stereo)
      *b	FM (Monaural)
      *c	AM

3. Radio reception problems

   HINT:

   In addition to static, other problems such as "phasing", "multipath" and "fade out" exist. These problems are not caused by electrical noise, but by the radio signal propagation method itself.

   1. Phasing

      AM broadcasts are susceptible to electrical interference and another kind of interference called phasing. Occurring only at night, phasing is the interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off the ionosphere and the other signal is received directly from the transmitter.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a	Phasing
      *b	Ionosphere

   2. Multipath

      Multipath is a type of interference created when a vehicle receives 2 radio wave signals from the same transmitter. One signal is reflected off buildings or mountains and the other signal is received directly from the transmitter.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a

      Multipath

   3. Fade out

      Fade out is caused by objects (buildings, mountains and other such large obstacles) that deflect away part of a signal, resulting in a weaker signal when the object is between the transmitter and vehicle. High frequency radio waves, such as FM broadcasts, are easily deflected by obstructions. Low frequency radio waves, such as AM broadcasts, are less likely to deflect.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      TEXT IN ILLUSTRATION



      *a

      Fade Out

4. Noise problem

   Technicians must have a clear understanding about each customer's noise complaint. Use the following table to diagnose noise problems.

   Radio Frequency	Noise Occurrence Condition	Presumable Cause
   AM	Noise occurs in a specific area	Foreign noise
   	Noise occurs when listening to an intermittent broadcast	An identical program transmitted from multiple towers can cause noise where the signals overlap
   	Noise occurs only at night	Signal phasing
   FM	Noise occurs while driving in a specified area	Multipath resulting from a change in FM frequency

1. The "HD Radio" system is a radio system that broadcasts in the IBOC (In-Band On-Channel) form that the iBiquity Co. has developed. By expanding the bandwidth per channel of conventional FM/AM bands, digital audio and data signals are additionally transmitted.

   "HD Radio" technology is manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. "HD Radio" and the HD and HD Radio logos are proprietary trademarks of iBiquity Digital Corporation.

   Information for the music currently being listened to is stored in the system and can be transmitted to an "iPod" connected to the system. The information transferred to the "iPod" can be used for purchasing the music through the "iTunes" music store. Also, traffic and weather information can be received and displayed on the audio and visual screen.

1. The Radio Broadcast Data System (RBDS) is broadcast through conventional FM radio broadcasts. Information such as song names, traffic information, broadcast station names, etc. can be received.

1. Satellite Digital Audio Radio Service (SDARS) is a satellite digital radio broadcast provided by Sirius XM Radio Inc. The broadcast (pay-type) is performed through satellites and terrestrial repeater networks. Several unique channels are available, and even if a vehicle changes locations, the same information can be received without breaks. Information such as song names, broadcast station names, etc. can be received. Also, traffic information can be received and displayed on the audio and visual screen.
   NOTE:

   To receive audio-visual pay-type broadcasts, the customer must enter into a pay-type contract with XM Satellite Radio Inc. After entering into a contract, registration of the XM Radio ID is necessary. Also, if parts are replaced, the XM Radio ID must be re-registered.

1. Description
   1. XM data broadcast service is a service*1 that allows the vehicle to receive information from the XM radio satellite and links the information to the navigation system. XM data broadcast service permits the driver to use the received information, such as weather information, sports news, fuel price information and stock information on the audio and visual system accessory meter assembly*3 or multi-display*4. The equipment for receiving this service is installed as standard.*2

      XM data broadcast service provides the following services: XM NavTraffic, XM NavWeather, XM Fuels Prices, XM Stocks and XM Sports.

      • *1: XM data broadcast service is a service available in the continental U.S., excluding Alaska and Hawaii. In addition, Canada, Mexico and unincorporated territories of the U.S. such as Puerto Rico are not included in the service area.
      • *2: The XM NavTraffic, XM NavWeather and XM Fuel Prices require separate subscriptions to receive their services. XM Stocks and XM Sports are included with the XM Radio subscription.
      • *3: for 12.3 Inch
      • *4: for 8 Inch
2. System function

   1. Component	Outline
      Multi-media module receiver assembly	Receives the XM satellite radio information signals from the XM tuner built into the multi-media module receiver assembly (distributed from the broadcast such as content information, stock price information, sports related news and weather information).
      SDARS (Satellite Radio Antenna)	Receives XM satellite radio signal.

3. Service function

   1. Service	Function
      XM NavTraffic	Displays traffic congestion information using icons, arrows and indicators on the navigation map according to the traffic information received via XM satellite radio.
      XM NavWeather	Displays weather information received via XM satellite radio. A warning message is displayed on the screen once every 2 hours. The warning indicator displayed on the screen is updated every 15 minutes. Displays weather forecasts for 3 days when a city icon on the map is pressed or when the city name is selected from the list on the screen.
      XM Stocks	Displays stock price information received via XM satellite radio. Displays up to 10 user registered stock symbols and their price information.
      XM Sports	Displays sports related news received via XM satellite radio. Allows the user to register up to 5 teams.
      XM Fuel Prices	Displays the location of gas stations and fuel prices via XM satellite radio.

1. Customization of functions can also be customized on the accessory meter assembly*1 or multi-display*2 assembly screen. Refer to Service Information for further information on customizable items for the audio and visual system.
   • *1: for 12.3 Inch
   • *2: for 8 Inch

   HINT:

   • Items available for customization via the audio and visual system can also be customized by using the Techstream.
   • Some customize parameters displayed on the Techstream will be displayed on the "Vehicle Customization" screen for the audio and visual system. Users can customize these items.

1. With a compatible Apple device connected via Bluetooth, this function allows the system to interface directly with "Siri" for voice recognition functions. The user operates the steering pad switch assembly to start the Mobile Assistant function and issues voice commands.

   HINT:

   "Siri" is trademarks of Apple Inc., registered in the U.S. and other countries.

1. The No. 1 stereo jack adapter assembly is equipped with a USB terminal. Connecting a USB memory device or "iPod" to the No. 1 stereo jack adapter assembly allows compatible files to be played Not only it is possible to play music from a USB memory device with audio functions, is also possible to play compatible music files that are stored on a USB memory. Also, the "iPod" control software is installed on the multi-media module receiver assembly, allowing song selection from the list, switching of the shuffle mode, operation of the "iPod" video, etc., from the accessory meter assembly*1 or multi-display*2 screen.
   • *1: for 12.3 Inch
   • *2: for 8 Inch

   HINT:

   Operation through the controls of a USB device or "iPod" cannot be performed while it is connected.

2. Playable music files
   1. Playable music file standards are equivalent with the standards of the music files that can be played on the disc player.
3. Playable video files
   1. Playable video file standards
      MPEG4



      Compatible file extensions	.mp4.m4v
      Compatible video standards	H. 264 (AVC), MPEG4
      Compatible audio standards	AAC, MP3
      Compatible image size	720 X 576 or less

      AVI



      Compatible file extensions	.avi
      Compatible video standards	H. 264 (AVC), MPEG4
      Compatible audio standards	AAC, MP3, WMA
      Compatible image size	720 X 576 or less

      WMV



      Compatible file extensions	.wmv
      Compatible video standards	WMV9, WMV9 Advanced Profile
      Compatible audio standards	WMA 7 8 9(9.1 9.2), MP3
      Compatible image size	720 X 576 or less

4. USB audio system compatible devices
   1. USB device

      The following device formats can be used:

      Compatible USB device formats

      USB communication format: USB 2.0 HS (480 Mbps) and FS (12 Mbps) File format: FAT16/32 (Windows) Class: Mass storage class

      MP3, WMA, AAC, MP4, WMV and AVI files written in any format other than those listed above may not play correctly, and their names and folder names may not be displayed correctly.

      Items related to standards and limitations are as follows:

      • Maximum directory hierarchy: 8 levels
      • Maximum number of folders in device: 3000 (including the root folder)
      • Maximum number of files in device: 9999
      • Maximum number of files per folder: 255
   2. "iPod"

      "iPhone", "iPod", "iPod classic", "iPod nano" and "iPod touch" are trademarks of Apple Inc., registered in the U.S. and other countries.

      The following "iPod", "iPod nano", "iPod classic", "iPod touch" and "iPhone" devices can be used with this system.

      Made for:

      • "iPod touch" (5th generation)
      • "iPod touch" (4th generation)
      • "iPod touch" (3rd generation)
      • "iPod touch" (2nd generation)
      • "iPod touch" (1st generation)
      • "iPod classic"
      • "iPod with video"
      • "iPod nano" (7th generation)
      • "iPod nano" (6th generation)
      • "iPod nano" (5th generation)
      • "iPod nano" (4th generation)
      • "iPod nano" (3rd generation)
      • "iPod nano" (2nd generation)
      • "iPod nano" (1st generation)
      • "iPhone 5"
      • "iPhone 4S"
      • "iPhone 4"
      • "iPhone 3GS"
      • "iPhone 3G"
      • "iPhone"

      HINT:

      • Depending on differences between models or software versions etc., some models might be incompatible with this system.
      • "iPod touch" (5th generation), "iPod nano" (7th generation) and "iPhone 5" screens cannot be displayed in iPod-video mode on the multi-media module receiver assembly.

1. An image can be copied from a USB device. The image can be used as the startup image or screen off image of the audio and visual system.

1. The Automatic Sound Levelizer (ASL) function automatically adjusts the audio system volume level in order to compensate for increased vehicle noise (vehicle noise tends to increase as vehicle speed increases). The ASL adjusts the volume level based upon vehicle speed signals that it receives from the combination meter assembly.

1. The audio and visual system has a diagnostic function (the result is indicated on the master unit).

1. "Wi-Fi" is a worldwide wireless communication standard widely used as a short range communication tool.
2. "Wi-Fi" is a trademark owned by Wi-Fi Alliance, a non-profit industry association.
3. The multi-media module receiver assembly uses the 2.4 GHz frequency band for "Wi-Fi" communication.

   HINT:

   The communication performance of "Wi-Fi" may vary depending on obstructions or radio wave conditions between communication devices, electromagnetic radiation, communication device sensitivity or antenna capacity.

1. MOST Network Outline

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Audio and visual system components communicate with each other via the MOST network.
   2. The MOST network uses a shielded twisted pair of wires for its communication lines.
   3. The master unit of the MOST network is the multi-media module receiver assembly.
   4. MOST communication lines connect each slave unit centering around the master unit to form a MOST network ring.
   5. The master unit sends a wake-up signal to activate each slave unit connected to the MOST network.

      HINT:

      If a short or open circuit occurs in the MOST circuit, communication will be interrupted and the system will not operate normally.

2. AVC-LAN Outline

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

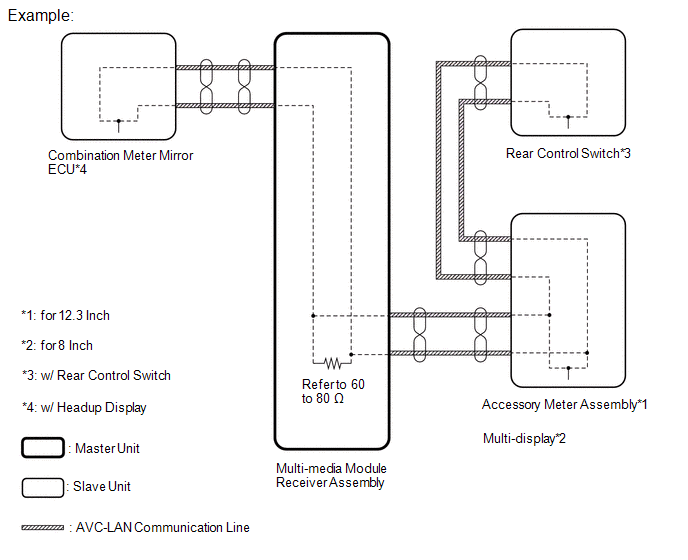

   1. Components of the audio and visual system communicate with each other via the AVC-LAN.
   2. The AVC-LAN uses a twisted pair of wires for its communication lines.
   3. The master unit of the AVC-LAN is the multi-media module receiver assembly.

      HINT:

      • The multi-media module receiver assembly has the resistance (60 to 80 Ω) necessary for communication.
      • If a short or open circuit occurs in the AVC-LAN circuit, communication is interrupted and the system will not operate normally.
3. Local Bus Outline

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Components of the audio and visual system communicate with each other via the Local Bus.
   2. The Local Bus uses a twisted pair of wires for its communication lines.
   3. The master unit of the Local Bus is the multi-media module receiver assembly.

      HINT:

      • The multi-media module receiver assembly has the resistance (108 to 132 Ω) necessary for communication.
      • The remote touch have the resistance (108 to 132 Ω) necessary for communication.
      • If a short or open circuit occurs in the Local Bus circuit, communication is interrupted and the system will not operate normally.
