Diagnosis System [07/2015 - 08/2016]

ECUS OR SENSORS WHICH COMMUNICATE THROUGH CAN COMMUNICATION SYSTEM
1. V Bus
  1. Combination meter assembly
  2. Power steering ECU with motor assembly
  3. Main body ECU (Multiplex network body ECU)
  4. Steering sensor
  5. Airbag sensor assembly
  6. ECM
  7. Brake actuator assembly (Skid control ECU)
  8. Air conditioning amplifier assembly
  9. Certification ECU (Smart key ECU assembly)
  10. Radio receiver assembly*1*2
  11. Clearance warning ECU assembly*3
  12. DCM (Telematics transceiver)*4
  13. Headlight leveling ECU (Headlight swivel ECU assembly)*5
  14. Headlight swivel ECU assembly*10
2. Sub Bus 1
  1. Main body ECU (Multiplex network body ECU)
  2. Outer mirror control ECU assembly (for Driver side)*11
  3. Outer mirror control ECU assembly (for Front passenger side)*11
  4. Front power seat switch LH*6
  5. Front power seat switch RH*6
  6. Multiplex tilt and telescopic ECU*7
  7. Luggage closer motor assembly*8
  8. Rear television camera assembly*9
    HINT:

    *1: for Navigation Receiver Type

    *2: for Radio and Display Type

    *3: w/ Intuitive Parking Assist System

    *4: for Lexus Enform Remote Compatible Type

    *5: w/ Automatic Headlight Beam Level Control System

    *6: w/ Seat Position Memory System

    *7: w/ Power Tilt and Power Telescopic Steering Column System

    *8: w/ Power Trunk Lid System

    *9: except Radio and Display Type (w/ Parking Assist Monitor System with Parallel Parking Assist Function)

    *10: w/ Adaptive Front-lighting System

    *11: w/ Reverse Shift-linked Mirror

CHECK FOR INSTALLED SYSTEMS (ECUS AND SENSORS) THAT ADOPT CAN COMMUNICATION

The systems (ECUs and sensors) that adopt CAN communication vary depending on the vehicle and optional equipment. Check which systems (ECUs and sensors) are installed on the vehicle.

HINT:

The names of ECUs and sensors shown on the Techstream display may differ from those shown in the DTC Table by ECU section.

ECU/Sensor Name	Techstream Display	Applicability
ECM	ECM (Engine)	Installed on all vehicles
Combination meter assembly	Combination Meter	Installed on all vehicles
Main body ECU (Multiplex network body ECU)	Main Body	Installed on all vehicles
Power steering ECU with motor assembly	Power Steering (EPS)	Installed on all vehicles
Brake actuator assembly (Skid control ECU)	Skid Control (ABS/VSC/TRAC)	Installed on all vehicles
Steering sensor	Spiral cable (Steering Angle Sensor)	Installed on all vehicles
Airbag sensor assembly	Airbag	Installed on all vehicles
Certification ECU (Smart key ECU assembly)	Certification (Smart)	Installed on all vehicles
Air conditioning amplifier assembly	Air Conditioning Amplifier	Installed on all vehicles
Headlight leveling ECU (Headlight swivel ECU assembly) Headlight swivel ECU assembly	Headlight swivel (AFS)	Vehicles with Automatic Headlight Beam Level Control System Vehicles with Adaptive Front-lighting System
Radio receiver assembly	Display and Navigation (AVN1)	Vehicles with navigation receiver Vehicles with radio and display
DCM (Telematics transceiver)	DCM	Vehicles with Lexus Enform Remote
Clearance warning ECU assembly	Clearance warning (Intuitive Parking Assist1)	Vehicles with Intuitive Parking Assist Sensor System
Outer mirror control ECU assembly (for Driver side)	Front Door LH/L-Mirror (FL-Door2/L-Miror)	Vehicles with Reverse Shift-linked Mirror
Outer mirror control ECU assembly (for Front passenger side)	Front Door RH/R-Mirror (FR-Door2/R-Miror)	Vehicles with Reverse Shift-linked Mirror
Front power seat switch LH	D-Seat	Vehicles with Seat Position Memory System
Front power seat switch RH	P-Seat	Vehicles with Seat Position Memory System
Multiplex tilt and telescopic ECU	Multiplex Tilt and Telescopic	Vehicles with Power Tilt and Power Telescopic Steering Column System
Luggage closer motor assembly	Back Door	Vehicles with Power Trunk Lid System
Rear television camera assembly	Parking Assist Monitor System3	Vehicles with navigation receiver or radio and display (w/ parking assist monitor system without parallel parking assist function)

CAN BUS CHECK

HINT:

The ECUs and sensors that are properly connected to the CAN communication system can be displayed using the Techstream.

Using the Techstream, select CAN Bus Check screen.

NOTE:

It may be possible to select buses that do not have ECUs or sensors from the bus selection pull-down menu. This is not a malfunction. (This occurs when optional devices are not on a sub bus that is monitored by a gateway function equipped ECU.)
In the bus selection pull down menu, all buses applicable to the model are displayed (e.g. LIN communication buses are also displayed). Therefore, refer to the wiring diagrams to check the names of sub buses for CAN communication. Refer to SYSTEM DIAGRAM [07/2015 - ]

HINT:

Different connection statuses are indicated by the background color of ECUs and sensors that are displayed.

EXPLANATION OF CAN BUS CHECK SCREEN

Bus Type	Background Color	Connection Status
V Bus	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Sub bus (gateway function equipped ECU that does not have history of connected ECUs)*2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Sub bus (gateway function equipped ECU that has history of connected ECUs)*3	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Currently not communicating (either of the following): Communication stop has continued since the start of the CAN bus check. Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring.
	Not displayed	Either of the following: If a gateway function equipped ECU cannot communicate, the sub bus and ECUs connected to the sub bus will not be displayed. If no ECUs are connected to the sub bus, "There is no system found on the Communication Bus" will be displayed.

HINT:

Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
*1: ECUs that are present in the vehicle but are not displayed on the CAN Bus Check screen.
*2: Gateway function equipped ECU that does not memorize the sub bus ECUs that are connected to it.
*3: Gateway function equipped ECU that memorizes the sub bus ECUs that are connected to it.
If none of the connected ECUs are displayed, or there is no response from the vehicle to the Techstream, check the DLC3 branch and the V bus main bus lines for a malfunction.

Observe the connection response screen for approximately 2 minutes to check for a change in connection status of the connected ECUs and sensors.
HINT:
- If an open occurs in one of the lines of a CAN branch (except DLC3), output from the other branch line (the line that is not open) will be unstable and it may interfere with the response (display) of other ECUs and sensors.
- If the connection status changes during the inspection, repair the open in the branch line of the ECU or sensor that does not respond (is not detected) and then perform the CAN bus check again.

HOW TO INTERPRET CAN BUS CHECK SCREEN

When a communication stop is currently occurring, the probable malfunctioning part can be determined from the CAN bus check and by using the following methods.
NOTE:

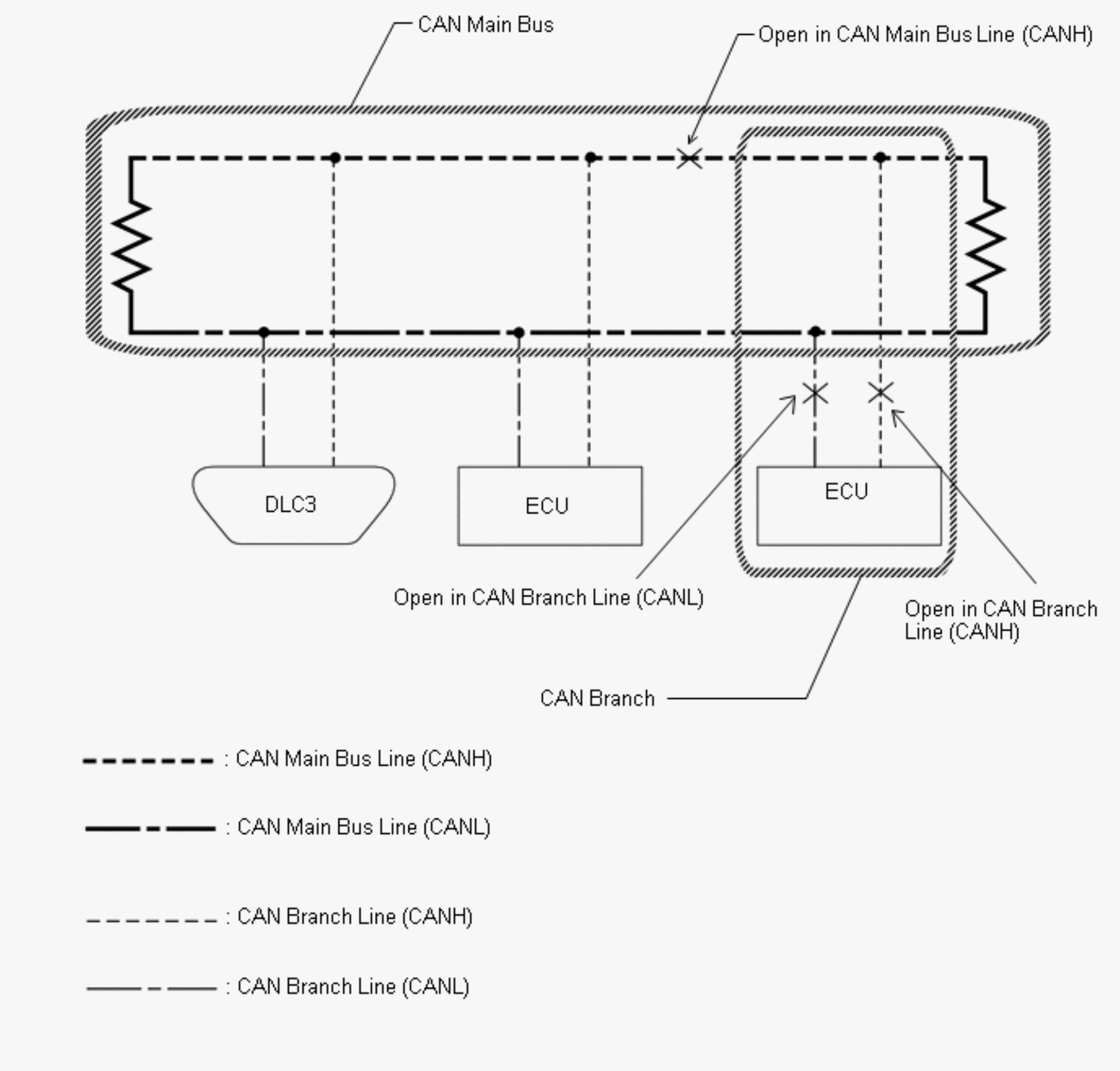

The following CAN bus wiring diagram is provided only as an example. This wiring diagram is different from the actual wiring diagram for this vehicle.

HINT:
- When a communication stop is currently occurring, it is easier to determine the probable malfunctioning part from the CAN bus check rather than from communication DTCs.
- Wait for approximately 2 minutes after turning the engine switch on (IG) (or simulate the driving conditions that enable the malfunction to be reproduced) and select the CAN bus check. Then observe the communication status of each ECU on the screen.

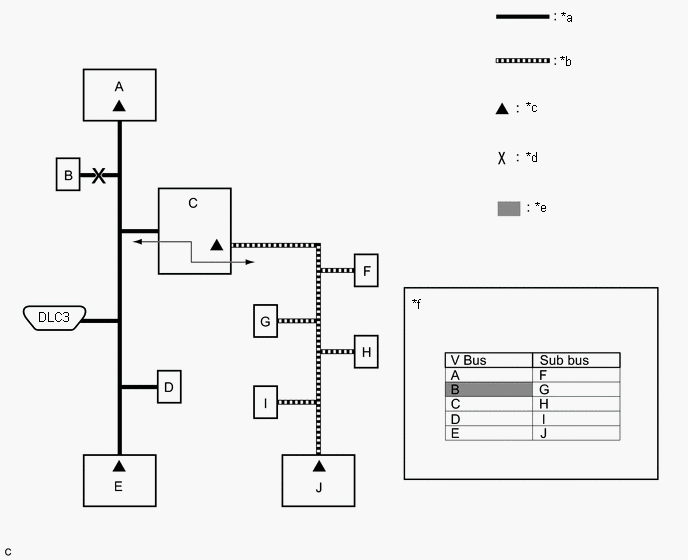

If a communication error of only 1 ECU or sensor is indicated on the CAN Bus Check screen, a communication stop of the ECU or sensor is suspected.

Example: Open in both CAN branch lines of ECU B on the V bus

Fig 1: Example: Open In Both CAN Branch Lines Of ECU B On The V Bus

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	V Bus	*b	Sub Bus
*c	Terminating Resistor	*d	Location of Malfunction
*e	Not displayed or background color changes to red or yellow	*f	CAN Bus Check Screen

HINT:

When there are communication stops, ECUs are present in the vehicle even though they are not displayed on the CAN Bus Check screen.

If communication errors for multiple ECUs or sensors are indicated on the CAN Bus Check screen, then a communication stop of the ECU or sensor that shows a more serious communication stop (an ECU or sensor which is not displayed) is suspected.

Example: Open in a CAN branch line for ECU D on the V bus

Fig 2: Example: Open In A CAN Branch Line For ECU D On The V Bus

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Background color periodically changes to yellow or red
*b	Not displayed or background color is yellow or red
*c	Not displayed

EXPLANATION OF CAN BUS CHECK SCREEN

Bus Type	Background Color	Connection Status
V Bus	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Sub bus (gateway function equipped ECU that does not have history of connected ECUs)*2	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring (unstable communication).
	Not displayed	Communication stop has continued since the start of the CAN bus check.*1
Sub bus (gateway function equipped ECU that has history of connected ECUs)*3	White	Communication has been normal since the start of the CAN bus check.
	Yellow	Communication stop occurred at least once since the start of the CAN bus check, but communication is currently occurring (unstable communication).
	Red	Currently not communicating (either of the following): Communication stop has continued since the start of the CAN bus check. Communication was established at least once since the start of the CAN bus check, but communication is currently not occurring.
	Not displayed	Either of the following: If a gateway function equipped ECU cannot communicate, sub bus and ECUs connected to the sub bus will not be displayed. If no ECUs are connected to the sub bus, "There is no system found on the Communication Bus" will be displayed.

HINT:

Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.
*1: ECUs that are present in the vehicle but are not displayed on the CAN Bus Check screen.
*2: Gateway function equipped ECU that does not memorize the sub bus ECUs that are connected to it.
*3: Gateway function equipped ECU that memorizes the sub bus ECUs that are connected to it.
The example of the CAN Bus Check screen in the illustration shows the result of electrical noise on the CAN bus which is caused by an open in a CAN branch line of ECU D (output from the other branch line is unstable) and the communication of ECU C is also unstable. In addition, in this example, ECU C is equipped with a gateway function. Therefore, communication is also unstable between the sub bus ECUs of ECU C and the V bus.
The example in the illustration shows that ECU D is not displayed on the CAN Bus Check screen. This indicates a more significant communication stop. In this case, a communication stop of ECU D is suspected.

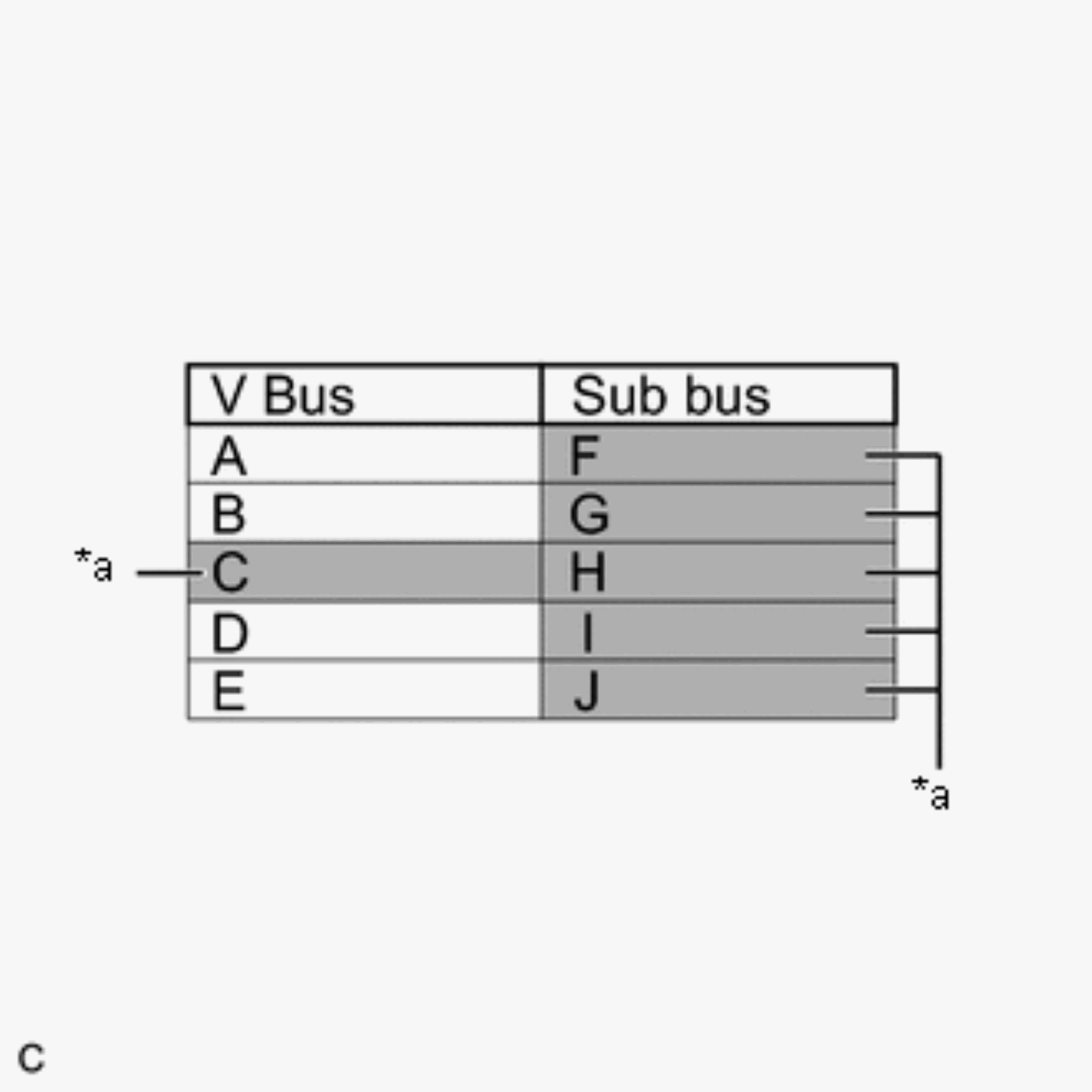

If a communication error is indicated on both the V bus and sub bus on the CAN Bus Check screen, suspect any communication stop displayed for the V bus first.

Example: Open in both CAN branch lines of ECU C on the V bus

Fig 3: Example: Open In Both CAN Branch Lines Of ECU C On The V Bus

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Not displayed or background color changes to red

HINT:

In the CAN bus check, it is possible to confirm the communication status of ECUs connected to the V bus after connecting the Techstream to the DLC3. As for sub buses, it is possible to confirm which sub bus connected ECUs can communicate with a gateway function equipped ECU on the V bus.
If a gateway function equipped ECU has a communication error, ECUs connected to the gateway function equipped ECU are also affected, and communication stops will be indicated.
The CAN Bus Check screen in the illustration shows that ECU C has a gateway function and a communication stop in ECU C is suspected.

If the CAN Bus Check screen indicates a communication stop only in the sub bus, a communication stop in the sub bus is suspected.
Example: Open in both CAN branch lines of ECU G on the sub bus

Fig 4: Example: Open In Both CAN Branch Lines Of ECU G On The Sub Bus
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEXT IN ILLUSTRATION

*a Background color changes to red

HINT:
- A communication error in a sub bus does not affect the V bus or other buses.
- When a gateway function equipped ECU has memorized the ECUs that are connected to the sub bus, if any of the ECUs connected to the gateway function equipped ECU has a communication error, the background color changes to yellow or red. (The displayed name will not disappear.)

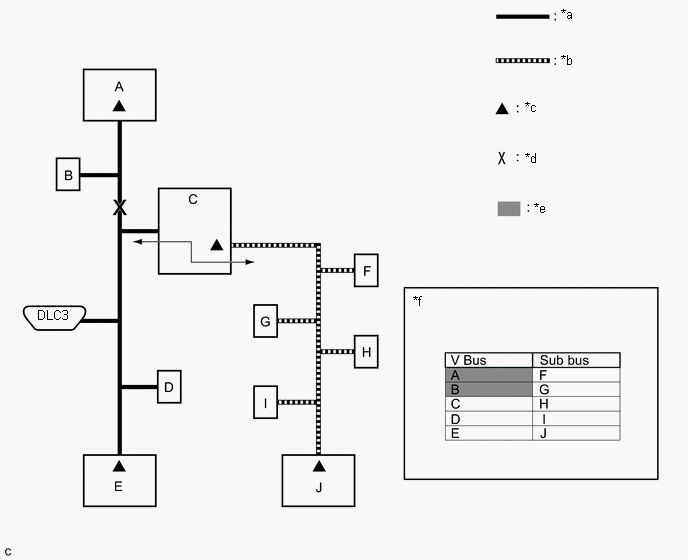

If both of the V bus main bus lines are open, ECUs or sensors that are located farther away from the DLC3 than the open part will be displayed as a communication stop on the CAN Bus Check screen.

(In this case, ECU A and B are not displayed or their background color changes to red.)

Fig 5: ECU A And B Are Not Displayed Or Their Background Color Changes To Red

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	V Bus	*b	Sub Bus
*c	Terminating Resistor	*d	Location of Malfunction
*e	Not displayed or background color is red	*f	CAN Bus Check Screen

HINT:

If a communication error occurs in an ECU, it is not displayed on the CAN Bus Check screen even though the ECU is present.

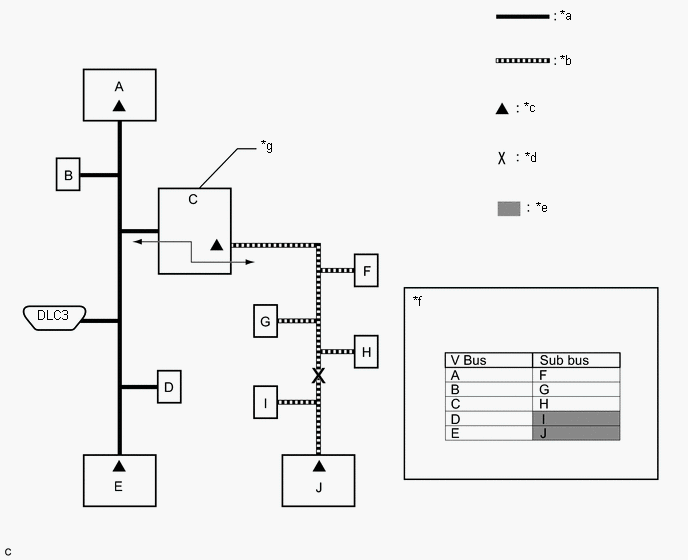

If both of the sub bus main bus lines are open, ECUs that are located farther away from the gateway function equipped ECU than the open part will be displayed as a communication stop on the CAN Bus Check screen.

(In this case, ECU I and J are not displayed or their background color changes to red.)

Fig 6: ECU I And J Are Not Displayed Or Their Background Color Changes To Red

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	V Bus	*b	Sub Bus
*c	Terminating Resistor	*d	Location of Malfunction
*e	Not displayed or background color is red	*f	CAN Bus Check Screen
*g	Gateway Function Equipped ECU	-	-

When any of the following malfunctions occur, CAN communication cannot be established and almost all ECUs and sensors on the bus show a communication error on the CAN Bus Check screen.

Fig 7: Communication Error On The CAN Bus Check Screen

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	When any of the following malfunctions occur on the V bus
*b	When any of the following malfunctions occur on a sub bus
*c	Not displayed

DETAILS OF MALFUNCTION

Short between CAN lines (CANH and CANL)

Short between a CAN line (CANH or CANL) and +B

Short between a CAN line (CANH or CANL) and ground

Open in a CAN main bus line

HINT:

When a malfunction occurs on the V bus, almost all ECUs and sensors on the V bus and sub bus indicate a communication error (almost all ECUs are not displayed). As communication with the gateway function equipped ECU that is connected to the V bus stops, communication from the ECUs connected to the sub bus that is monitored by the gateway function equipped ECU also stops (these ECUs are not displayed).
When a malfunction occurs in a sub bus, almost all ECUs connected to the sub bus indicate a communication error.
A communication error in a sub bus does not affect the V bus or other buses.
The malfunctioning part can be determined by checking for a short circuit between CAN bus lines or between a CAN bus line and ground or +B short using an electrical tester.

HOW TO INTERPRET COMMUNICATION DTCS (DTCS THAT START WITH U)

If a CAN communication error cannot be reproduced, determine the suspected malfunctioning part using the DTCs stored in ECUs that are connected to the CAN buses by following the procedure below.

HINT:

Communication DTCs (DTCs that start with U) indicate a communication error between the ECU that stores the DTC and the ECU that is indicated by the DTC.

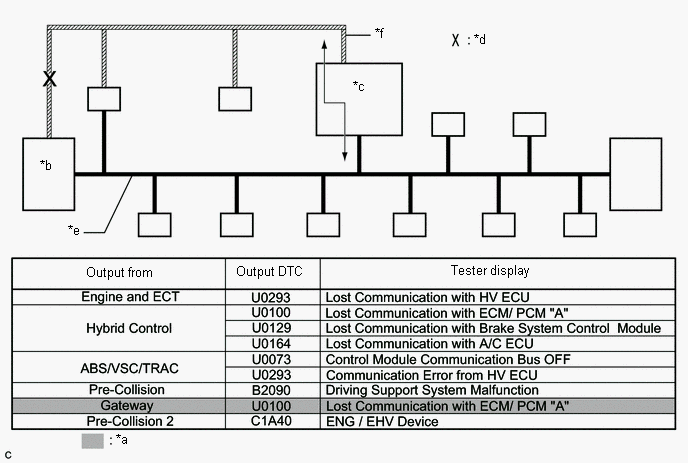

If multiple ECUs store a communication DTC for a particular ECU, a communication stop of the ECU is suspected.

Fig 8: Multiple ECUs Store A Communication DTC

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Items to be Checked

NOTE:

This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.
Even though a DTC title may indicate a communication error with a specific ECU, the ECU name used in the DTC name on the Techstream may differ depending on the ECU that stores the DTC. (Regarding output DTCs, refer to step 6 and the DTC chart for each ECU.)

HINT:

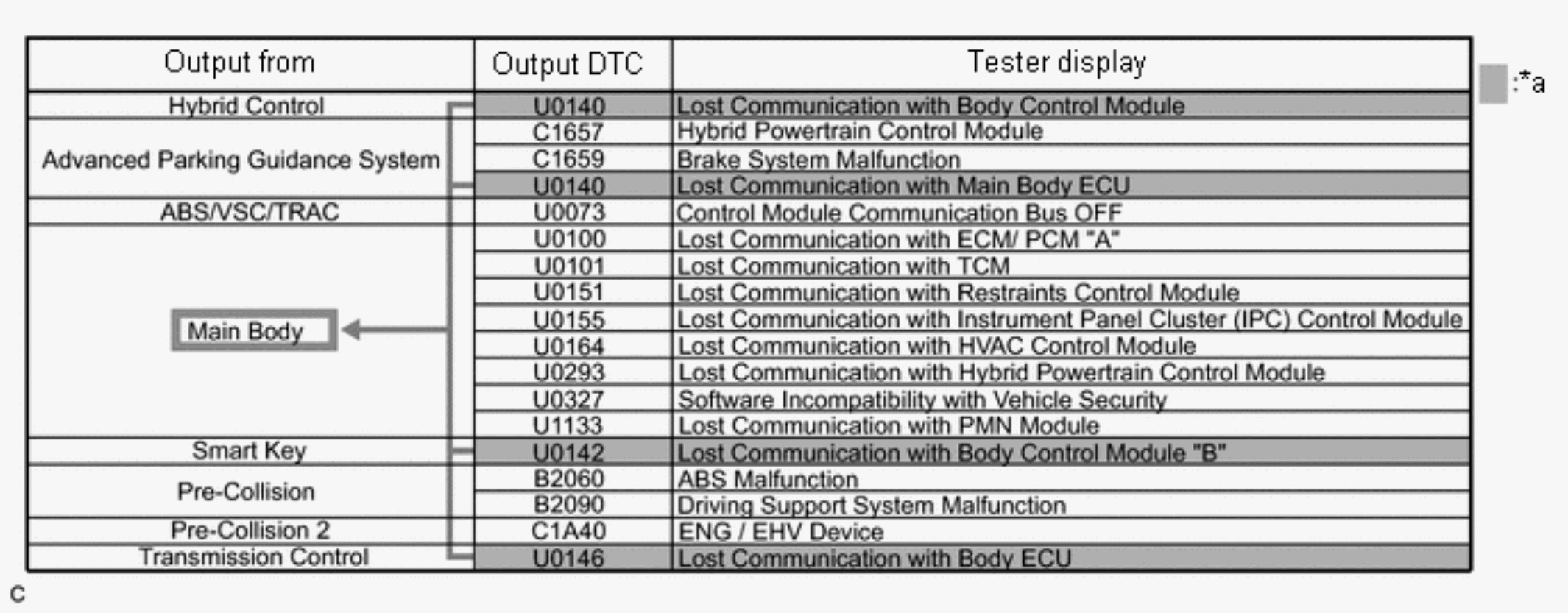

As multiple ECUs indicate a communication stop with the main body ECU, the possibility of a communication stop of the main body ECU is high.

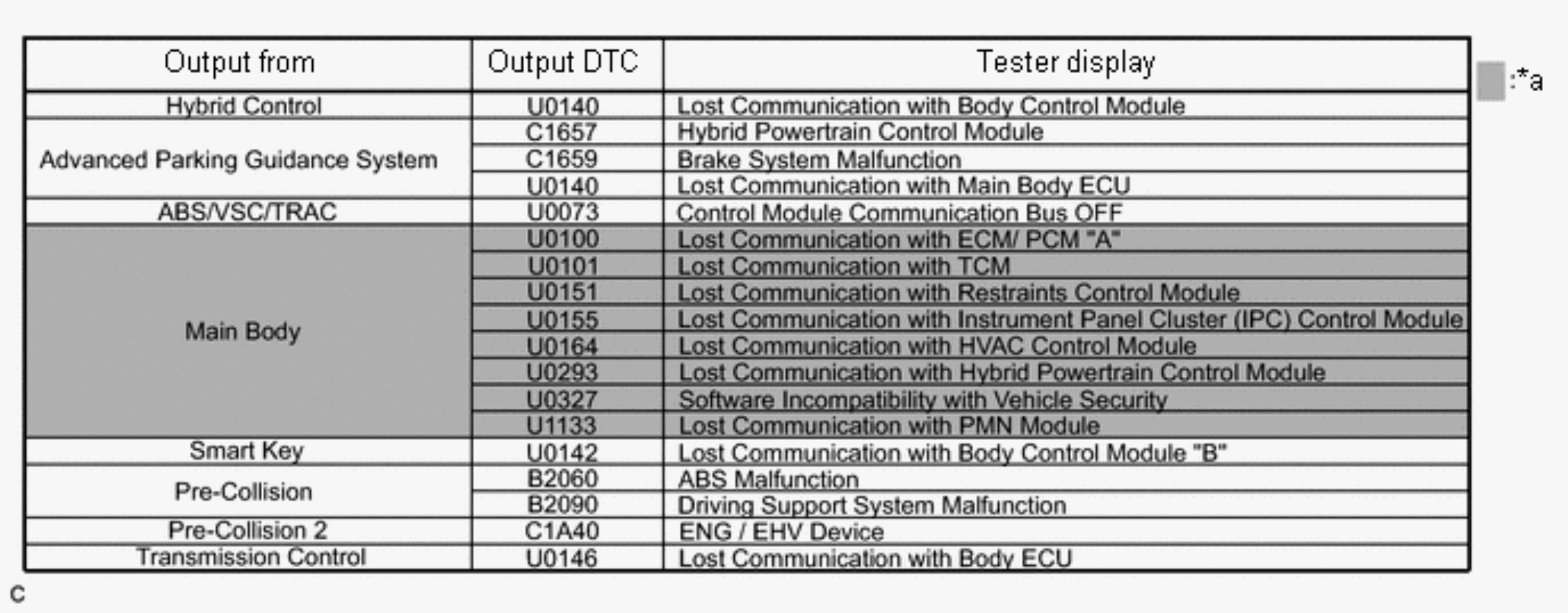

If almost all of the communication DTCs of an ECU are stored, a communication stop of the ECU is suspected.

Fig 9: Multiple ECUs Indicate A Communication Stop With The Main Body ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Items to be Checked

NOTE:

This DTC table is from another model, and is only used here to show an example of DTCs that are output when there is an open in a CAN branch line for the main body ECU. This table does not show DTCs applicable to this vehicle.

HINT:

If almost all of the DTCs of the main body ECU are stored, the possibility of a communication stop of the main body ECU is high.
When a CAN communication error occurs, many DTCs are output. DTCs other than communication error DTCs (such as DTCs that start with C or B) and communication DTCs for the ABS system are important DTCs, however it may be easier to determine the malfunctioning part by examining the overall situation without considering these DTCs.

To help determine the part of the sub bus that has a communication error, prioritize the communication stop DTCs stored in the gateway function equipped ECU.

Fig 10: Communication Stop DTCs Stored In The Gateway Function Equipped ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Items to be Checked	*b	ECM
*c	Gateway Function Equipped ECU	*d	Location of Malfunction
*e	V Bus	*f	Sub Bus

NOTE:

This DTC table is from another model, and is only used here to show the ECUs connected to both a V bus and a sub bus. It shows DTCs output when there is an open in the main bus lines for the ECM on the sub bus. This table does not show DTCs applicable to this vehicle.

HINT:

As gateway function equipped ECUs (sub bus monitor ECU) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
When there is a communication stop for the gateway function equipped ECU (gateway), communication with ECUs connected to other buses such as the V bus stops. Therefore, communication DTCs for ECUs connected to other buses are also stored.

When any of the following malfunctions occurs, many DTCs are likely to be output from many ECUs. Because of this, it may be difficult to determine the probable malfunctioning part.
- Short between CAN lines (CANH and CANL)
- Short between a CAN line (CANH or CANL) and ground
- Short between a CAN line (CANH or CANL) and +B
- Open in a CAN branch line (CANH or CANL) of an ECU or sensor
- Open in a CAN main bus line (CANH or CANL) between 2 ECUs that have a terminating resistor

DTC TABLE BY ECU

HINT:

In the CAN communication system, the CAN communication DTCs of each ECU can be displayed using the Techstream.
If CAN communication system DTCs are output, the malfunction cannot be determined only by the DTCs. Perform troubleshooting according to How to Proceed with Troubleshooting. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2015 - ]
If the system function temporarily returns to normal, DTCs may not be output again even though the following DTC check procedures are used.

ECM / Techstream Display "Engine"

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to SFI System. Refer to DTC U0101: Lost Communication with TCM [07/2015 - ]

ECM / TECHSTREAM DISPLAY "ENGINE"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0101*	Lost Communication with TCM	The ECM does not receive data from the TCM for 1.25 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the ECM is 10.5 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	MIL illuminates.	DTC is stored until it is cleared using the Techstream.

ECM / Techstream Display "Cruise Control"

HINT:

This ECU uses the CAN communication system for DTC communication.

ECM / TECHSTREAM DISPLAY "CRUISE CONTROL"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0122	Lost Communication with Vehicle Dynamics Control Module	The ECM does not receive data from the brake actuator assembly (skid control ECU) for 2.58 seconds.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The cruise control switch is on. The power source voltage of the ECM is 10.5 V or more.	Allow the cruise control system to operate for 3.58 seconds or more.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

TCM / Techstream Display "ECT"

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to U660E Automatic Transaxle System. Refer to DTC U0100: Lost Communication with ECM / PCM "A" [07/2015 - ]

TCM / TECHSTREAM DISPLAY "ECT"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100*	Lost Communication with ECM / PCM "A"	The TCM does not receive data from the ECM for 1.25 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the TCM is 10.5 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	MIL illuminates.	DTC is stored until it is cleared using the Techstream.

Brake Actuator Assembly (Skid Control ECU) / Techstream Display "ABS/VSC/TRAC"

HINT:

This ECU uses the CAN communication system for DTC communication.

BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) / TECHSTREAM DISPLAY "ABS/VSC/TRAC"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Control Module Communication Bus OFF	One of the following conditions is met: With IG1 terminal voltage at 10 V or more, delayed reception of data from the yaw rate and acceleration sensor (built into the airbag sensor assembly), or steering sensor continues for 1 second or more. The following condition occurs 10 times or more within 60 seconds: With IG1 terminal voltage at 10 V or more, delayed reception of data from the yaw rate and acceleration sensor (built into the airbag sensor assembly), or steering sensor occurs once or more within 5 seconds. The following condition occurs 10 times in succession: The brake actuator assembly (skid control ECU) cannot send/receive data (bus off) once or more within 0.1 seconds.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the brake actuator assembly (skid control ECU) (IG1 terminal voltage) is 10 V or more.	Turn the engine switch on (IG) and wait at least 60 seconds.	ABS warning light illuminates. Slip indicator light illuminates. Brake warning light illuminates.	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM	With IG1 terminal voltage at 10 V or more and the vehicle speed at 15 km/h (9 mph) or more, the brake actuator assembly (skid control ECU) does not receive data from the ECM for 2 seconds or more.	All conditions are met: Vehicle speed is 15 km/h (9 mph) or more. The engine switch is on (IG) for 1 second or more. The power source voltage of the brake actuator assembly (skid control ECU) (IG1 terminal voltage) is 10 V or more.	Turn the engine switch on (IG) and drive the vehicle at a speed of 15 km/h (9 mph) or more for 2 seconds or more.	Slip indicator light illuminates.	DTC is stored until it is cleared using the Techstream.
U0124	Lost Communication with Lateral Acceleration Sensor Module	One of the following conditions is met: With IG1 terminal voltage at 10 V or more and the vehicle speed at 7 km/h (4 mph) or more, the brake actuator assembly (skid control ECU) does not receive data from the yaw rate and acceleration sensor (built into the airbag sensor assembly) for 1 second or more. The following condition occurs 10 times or more within 60 seconds: With IG1 terminal voltage at 10 V or more, the brake actuator assembly (skid control ECU) does not receive data from the yaw rate and acceleration sensor (built into the airbag sensor assembly) once or more within 5 seconds.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the brake actuator assembly (skid control ECU) (IG1 terminal voltage) is 10 V or more.	Turn the engine switch on (IG) and wait at least 60 seconds.	ABS warning light illuminates. Slip indicator light illuminates. Brake warning light illuminates.	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	Either condition is met: With IG1 terminal voltage at 10 V or more, the brake actuator assembly (skid control ECU) does not receive data from the steering sensor for 1 second or more. The following condition occurs 10 times or more within 60 seconds: With IG1 terminal voltage at 10 V or more, the brake actuator assembly (skid control ECU) does not receive data from the steering sensor for once or more within 5 seconds.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the brake actuator assembly (skid control ECU) (IG1 terminal voltage) is 10 V or more.	Turn the engine switch on (IG) and wait at least 60 seconds.	Slip indicator light illuminates.	DTC is stored until it is cleared using the Techstream.

Power Steering ECU with Motor Assembly / Techstream Display "EMPS"

HINT:

This ECU uses the CAN communication system for DTC communication.

POWER STEERING ECU WITH MOTOR ASSEMBLY / TECHSTREAM DISPLAY "EMPS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The power steering ECU with motor assembly does not receive data from the ECM for 1.34 seconds or more.	All conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the power steering ECU with motor assembly is 9 V or more. Vehicle speed is 20 km/h (12 mph) or more for at least 5 minutes.	Drive the vehicle at a speed of 20 km/h (12 mph) or more for at least 5 minutes.	EPS warning light does not illuminate.	DTC remains stored only while malfunction is occurring.
U0129	Lost Communication with Brake System Control Module	The power steering ECU with motor assembly cannot receive data from the brake actuator assembly (skid control ECU) for 2.34 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the power steering ECU with motor assembly is 9 V or more.	Turn the engine switch on (IG) and wait at least 6 seconds.	EPS warning light illuminates.	DTC remains stored only while malfunction is occurring.

Steering Sensor / Techstream Display "-"
HINT:

The steering sensor is connected to the CAN communication system, but the steering sensor does not store or output CAN communication DTCs.
Airbag Sensor Assembly / Techstream Display "SRS Airbag"
HINT:

The airbag sensor assembly is connected to the CAN communication system, but the airbag sensor assembly does not store or output CAN communication DTCs.

Main Body ECU (Multiplex Network Body ECU) / Techstream Display "Main Body"

HINT:

This ECU uses the CAN communication system for DTC communication.

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) / TECHSTREAM DISPLAY "MAIN BODY"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The main body ECU (multiplex network body ECU) does not receive data from the ECM for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The main body ECU (multiplex network body ECU) does not receive data from the TCM for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0120	Lost Communication with Starter / Generator Control Module	The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0151	Lost Communication with Restraints Control Module	The main body ECU (multiplex network body ECU) does not receive data from the airbag sensor assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Instrument Panel Cluster (IPC) Control Module	The main body ECU (multiplex network body ECU) does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	w/ Tire pressure warning system: Tire pressure warning light blinks and then illuminates.	DTC is stored until it is cleared using the Techstream.
U0164	Lost Communication with HVAC Control Module	The main body ECU (multiplex network body ECU) does not receive data from the air conditioning amplifier assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0198	Lost Communication with Telematic Control Module	The main body ECU (multiplex network body ECU) does not receive data from the DCM (telematics transceiver) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0199	Lost Communication with "Door Control Module A"	The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly (for front passenger side) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0200	Lost Communication with "Door Control Module B"	The main body ECU (multiplex network body ECU) does not receive data from the outer mirror control ECU assembly (for driver side) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0208	Lost Communication with "Seat Control Module A"	The main body ECU (multiplex network body ECU) does not receive data from the front power seat switch LH for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0209	Lost Communication with "Seat Control Module B"	The main body ECU (multiplex network body ECU) does not receive data from the front power seat switch RH for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0230	Lost Communication with Rear Gate Module	The main body ECU (multiplex network body ECU) does not receive data from the luggage closer motor assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0265	Lost Communication with Parking Assist Monitor Module	The main body ECU (multiplex network body ECU) does not receive data from the rear television camera assembly for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0327	Software Incompatibility with Vehicle Security Control Module	The main body ECU (multiplex network body ECU) does not receive data from the certification ECU (smart key ECU assembly) for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1002	Lost Communication with Gateway Module (Main body)	The main body ECU (multiplex network body ECU) does not receive data from ECUs with a sub bus 1 connection record for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1115	Lost Communication with Tilt and Telescopic Module	The main body ECU (multiplex network body ECU) does not receive data from the multiplex tilt and telescopic ECU for 10 seconds or more.	Both conditions are met: Power source status change (+B OFF → ON, ACC ON ←→ OFF, IG ON ←→ OFF) is detected and 10 seconds or more elapse. The power source voltage of the main body ECU (multiplex network body ECU) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.

Certification ECU (Smart Key ECU Assembly) / Techstream Display "Smart Access"

HINT:

This ECU uses the CAN communication system for DTC communication.

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) / TECHSTREAM DISPLAY "SMART ACCESS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM / PCM	The certification ECU (smart key ECU assembly) does not receive data from the ECM for 10 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Main Body ECU	The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.

Certification ECU (Smart Key ECU Assembly) / Techstream Display "Power Source Control"

HINT:

This ECU uses the CAN communication system for DTC communication.

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) / TECHSTREAM DISPLAY "POWER SOURCE CONTROL"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM / PCM	The certification ECU (smart key ECU assembly) does not receive data from the ECM for 3.1 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13.1 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Main Body ECU	The certification ECU (smart key ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for 3 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The certification ECU (smart key ECU assembly) does not receive data from the combination meter assembly for 3.1 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the certification ECU (smart key ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13.1 seconds.	-	DTC is stored until it is cleared using the Techstream.

Air Conditioning Amplifier Assembly / Techstream Display "Air Conditioner"

HINT:

This ECU uses the CAN communication system for DTC communication.

AIR CONDITIONING AMPLIFIER ASSEMBLY / TECHSTREAM DISPLAY "AIR CONDITIONER"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM	The air conditioning amplifier assembly does not receive data from the ECM for 5 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0131	Lost Communication with Electric Power Steering ECU	The air conditioning amplifier assembly does not receive data from the power steering ECU with motor assembly for 5 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Main Body ECU	The air conditioning amplifier assembly does not receive data from the main body ECU (multiplex network body ECU) for 5 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The air conditioning amplifier assembly does not receive data from the combination meter assembly for 5 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The air conditioning amplifier assembly does not receive data from the radio receiver assembly for 5 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the air conditioning amplifier assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 5 seconds.	-	DTC is stored until it is cleared using the Techstream.

Combination Meter Assembly / Techstream Display "Combination Meter"

HINT:

This ECU uses the CAN communication system for DTC communication.

COMBINATION METER ASSEMBLY / TECHSTREAM DISPLAY "COMBINATION METER"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0100	Lost Communication with ECM / PCM "A"	The combination meter assembly does not receive data from the ECM for 2 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 2 seconds.	Needle of tachometer remains at 0 rpm.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The combination meter assembly does not receive data from the brake actuator assembly (skid control ECU) for 3 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 3 seconds.	Needle of speedometer remains at 0 km/h (0 mph).	DTC is stored until it is cleared using the Techstream.
U0131	Lost Communication with Power Steering Control Module	The combination meter assembly does not receive data from the power steering ECU with motor assembly for 3 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 3 seconds.	EPS warning light illuminates.	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Body Control Module "B"	The combination meter assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0151	Lost Communication with Restraints Control Module	The combination meter assembly does not receive data from the airbag sensor assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 10 seconds.	SRS warning light illuminates.	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The combination meter assembly does not receive data from the radio receiver assembly for 3 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 3 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0182	Lost Communication with AFS	The combination meter assembly does not receive data from the Headlight leveling ECU (headlight swivel ECU assembly) or headlight swivel ECU assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the combination meter assembly is between 9.5 and 11.5 V.	Turn the engine switch on (IG) and wait at least 10 seconds.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.

Radio Receiver Assembly (for Navigation Receiver Type) / Techstream Display "Navigation System"

HINT:

This ECU uses the CAN communication system for DTC communication.

RADIO RECEIVER ASSEMBLY (FOR NAVIGATION RECEIVER TYPE) / TECHSTREAM DISPLAY "NAVIGATION SYSTEM"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Sending Malfunction (Navigation to APGS)	The radio receiver assembly does not send/receive data 10 times in succession.	Both conditions are met: The engine switch is on (ACC) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (ACC) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0100	Engine ECU Communication	The radio receiver assembly does not receive data from the ECM for 12 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0129	VSC (ECB) ECU Communication	The radio receiver assembly does not receive data from the brake actuator assembly (skid control ECU) for 1 second or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 2 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The radio receiver assembly does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 31 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0164	Air Conditioner ECU Communication	The radio receiver assembly does not receive data from the air conditioning amplifier assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0198	Lost Communication with Telematic Control Module	The radio receiver assembly does not receive data from the DCM (telematics transceiver) for 3 seconds or more.	Both conditions are met: The engine switch is on (IG). The power source voltage of the radio receiver assembly is 10.5 V or more.	Turn the engine switch on (IG) and wait at least 3 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1110	Clearance Sonar ECU Communication	The radio receiver assembly does not receive data from the clearance warning ECU assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.

Radio Receiver Assembly (for Radio and Display Type (w/ Parking Assist Monitor System with Parallel Parking Assist Function)) / Techstream Display "Navigation System"

HINT:

This ECU uses the CAN communication system for DTC communication.

RADIO RECEIVER ASSEMBLY (FOR RADIO AND DISPLAY TYPE (W/ PARKING ASSIST MONITOR SYSTEM WITH PARALLEL PARKING ASSIST FUNCTION)) / TECHSTREAM DISPLAY "NAVIGATION SYSTEM"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Sending Malfunction (Navigation to APGS)	The radio receiver assembly does not send/receive data 10 times in succession.	Both conditions are met: The engine switch is on (ACC) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (ACC) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0100	Engine ECU Communication	The radio receiver assembly does not receive data from the ECM for 12 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0126	Steering Sensor Communication	The radio receiver assembly does not receive data from the steering sensor for 11 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 12 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0129	VSC (ECB) ECU Communication	The radio receiver assembly does not receive data from the brake actuator assembly (skid control ECU) for 1 second or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 2 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The radio receiver assembly does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 31 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0164	Air Conditioner ECU Communication	The radio receiver assembly does not receive data from the air conditioning amplifier assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1110	Clearance Sonar ECU Communication	The radio receiver assembly does not receive data from the clearance warning ECU assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.

Radio Receiver Assembly (for Radio and Display Type (w/ Parking Assist Monitor System without Parallel Parking Assist Function)) / Techstream Display "Navigation System"

HINT:

This ECU uses the CAN communication system for DTC communication.

RADIO RECEIVER ASSEMBLY (FOR RADIO AND DISPLAY TYPE (W/ PARKING ASSIST MONITOR SYSTEM WITHOUT PARALLEL PARKING ASSIST FUNCTION)) / TECHSTREAM DISPLAY "NAVIGATION SYSTEM"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Sending Malfunction (Navigation to APGS)	The radio receiver assembly does not send/receive data 10 times in succession.	Both conditions are met: The engine switch is on (ACC) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (ACC) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM	The radio receiver assembly does not receive data from the ECM for 12 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0129	VSC (ECB) ECU Communication	The radio receiver assembly does not receive data from the brake actuator assembly (skid control ECU) for 1 second or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 2 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The radio receiver assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The radio receiver assembly does not receive data from the combination meter assembly for 30 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 31 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0164	Air Conditioner ECU Communication	The radio receiver assembly does not receive data from the air conditioning amplifier assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1110	Clearance Sonar ECU Communication	The radio receiver assembly does not receive data from the clearance warning ECU assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 1 second or more. The power source voltage of the radio receiver assembly is 9.5 V or more.	Turn the engine switch on (IG) and wait at least 11 seconds.	-	DTC is stored until it is cleared using the Techstream.

Headlight Leveling ECU (Headlight Swivel ECU Assembly) / Techstream Display "AFS"

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Automatic Headlight Beam Level Control System. Refer to DTC U1000: Can Communication Failure(Message Registry) [07/2015 - ]

HEADLIGHT LEVELING ECU (HEADLIGHT SWIVEL ECU ASSEMBLY) / TECHSTREAM DISPLAY "AFS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Control Module Communication Bus Off	The headlight leveling ECU (headlight swivel ECU assembly) does not send/receive data 10 times in succession.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight leveling ECU (headlight swivel ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM "A"	The headlight leveling ECU (headlight swivel ECU assembly) does not receive data from the ECM for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight leveling ECU (headlight swivel ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The headlight leveling ECU (headlight swivel ECU assembly) does not receive data from the brake actuator assembly (skid control ECU) for 5 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight leveling ECU (headlight swivel ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 8 seconds.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Main Body ECU	The headlight leveling ECU (headlight swivel ECU assembly) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight leveling ECU (headlight swivel ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	When the engine switch is turned on (IG), a CAN communication malfunction is detected.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight leveling ECU (headlight swivel ECU assembly) is 10 V or more.	Turn the engine switch on (IG) and wait at least 3 seconds.	-	DTC is stored until it is cleared using the Techstream.

Headlight Swivel ECU Assembly / Techstream Display "AFS"

HINT:

This ECU uses the CAN communication system for DTC communication.
*: Refer to Adaptive Front-lighting System. Refer to DTC U1000: Can Communication Failure(Message Registry) [07/2015 - ]

HEADLIGHT SWIVEL ECU ASSEMBLY / TECHSTREAM DISPLAY "AFS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0073	Control Module Communication Bus Off	The headlight swivel ECU assembly does not send/receive data 10 times in succession.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0100	Lost Communication with ECM / PCM "A"	The headlight swivel ECU assembly does not receive data from the ECM for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	AFS OFF indicator light flashes. Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0101	Lost Communication with TCM	The headlight swivel ECU assembly does not receive data from the TCM for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	AFS OFF indicator light flashes. Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0126	Lost Communication with Steering Angle Sensor Module	The headlight swivel ECU assembly does not receive data from the steering sensor for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	AFS OFF indicator light flashes. Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The headlight swivel ECU assembly does not receive data from the brake actuator assembly (skid control ECU) for 5 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 8 seconds.	AFS OFF indicator light flashes. Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U0142	Lost Communication with Main Body ECU	The headlight swivel ECU assembly does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 13 seconds.	AFS OFF indicator light flashes. Displays messages on the multi-information display.	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	When the engine switch is turned on (IG), a CAN communication malfunction is detected.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the headlight swivel ECU assembly is 10 V or more.	Turn the engine switch on (IG) and wait at least 3 seconds.	-	DTC is stored until it is cleared using the Techstream.

Front Power Seat Switch LH / Techstream Display "Driver Seat"
HINT:

The front power seat switch LH is connected to the CAN communication system, but the front power seat switch LH does not store or output CAN communication DTCs.
Front Power Seat Switch RH / Techstream Display "Passenger Seat"
HINT:

The front power seat switch RH is connected to the CAN communication system, but the front power seat switch RH does not store or output CAN communication DTCs.

Outer Mirror Control ECU Assembly (for Front Passenger Side) / Techstream Display "Mirror R"

HINT:

This ECU uses the CAN communication system for DTC communication.

OUTER MIRROR CONTROL ECU ASSEMBLY (FOR FRONT PASSENGER SIDE) / TECHSTREAM DISPLAY "MIRROR R"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0142	Lost Communication with Body Control Module "B"	The outer mirror control ECU assembly (for front passenger side) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the outer mirror control ECU assembly (for front passenger side) is 10 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC is stored until it is cleared using the Techstream.

Outer Mirror Control ECU Assembly (for Driver Side) / Techstream Display "Mirror L"

HINT:

This ECU uses the CAN communication system for DTC communication.

OUTER MIRROR CONTROL ECU ASSEMBLY (FOR DRIVER SIDE) / TECHSTREAM DISPLAY "MIRROR L"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0142	Lost Communication with Body Control Module "B"	The outer mirror control ECU assembly (for driver side) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: 10 seconds have elapsed after connection of the battery. The power source voltage of the outer mirror control ECU assembly (for driver side) is 10 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC is stored until it is cleared using the Techstream.

Luggage Closer Motor Assembly / Techstream Display "Back Door"
HINT:

The luggage closer motor assembly is connected to the CAN communication system, but the luggage closer motor assembly does not store or output CAN communication DTCs.

Multiplex Tilt and Telescopic ECU / Techstream Display "Tilt & Telescopic"

HINT:

This ECU uses the CAN communication system for DTC communication.

MULTIPLEX TILT AND TELESCOPIC ECU / TECHSTREAM DISPLAY "TILT & TELESCOPIC"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0142	Lost Communication with Main Body ECU	The multiplex tilt and telescopic ECU does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	The power source voltage of the multiplex tilt and telescopic ECU is 10 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC remains stored only while malfunction is occurring.
U0208	Lost Communication with "Seat Control Module A"	The multiplex tilt and telescopic ECU does not receive data from the front power seat switch LH for 10 seconds or more.	The power source voltage of the multiplex tilt and telescopic ECU is 10 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC remains stored only while malfunction is occurring.

Clearance Warning ECU Assembly / Techstream Display "Intuitive P/A"

HINT:

This ECU uses the CAN communication system for DTC communication.

CLEARANCE WARNING ECU ASSEMBLY / TECHSTREAM DISPLAY "INTUITIVE P/A"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0101	Lost Communication with TCM	The clearance warning ECU assembly does not receive data from the TCM for 5 seconds or more.	Both conditions are met: The engine switch is on (IG) for 5 seconds or more. The power source voltage of the clearance warning ECU assembly is 10.2 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Lost Communication with Combination Meter	The clearance warning ECU assembly does not receive data from the combination meter assembly for 5 seconds or more.	Both conditions are met: The engine switch is on (IG) for 5 seconds or more. The power source voltage of the clearance warning ECU assembly is 10.2 V or more.	Turn the engine switch on (IG) and wait at least 10 seconds.	-	DTC is stored until it is cleared using the Techstream.

DCM (Telematics Transceiver) / Techstream Display "Telematics"

HINT:

This ECU uses the CAN communication system for DTC communication.

DCM (TELEMATICS TRANSCEIVER) / TECHSTREAM DISPLAY "TELEMATICS"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0142	Lost Communication with Body Control Module "B"	The DCM (telematics transceiver) does not receive data from the main body ECU (multiplex network body ECU) for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 10 seconds or more. The power source voltage of the DCM (telematics transceiver) is 12 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0155	Meter ECU Communication	The DCM (telematics transceiver) does not receive data from the combination meter assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 10 seconds or more. The power source voltage of the DCM (telematics transceiver) is 12 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The DCM (telematics transceiver) does not receive data from the radio receiver assembly for 10 seconds or more.	Both conditions are met: The engine switch is on (IG) for 10 seconds or more. The power source voltage of the DCM (telematics transceiver) is 12 V or more.	Turn the engine switch on (IG) and wait at least 20 seconds.	-	DTC is stored until it is cleared using the Techstream.

Rear Television Camera Assembly (except Radio and Display Type (w/ Parking Assist Monitor System with Parallel Parking Assist Function)) / Techstream Display "Advanced Parking Guidance/Parking Assist Monitor"

HINT:

This ECU uses the CAN communication system for DTC communication.
*: The rear television camera assembly stores this DTC if an internal error related to the CAN communication system is detected. Refer to DTC U1000: CAN Communication Failure (Message Registry) [07/2015 - ]

REAR TELEVISION CAMERA ASSEMBLY (EXCEPT RADIO AND DISPLAY TYPE (W/ PARKING ASSIST MONITOR SYSTEM WITH PARALLEL PARKING ASSIST FUNCTION)) / TECHSTREAM DISPLAY "ADVANCED PARKING GUIDANCE/PARKING ASSIST MONITOR"

DTC	Detection Item	DTC Detection Condition	DTC Detection Pre-condition	DTC Check Procedure	Warning Indication in Meter	DTC Storage Method
U0126	Lost Communication with Steering Angle Sensor Module	The rear television camera assembly does not receive data from the steering sensor for 11 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the rear television camera assembly is 5.5 V or more.	Turn the engine switch on (IG) and wait at least 14 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0129	Lost Communication with Brake System Control Module	The rear television camera assembly does not receive data from the brake actuator assembly (skid control ECU) for 11 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the rear television camera assembly is 5.5 V or more.	Turn the engine switch on (IG) and wait at least 14 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0140	Lost Communication with Body Control Module	The rear television camera assembly does not receive data from the main body ECU (multiplex network body ECU) for 11 seconds or more.	Both conditions are met: The engine switch is on (ACC) for 3 seconds or more. The power source voltage of the rear television camera assembly is 5.5 V or more.	Turn the engine switch on (IG) and wait at least 14 seconds.	-	DTC is stored until it is cleared using the Techstream.
U0163	Lost Communication with Navigation Control Module	The rear television camera assembly does not receive data from the radio receiver assembly for 11 seconds or more.	Both conditions are met: The engine switch is on (ACC) for 3 seconds or more. The power source voltage of the rear television camera assembly is 5.5 V or more.	Turn the engine switch on (IG) and wait at least 14 seconds.	-	DTC is stored until it is cleared using the Techstream.
U1000*	CAN Communication Failure (Message Registry)	When the engine switch is turned on (IG), a CAN communication malfunction is detected.	The engine switch is on (IG).	Turn the engine switch on (IG).	-	DTC remains stored only while malfunction is occurring.
U1110	Lost Communication with Intuitive Parking Assist Module	The rear television camera assembly does not receive data from the clearance warning ECU assembly for 11 seconds or more.	Both conditions are met: The engine switch is on (IG) for 3 seconds or more. The power source voltage of the rear television camera assembly is 5.5 V or more.	Turn the engine switch on (IG) and wait at least 14 seconds.	-	DTC is stored until it is cleared using the Techstream.

DTC COMBINATION TABLE (OPEN OR SHORT IN V BUS, PAST COMMUNICATION ERROR)

Regarding a past communication error of an ECU and sensor connected to the V bus (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), the probable CAN bus line(s) that had a malfunction can be determined based on the following DTC combination table.

HINT:

Based on the table below and DTCs output from ECUs connected via CAN communication, the probable part for which communication stop occurred can be determined.
Regarding an open in a CAN branch and a communication stop that is currently occurring, the malfunctioning part can be confirmed easily by performing the CAN bus check using the Techstream because the ECU or sensor connected to the CAN branch does not respond (the ECU or sensor name will not be displayed on the screen).
If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a +B or short to ground in the CAN bus occurs, DTCs of almost all ECUs (or sensors) on the CAN bus may be output, or a message indicating a communication error may be displayed on the Techstream screen. In this case, check the resistance of the CAN bus (steps 7 to 9) first. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2015 - ]
If an open occurs in just one of the lines of a CAN branch, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.

-			Trouble Mode (Open in One CAN Branch Line)
-			V Bus
Output ECU		Output DTC	Center Airbag Sensor Communication Stop Mode. Refer to Center Airbag Sensor Communication Stop Mode [07/2015 - ]	Air Conditioning Amplifier Communication Stop Mode. Refer to Air Conditioning Amplifier Communication Stop Mode [07/2015 - ]	Audio Receiver Assembly Communication Stop Mode. Refer to Audio Receiver Assembly Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	X	←	X
		U0131	X	←	X
		U0142	X	←	X
		U0155	X	←	X
		U0163	X	X	←
	Radio Receiver Assembly*1	U0100	X	X	←
		U0126	X	X	←
		U0129	X	X	←
		U0140	X	X	←
		U0155	X	X	←
		U0164	X	←	←
		U0198	X	X	←
		U1110	X	X	←
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	X	X	X
		U0101	X	X	X
		U0120	X	X	X
		U0151	←	X	X
		U0155	X	X	X
		U0164	X	←	←
		U0198	X	X	X
		U0327	X	X	X
V Bus	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	X	X	X
		U0101	X	X	X
		U0126	X	X	X
		U0129	X	X	X
		U0142	X	X	X
	Clearance Warning ECU Assembly	U0101	X	X	X
	Clearance Warning ECU Assembly	U0155	X	X	X
	ECM	U0122	X	X	X
	Power Steering ECU with Motor Assembly	U0100	X	X	X
	Power Steering ECU with Motor Assembly	U0129	X	X	X
	Certification ECU (Smart Key ECU Assembly)	U0100	X	X	X
		U0142	X	X	X
		U0155	X	X	X
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	X	X	X
		U0140	X	X	X
		U0155	X	X	X
	Combination Meter Assembly	U0100	X	X	X
		U0129	X	X	X
		U0131	X	X	X
		U0142	X	X	X
		U0151	←	X	X
		U0163	X	X	X
		U0182	X	X	X
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	X	X	X
		U0155	X	X	X
		U0163	X	X	←
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	X	X	X
		U0124	←	X	X
		U0126	X	X	X
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
Sub Bus 1	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	←	X	-
		U0129	X	X	-
		U0140	-	-	-
		U0163	X	X	←
		U1110	X	X	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

-			Trouble Mode (Open in One CAN Branch Line)
-			V Bus
Output ECU		Output DTC	Main Body ECU Communication Stop Mode. Refer to Main Body ECU Communication Stop Mode [07/2015 - ]	AFS ECU Communication Stop Mode. Refer to AFS ECU Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-
	Air Conditioning Amplifier Assembly	U0100	X	X
		U0131	X	X
		U0142	←	X
		U0155	X	X
		U0163	X	X
	Radio Receiver Assembly*1	U0100	X	X
		U0126	X	X
		U0129	X	X
		U0140	X	X
		U0155	X	X
		U0164	X	X
		U0198	X	X
		U1110	X	X
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	←	X
		U0101	←	X
		U0120	←	X
		U0151	←	X
		U0155	←	X
		U0164	←	X
		U0198	←	X
		U0327	←	X
V Bus	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	X	←
		U0101	X	←
		U0126	X	←
		U0129	X	←
		U0142	←	X
	Clearance Warning ECU Assembly	U0101	X	X
	Clearance Warning ECU Assembly	U0155	X	X
	ECM	U0122	X	X
	Power Steering ECU with Motor Assembly	U0100	X	X
	Power Steering ECU with Motor Assembly	U0129	X	X
	Certification ECU (Smart Key ECU Assembly)	U0100	X	X
		U0142	←	X
		U0155	X	X
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	X	X
		U0140	←	X
		U0155	X	X
	Combination Meter Assembly	U0100	X	X
		U0129	X	X
		U0131	X	X
		U0142	←	X
		U0151	X	X
		U0163	X	X
		U0182	X	←
	Steering Sensor	-	-	-
	DCM (Telematics Transceiver)	U0142	←	X
		U0155	X	X
		U0163	X	X
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	X	X
		U0124	X	X
		U0126	X	X
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-
		U0200	-	-
		U0208	-	-
		U0209	-	-
		U0230	-	-
		U0265	-	-
		U1002	-	-
		U1115	-	-
	Luggage Closer Motor Assembly	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-
Sub Bus 1	Front Power Seat Switch LH	-	-	-
	Front Power Seat Switch RH	-	-	-
	Rear Television Camera Assembly	U0126	←	X
		U0129	←	X
		U0140	-	-
		U0163	←	X
		U1110	←	X
	Multiplex Tilt and Telescopic ECU	U0142	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-

-			Trouble Mode (Open in One CAN Branch Line)
-			V Bus
Output ECU		Output DTC	Clearance Warning ECU Communication Stop Mode. Refer to Clearance Warning ECU Communication Stop Mode [07/2015 - ]	Power Steering ECU Communication Stop Mode. Refer to Power Steering ECU Communication Stop Mode [07/2015 - ]	Certification ECU Communication Stop Mode. Refer to Certification ECU Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	X	X	X
		U0131	X	←	X
		U0142	X	X	X
		U0155	X	X	X
		U0163	X	X	X
	Radio Receiver Assembly*1	U0100	X	X	X
		U0126	X	X	X
		U0129	X	X	X
		U0140	X	X	X
		U0155	X	X	X
		U0164	X	X	X
		U0198	X	X	X
		U1110	←	X	X
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	X	X	X
		U0101	X	X	X
		U0120	X	X	←
		U0151	X	X	X
		U0155	X	X	X
		U0164	X	X	X
		U0198	X	X	X
		U0327	X	X	←
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	X	X	X
		U0101	X	X	X
		U0126	X	X	X
		U0129	X	X	X
		U0142	X	X	X
	Clearance Warning ECU Assembly	U0101	←	X	X
	Clearance Warning ECU Assembly	U0155	←	X	X
V Bus	ECM	U0122	X	X	X
	Power Steering ECU with Motor Assembly	U0100	X	←	X
	Power Steering ECU with Motor Assembly	U0129	X	←	X
	Certification ECU (Smart Key ECU Assembly)	U0100	X	X	←
		U0142	X	X	←
		U0155	X	X	←
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	X	X	←
		U0140	X	X	←
		U0155	X	X	←
	Combination Meter Assembly	U0100	X	X	X
		U0129	X	X	X
		U0131	X	←	X
		U0142	X	X	X
		U0151	X	X	X
		U0163	X	X	X
		U0182	X	X	X
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	X	X	X
		U0155	X	X	X
		U0163	X	X	X
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	X	X	X
		U0124	X	X	X
		U0126	X	X	X
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
Sub Bus 1	Rear Television Camera Assembly	U0126	X	X	X
		U0129	X	X	X
		U0140	-	-	-
		U0163	X	X	X
		U1110	←	X	X
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

-			Trouble Mode (Open in One CAN Branch Line)
-			V Bus
Output ECU		Output DTC	Steering Angle Sensor Communication Stop Mode. Refer to Steering Angle Sensor Communication Stop Mode [07/2015 - ]	Skid Control ECU Communication Stop Mode. Refer to Skid Control ECU Communication Stop Mode [07/2015 - ]	DCM Communication Stop Mode. Refer to DCM Communication Stop Mode [07/2015 - ]	DLC3
V Bus	Airbag Sensor Assembly	-	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	X	X	X	X
		U0131	X	X	X	X
		U0142	X	X	X	X
		U0155	X	X	X	X
		U0163	X	X	X	X
	Radio Receiver Assembly*1	U0100	X	X	X	X
		U0126	←	X	X	X
		U0129	X	←	X	X
		U0140	X	X	X	X
		U0155	X	X	X	X
		U0164	X	X	X	X
		U0198	X	X	X	X
		U1110	X	X	X	X
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	X	X	X	X
		U0101	X	X	X	X
		U0120	X	X	X	X
		U0151	X	X	X	X
		U0155	X	X	X	X
		U0164	X	X	X	X
		U0198	X	X	X	X
		U0327	X	X	X	X
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	X	X	X	X
		U0101	X	X	X	X
		U0126	←	X	X	X
		U0129	X	←	X	X
		U0142	X	X	X	X
	Clearance Warning ECU Assembly	U0101	X	X	X	X
	Clearance Warning ECU Assembly	U0155	X	X	X	X
V Bus	ECM	U0122	X	←	X	X
	Power Steering ECU with Motor Assembly	U0100	X	X	X	X
	Power Steering ECU with Motor Assembly	U0129	X	←	X	X
	Certification ECU (Smart Key ECU Assembly)	U0100	X	X	X	X
		U0142	X	X	X	X
		U0155	X	X	X	X
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	X	X	X	X
		U0140	X	X	X	X
		U0155	X	X	X	X
	Combination Meter Assembly	U0100	X	X	X	X
		U0129	X	←	X	X
		U0131	X	X	X	X
		U0142	X	X	X	X
		U0151	X	X	X	X
		U0163	X	X	X	X
		U0182	X	X	X	X
	Steering Sensor	-	-	-	-	-
	DCM (Telematics Transceiver)	U0142	X	X	←	X
		U0155	X	X	←	X
		U0163	X	X	X	X
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	X	←	X	X
		U0124	X	←	X	X
		U0126	X	←	X	X
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-	-
		U0200	-	-	-	-
		U0208	-	-	-	-
		U0209	-	-	-	-
		U0230	-	-	-	-
		U0265	-	-	-	-
		U1002	-	-	-	-
		U1115	-	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-	-
	Front Power Seat Switch LH	-	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-	-
Sub Bus 1	Rear Television Camera Assembly	U0126	X	X	-	-
		U0129	X	←	-	-
		U0140	-	-	-	-
		U0163	X	X	-	-
		U1110	X	X	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-	-

HINT:

←: DTC is likely to be output.
X: DTC is unlikely to be output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in Both CAN Branch Lines)
-			V Bus
Output ECU		Output DTC	Center Airbag Sensor Communication Stop Mode. Refer to Center Airbag Sensor Communication Stop Mode [07/2015 - ]	Air Conditioning Amplifier Communication Stop Mode. Refer to Air Conditioning Amplifier Communication Stop Mode [07/2015 - ]	Audio Receiver Assembly Communication Stop Mode. Refer to Audio Receiver Assembly Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	◦	-
		U0131	-	◦	-
		U0142	-	◦	-
		U0155	-	◦	-
		U0163	-	-	◦
	Radio Receiver Assembly*1	U0100	-	-	◦
		U0126	-	-	◦
		U0129	-	-	◦
		U0140	-	-	◦
		U0155	-	-	◦
		U0164	-	◦	◦
		U0198	-	-	◦
		U1110	-	-	◦
V Bus	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	-
		U0151	◦	-	-
		U0155	-	-	-
		U0164	-	◦	◦
		U0198	-	-	-
		U0327	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-
		U0142	-	-	-
		U0155	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-
		U0140	-	-	-
		U0155	-	-	-
	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0151	◦	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	◦
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	◦	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	◦	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0163	-	-	◦
		U1110	-	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

-			Trouble Mode (Open in Both CAN Branch Lines)
-			V Bus
Output ECU		Output DTC	Main Body ECU Communication Stop Mode. Refer to Main Body ECU Communication Stop Mode [07/2015 - ]	AFS ECU Communication Stop Mode. Refer to AFS ECU Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-
		U0131	-	-
		U0142	◦	-
		U0155	-	-
		U0163	-	-
	Radio Receiver Assembly*1	U0100	-	-
		U0126	-	-
		U0129	-	-
		U0140	-	-
		U0155	-	-
		U0164	-	-
		U0198	-	-
		U1110	-	-
V Bus	Main Body ECU (Multiplex Network Body ECU)*2	U0100	◦	-
		U0101	◦	-
		U0120	◦	-
		U0151	◦	-
		U0155	◦	-
		U0164	◦	-
		U0198	◦	-
		U0327	◦	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	◦
		U0101	-	◦
		U0126	-	◦
		U0129	-	◦
		U0142	◦	-
	Clearance Warning ECU Assembly	U0101	-	-
	Clearance Warning ECU Assembly	U0155	-	-
	ECM	U0122	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-
		U0142	◦	-
		U0155	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-
		U0140	◦	-
		U0155	-	-
	Combination Meter Assembly	U0100	-	-
		U0129	-	-
		U0131	-	-
		U0142	◦	-
		U0151	-	-
		U0163	-	-
		U0182	-	◦
	Steering Sensor	-	-	-
	DCM (Telematics Transceiver)	U0142	◦	-
		U0155	-	-
		U0163	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-
		U0124	-	-
		U0126	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-
		U0200	-	-
		U0208	-	-
		U0209	-	-
		U0230	-	-
		U0265	-	-
		U1002	-	-
		U1115	-	-
	Luggage Closer Motor Assembly	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-
	Front Power Seat Switch LH	-	-	-
	Front Power Seat Switch RH	-	-	-
	Rear Television Camera Assembly	U0126	◦	-
		U0129	◦	-
		U0140	-	-
		U0163	◦	-
		U1110	◦	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-

-			Trouble Mode (Open in Both CAN Branch Lines)
-			V Bus
Output ECU		Output DTC	Clearance Warning ECU Communication Stop Mode. Refer to Clearance Warning ECU Communication Stop Mode [07/2015 - ]	Power Steering ECU Communication Stop Mode. Refer to Power Steering ECU Communication Stop Mode [07/2015 - ]	Certification ECU Communication Stop Mode. Refer to Certification ECU Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-
		U0131	-	◦	-
		U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	◦	-	-
V Bus	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	◦
		U0151	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U0327	-	-	◦
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	◦	-	-
	Clearance Warning ECU Assembly	U0155	◦	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	◦	-
	Power Steering ECU with Motor Assembly	U0129	-	◦	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	◦
		U0142	-	-	◦
		U0155	-	-	◦
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	◦
		U0140	-	-	◦
		U0155	-	-	◦
	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	◦	-
		U0142	-	-	-
		U0151	-	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	-	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0163	-	-	-
		U1110	◦	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

-			Trouble Mode (Open in Both CAN Branch Lines)
-			V Bus
Output ECU		Output DTC	Steering Angle Sensor Communication Stop Mode. Refer to Steering Angle Sensor Communication Stop Mode [07/2015 - ]	Skid Control ECU Communication Stop Mode. Refer to Skid Control ECU Communication Stop Mode [07/2015 - ]	DCM Communication Stop Mode. Refer to DCM Communication Stop Mode [07/2015 - ]	DLC3
V Bus	Airbag Sensor Assembly	-	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
		U0163	-	-	-	-
V Bus	Radio Receiver Assembly*1	U0100	-	-	-	-
		U0126	◦	-	-	-
		U0129	-	◦	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	◦	-
		U1110	-	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-	-
		U0101	-	-	-	-
		U0120	-	-	-	-
		U0151	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	-	-
		U0327	-	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-	-
		U0101	-	-	-	-
		U0126	◦	-	-	-
		U0129	-	◦	-	-
		U0142	-	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-	-
	ECM	U0122	-	◦	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	◦	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
	Combination Meter Assembly	U0100	-	-	-	-
		U0129	-	◦	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0151	-	-	-	-
		U0163	-	-	-	-
		U0182	-	-	-	-
	Steering Sensor	-	-	-	-	-
V Bus	DCM (Telematics Transceiver)	U0142	-	-	◦	-
		U0155	-	-	◦	-
		U0163	-	-	◦	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	◦	-	-
		U0124	-	◦	-	-
		U0126	-	◦	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-	-
		U0200	-	-	-	-
		U0208	-	-	-	-
		U0209	-	-	-	-
		U0230	-	-	-	-
		U0265	-	-	-	-
		U1002	-	-	-	-
		U1115	-	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-	-
	Front Power Seat Switch LH	-	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-	-
	Rear Television Camera Assembly	U0126	-	-	-	-
		U0129	-	◦	-	-
		U0140	-	-	-	-
		U0163	-	-	-	-
		U1110	-	-	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-	-

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in One CAN Main Bus Line)
-			V Bus
Output ECU		Output DTC	Combination Meter ECU Communication Stop Mode. Refer to Combination Meter ECU Communication Stop Mode [07/2015 - ]	CAN Junction Connector LH1 to CAN Junction Connector RH1	ECM Communication Stop Mode. Refer to ECM Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	X	X	←
		U0131	X	←	X
		U0142	X	←	X
		U0155	←	←	X
		U0163	X	X	X
	Radio Receiver Assembly*1	U0100	X	X	←
		U0126	X	←	X
		U0129	X	X	X
		U0140	X	←	X
		U0155	←	←	X
		U0164	X	X	X
		U0198	-	-	-
		U1110	X	X	X
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	X	←	X
		U0101	X	←	X
		U0120	X	←	X
		U0151	X	X	X
		U0155	←	X	X
		U0164	X	←	X
		U0198	X	←	X
		U0327	X	←	X
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	X	←	←
		U0101	X	←	←
		U0126	X	X	X
		U0129	X	←	X
		U0142	X	←	X
	Clearance Warning ECU Assembly	U0101	X	X	←
	Clearance Warning ECU Assembly	U0155	←	←	X
	ECM	U0122	X	X	←
	Power Steering ECU with Motor Assembly	U0100	X	←	←
	Power Steering ECU with Motor Assembly	U0129	X	←	X
	Certification ECU (Smart Key ECU Assembly)	U0100	X	X	←
		U0142	X	←	X
		U0155	←	←	X
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	X	X	←
		U0140	X	←	X
		U0155	←	←	X
V Bus	Combination Meter Assembly	U0100	←	←	←
		U0129	←	←	X
		U0131	←	X	X
		U0142	←	X	X
		U0151	←	X	X
		U0163	←	←	X
		U0182	←	X	X
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	X	←	X
		U0155	←	←	X
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	X	X	←
		U0124	X	←	X
		U0126	X	←	X
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	X	←	X
		U0129	X	X	X
		U0140	X	←	X
		U0163	-	-	-
		U1110	X	X	X
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

HINT:

←: DTC is likely to be output.
X: DTC is unlikely to be output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in Both CAN Main Bus Lines)
-			V Bus
Output ECU		Output DTC	Combination Meter ECU Communication Stop Mode. Refer to Combination Meter ECU Communication Stop Mode [07/2015 - ]	CAN Junction Connector LH1 to CAN Junction Connector RH1	ECM Communication Stop Mode. Refer to ECM Communication Stop Mode [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	◦
		U0131	-	◦	-
		U0142	-	◦	-
		U0155	◦	◦	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	◦
		U0126	-	◦	-
		U0129	-	-	-
		U0140	-	◦	-
		U0155	◦	◦	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	◦	-
		U0101	-	◦	-
		U0120	-	◦	-
		U0151	-	-	-
		U0155	◦	-	-
		U0164	-	◦	-
		U0198	-	◦	-
		U0327	-	◦	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	◦	◦
		U0101	-	◦	◦
		U0126	-	-	-
		U0129	-	◦	-
		U0142	-	◦	-
	Clearance Warning ECU Assembly	U0101	-	-	◦
	Clearance Warning ECU Assembly	U0155	◦	◦	-
	ECM	U0122	-	-	◦
	Power Steering ECU with Motor Assembly	U0100	-	◦	◦
	Power Steering ECU with Motor Assembly	U0129	-	◦	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	◦
		U0142	-	◦	-
		U0155	◦	◦	-
V Bus	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	◦
		U0140	-	◦	-
		U0155	◦	◦	-
	Combination Meter Assembly	U0100	◦	◦	◦
		U0129	◦	◦	-
		U0131	◦	-	-
		U0142	◦	-	-
		U0151	◦	-	-
		U0163	◦	◦	-
		U0182	◦	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	◦	-
		U0155	◦	◦	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	◦
		U0124	-	◦	-
		U0126	-	◦	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-
		U0200	-	-	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	-	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	-	◦	-
		U0129	-	-	-
		U0140	-	◦	-
		U0163	-	-	-
		U1110	-	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (CAN Bus Lines Short Circuit or Short to GND)
-			V Bus
Output ECU		Output DTC	CANH - CANL CANH - Ground Short CANL - Ground Short
V Bus	Airbag Sensor Assembly	-	-
	Air Conditioning Amplifier Assembly	U0100	◦
		U0131	◦
		U0142	◦
		U0155	◦
		U0163	◦
	Radio Receiver Assembly*1	U0100	◦
		U0126	◦
		U0129	◦
		U0140	◦
		U0155	◦
		U0164	◦
		U0198	-
		U1110	◦
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	◦
		U0101	◦
		U0120	◦
		U0151	◦
		U0155	◦
		U0164	◦
		U0198	◦
		U0327	◦
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	◦
		U0101	◦
		U0126	◦
		U0129	◦
		U0142	◦
	Clearance Warning ECU Assembly	U0101	◦
	Clearance Warning ECU Assembly	U0155	◦
	ECM	U0122	◦
	Power Steering ECU with Motor Assembly	U0100	◦
	Power Steering ECU with Motor Assembly	U0129	◦
	Certification ECU (Smart Key ECU Assembly)	U0100	◦
		U0142	◦
		U0155	◦
V Bus	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	◦
		U0140	◦
		U0155	◦
	Combination Meter Assembly	U0100	◦
		U0129	◦
		U0131	◦
		U0142	◦
		U0151	◦
		U0163	◦
		U0182	◦
	Steering Sensor	-	-
	DCM (Telematics Transceiver)	U0142	◦
		U0155	◦
		U0163	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	◦
		U0124	◦
		U0126	◦
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-
		U0200	-
		U0208	-
		U0209	-
		U0230	-
		U0265	-
		U1002	-
		U1115	-
	Luggage Closer Motor Assembly	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-
	Front Power Seat Switch LH	-	-
	Front Power Seat Switch RH	-	-
	Rear Television Camera Assembly	U0126	◦
		U0129	◦
		U0140	◦
		U0163	-
		U1110	◦
	Multiplex Tilt and Telescopic ECU	U0142	-
	Multiplex Tilt and Telescopic ECU	U0208	-

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

DTC COMBINATION TABLE (OPEN OR SHORT IN SUB BUS 1, PAST COMMUNICATION ERROR)

Regarding a past communication error of an ECU and sensor connected to the sub bus 1 (in this case, normal is displayed when performing the CAN bus check, but communication DTCs are output), determine the part that had a malfunction based on DTCs output from the main body ECU (multiplex network body ECU).

HINT:

As gateway function equipped ECUs (sub bus monitor ECUs) monitor signals from all ECUs that are connected to sub buses, gateway function equipped ECUs can detect ECUs with a communication stop more accurately.
DTCs output from ECUs other than the main body ECU (multiplex network body ECU) (gateway function equipped ECU) are shown only as a reference.
Regarding a communication stop that is currently occurring in the sub bus 1, the malfunctioning part can be confirmed easily by performing the CAN Bus Check using the Techstream.
If an open occurs in just one of the lines of a CAN branch, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed.

-			Trouble Mode (Open in One CAN Branch Line)
-			Sub Bus 1
Output ECU		Output DTC	Luggage Closer Motor Assembly. Refer to DTC U0230: Lost Communication with Rear Gate Module [07/2015 - ]	Outer Mirror Control ECU Assembly (for Driver Side). Refer to DTC U0200: Lost Communication with "Door Control Module B" [07/2015 - ]	Outer Mirror Control ECU Assembly (for Front Passenger Side). Refer to DTC U0199: Lost Communication with "Door Control Module A" [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	-	-	-
V Bus	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	-
		U0151	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U0327	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-
		U0142	-	-	-
		U0155	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-
		U0140	-	-	-
		U0155	-	-	-
	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0151	-	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	-	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	X	X	←
		U0200	X	←	X
		U0208	X	X	X
		U0209	X	X	X
		U0230	←	X	X
		U0265	X	X	X
		U1002	X	X	X
		U1115	X	X	X
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	X	X	X
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	X	X	X
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	X	X	X
		U0129	X	X	X
		U0140	X	X	X
		U0163	X	X	X
		U1110	X	X	X
	Multiplex Tilt and Telescopic ECU	U0142	X	X	X
	Multiplex Tilt and Telescopic ECU	U0208	X	X	X

-			Trouble Mode (Open in One CAN Branch Line)
-			Sub Bus 1
Output ECU		Output DTC	Front Power Seat Switch LH. Refer to DTC U0208: Lost Communication with "Seat Control Module A" [07/2015 - ]	Front Power Seat Switch RH. Refer to DTC U0209: Lost Communication with "Seat Control Module B" [07/2015 - ]	Multiplex Tilt and Telescopic ECU. Refer to DTC U1115: Lost Communication with Tilt and Telescopic Module [07/2015 - ]	Rear Television Camera ECU Assembly. Refer to DTC U0265: Lost Communication with Parking Assist Monitor Module [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
		U0163	-	-	-	-
V Bus	Radio Receiver Assembly*1	U0100	-	-	-	-
		U0126	-	-	-	-
		U0129	-	-	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	-	-
		U1110	-	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-	-
		U0101	-	-	-	-
		U0120	-	-	-	-
		U0151	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	-	-
		U0327	-	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-	-
		U0101	-	-	-	-
		U0126	-	-	-	-
		U0129	-	-	-	-
		U0142	-	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-	-
	ECM	U0122	-	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
	Combination Meter Assembly	U0100	-	-	-	-
		U0129	-	-	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0151	-	-	-	-
		U0163	-	-	-	-
		U0182	-	-	-	-
	Steering Sensor	-	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-	-
		U0155	-	-	-	-
		U0163	-	-	-	-
V Bus	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-	-
		U0124	-	-	-	-
		U0126	-	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	X	X	X	X
		U0200	X	X	X	X
		U0208	←	X	X	X
		U0209	X	←	X	X
		U0230	X	X	X	X
		U0265	X	X	X	←
		U1002	X	X	X	X
		U1115	X	X	←	X
	Luggage Closer Motor Assembly	-	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	X	X	X	X
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	X	X	X	X
	Front Power Seat Switch LH	-	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-	-
	Rear Television Camera Assembly	U0126	X	X	X	←
		U0129	X	X	X	←
		U0140	X	X	X	←
		U0163	X	X	X	←
		U1110	X	X	X	←
	Multiplex Tilt and Telescopic ECU	U0142	X	X	←	X
	Multiplex Tilt and Telescopic ECU	U0208	X	X	←	X

HINT:

←: DTC is likely to be output.
X: DTC is unlikely to be output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in Both CAN Branch Lines)
-			Sub Bus 1
Output ECU		Output DTC	Luggage Closer Motor Assembly. Refer to DTC U0230: Lost Communication with Rear Gate Module [07/2015 - ]	Outer Mirror Control ECU Assembly (for Driver Side). Refer to DTC U0200: Lost Communication with "Door Control Module B" [07/2015 - ]	Outer Mirror Control ECU Assembly (for Front Passenger Side). Refer to DTC U0199: Lost Communication with "Door Control Module A" [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	-
		U0151	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U0327	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-
		U0142	-	-	-
		U0155	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-
		U0140	-	-	-
		U0155	-	-	-
V Bus	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0151	-	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	-	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	◦
		U0200	-	◦	-
		U0208	-	-	-
		U0209	-	-	-
		U0230	◦	-	-
		U0265	-	-	-
		U1002	-	-	-
		U1115	-	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0163	-	-	-
		U1110	-	-	-
	Multiplex Tilt and Telescopic ECU	U0142	-	-	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	-

-			Trouble Mode (Open in Both CAN Branch Lines)
-			Sub Bus 1
Output ECU		Output DTC	Front Power Seat Switch LH. Refer to DTC U0208: Lost Communication with "Seat Control Module A" [07/2015 - ]	Front Power Seat Switch RH. Refer to DTC U0209: Lost Communication with "Seat Control Module B" [07/2015 - ]	Multiplex Tilt and Telescopic ECU. Refer to DTC U1115: Lost Communication with Tilt and Telescopic Module [07/2015 - ]	Rear Television Camera ECU Assembly. Refer to DTC U0265: Lost Communication with Parking Assist Monitor Module [07/2015 - ]
V Bus	Airbag Sensor Assembly	-	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
		U0163	-	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-	-
		U0126	-	-	-	-
		U0129	-	-	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	-	-
		U1110	-	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-	-
		U0101	-	-	-	-
		U0120	-	-	-	-
		U0151	-	-	-	-
		U0155	-	-	-	-
		U0164	-	-	-	-
		U0198	-	-	-	-
		U0327	-	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-	-
		U0101	-	-	-	-
		U0126	-	-	-	-
		U0129	-	-	-	-
		U0142	-	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-	-
	ECM	U0122	-	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-	-
		U0142	-	-	-	-
		U0155	-	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-	-
		U0140	-	-	-	-
		U0155	-	-	-	-
V Bus	Combination Meter Assembly	U0100	-	-	-	-
		U0129	-	-	-	-
		U0131	-	-	-	-
		U0142	-	-	-	-
		U0151	-	-	-	-
		U0163	-	-	-	-
		U0182	-	-	-	-
	Steering Sensor	-	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-	-
		U0155	-	-	-	-
		U0163	-	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-	-
		U0124	-	-	-	-
		U0126	-	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	-	-	-	-
		U0200	-	-	-	-
		U0208	◦	-	-	-
		U0209	-	◦	-	-
		U0230	-	-	-	-
		U0265	-	-	-	◦
		U1002	-	-	-	-
		U1115	-	-	◦	-
	Luggage Closer Motor Assembly	-	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	-	-	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	-	-	-	-
	Front Power Seat Switch LH	-	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-	-
	Rear Television Camera Assembly	U0126	-	-	-	◦
		U0129	-	-	-	◦
		U0140	-	-	-	◦
		U0163	-	-	-	◦
		U1110	-	-	-	◦
	Multiplex Tilt and Telescopic ECU	U0142	-	-	◦	-
	Multiplex Tilt and Telescopic ECU	U0208	-	-	◦	-

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in One CAN Main Bus Line)
-			Sub Bus 1
Output ECU		Output DTC	Main Body ECU (Multiplex Network Body ECU). Refer to DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [07/2015 - ] )	CAN Junction Connector LH2 to CAN Junction Connector RH2	CAN Junction Connector RH2 to CAN No. 1 Junction Terminal
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	-
		U0151	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U0327	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-
		U0142	-	-	-
		U0155	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-
		U0140	-	-	-
		U0155	-	-	-
V Bus	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0151	-	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	-	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	←	X	X
		U0200	←	←	X
		U0208	←	X	X
		U0209	←	←	X
		U0230	←	X	X
		U0265	←	X	X
		U1002	←	X	X
		U1115	←	X	X
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	←	X	X
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	←	←	X
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	←	X	X
		U0129	←	X	X
		U0140	←	X	X
		U0163	←	X	X
		U1110	←	X	X
	Multiplex Tilt and Telescopic ECU	U0142	←	X	X
	Multiplex Tilt and Telescopic ECU	U0208	←	X	X

HINT:

←: DTC is likely to be output.
X: DTC is unlikely to be output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (Open in Both CAN Main Bus Lines)
-			Sub Bus 1
Output ECU		Output DTC	Main Body ECU (Multiplex Network Body ECU). Refer to DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [07/2015 - ] )	CAN Junction Connector LH2 to CAN Junction Connector RH2	CAN Junction Connector RH2 to CAN No. 1 Junction Terminal
V Bus	Airbag Sensor Assembly	-	-	-	-
	Air Conditioning Amplifier Assembly	U0100	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Radio Receiver Assembly*1	U0100	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0140	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U1110	-	-	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-	-	-
		U0101	-	-	-
		U0120	-	-	-
		U0151	-	-	-
		U0155	-	-	-
		U0164	-	-	-
		U0198	-	-	-
		U0327	-	-	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-	-	-
		U0101	-	-	-
		U0126	-	-	-
		U0129	-	-	-
		U0142	-	-	-
	Clearance Warning ECU Assembly	U0101	-	-	-
	Clearance Warning ECU Assembly	U0155	-	-	-
	ECM	U0122	-	-	-
	Power Steering ECU with Motor Assembly	U0100	-	-	-
	Power Steering ECU with Motor Assembly	U0129	-	-	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-	-	-
		U0142	-	-	-
		U0155	-	-	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-	-	-
		U0140	-	-	-
		U0155	-	-	-
V Bus	Combination Meter Assembly	U0100	-	-	-
		U0129	-	-	-
		U0131	-	-	-
		U0142	-	-	-
		U0151	-	-	-
		U0163	-	-	-
		U0182	-	-	-
	Steering Sensor	-	-	-	-
	DCM (Telematics Transceiver)	U0142	-	-	-
		U0155	-	-	-
		U0163	-	-	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-	-	-
		U0124	-	-	-
		U0126	-	-	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	◦	-	-
		U0200	◦	◦	-
		U0208	◦	-	-
		U0209	◦	◦	-
		U0230	◦	-	-
		U0265	◦	-	-
		U1002	◦	-	-
		U1115	◦	-	-
	Luggage Closer Motor Assembly	-	-	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	◦	-	-
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	◦	◦	-
	Front Power Seat Switch LH	-	-	-	-
	Front Power Seat Switch RH	-	-	-	-
	Rear Television Camera Assembly	U0126	◦	-	-
		U0129	◦	-	-
		U0140	◦	-	-
		U0163	◦	-	-
		U1110	◦	-	-
	Multiplex Tilt and Telescopic ECU	U0142	◦	-	-
	Multiplex Tilt and Telescopic ECU	U0208	◦	-	-

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

-			Trouble Mode (CAN Bus Lines Short Circuit or Short to GND)
-			Sub Bus 1
Output ECU		Output DTC	CANH - CANL CANH - Ground Short CANL - Ground Short
V Bus	Airbag Sensor Assembly	-	-
	Air Conditioning Amplifier Assembly	U0100	-
		U0131	-
		U0142	-
		U0155	-
		U0163	-
	Radio Receiver Assembly*1	U0100	-
		U0126	-
		U0129	-
		U0140	-
		U0155	-
		U0164	-
		U0198	-
		U1110	-
	Main Body ECU (Multiplex Network Body ECU)*2	U0100	-
		U0101	-
		U0120	-
		U0151	-
		U0155	-
		U0164	-
		U0198	-
		U0327	-
	Headlight Leveling ECU (Headlight Swivel ECU Assembly)1 Headlight Swivel ECU Assembly1	U0100	-
		U0101	-
		U0126	-
		U0129	-
		U0142	-
	Clearance Warning ECU Assembly	U0101	-
	Clearance Warning ECU Assembly	U0155	-
	ECM	U0122	-
	Power Steering ECU with Motor Assembly	U0100	-
	Power Steering ECU with Motor Assembly	U0129	-
	Certification ECU (Smart Key ECU Assembly)	U0100	-
		U0142	-
		U0155	-
	Certification ECU (Smart Key ECU Assembly) (Power Source Switching Function)	U0100	-
		U0140	-
		U0155	-
V Bus	Combination Meter Assembly	U0100	-
		U0129	-
		U0131	-
		U0142	-
		U0151	-
		U0163	-
		U0182	-
	Steering Sensor	-	-
	DCM (Telematics Transceiver)	U0142	-
		U0155	-
		U0163	-
	Brake Actuator Assembly (Skid Control ECU)*1	U0100	-
		U0124	-
		U0126	-
Sub Bus 1	Main Body ECU (Multiplex Network Body ECU)*2	U0199	◦
		U0200	◦
		U0208	◦
		U0209	◦
		U0230	◦
		U0265	◦
		U1002	◦
		U1115	◦
	Luggage Closer Motor Assembly	-	-
	Outer Mirror Control ECU Assembly (for Driver Side)	U0142	◦
	Outer Mirror Control ECU Assembly (for Front Passenger Side)	U0142	◦
	Front Power Seat Switch LH	-	-
	Front Power Seat Switch RH	-	-
	Rear Television Camera Assembly	U0126	◦
		U0129	◦
		U0140	◦
		U0163	◦
		U1110	◦
	Multiplex Tilt and Telescopic ECU	U0142	◦
	Multiplex Tilt and Telescopic ECU	U0208	◦

HINT:

◦: DTC is output.
-: DTC is not output.
*1: DTC U0073 may be stored when communication is lost.
*2: Gateway function equipped ECUs relay signals between the ECUs connected to the different buses.

CAN BUS WAVEFORMS

Fig 11: Identifying CAN BUS Lines
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:
- This waveform is measured between terminals CANH and GND, and terminals CANL and GND of the DLC3. (Use this as a reference for diagnosis of CAN communication lines.)
- When malfunctions in multiple ECUs are suspected based on the CAN bus check and DTCs checked using the Techstream, check the resistance of the CAN bus using an ohmmeter first. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [07/2015 - ] If no problems are found, check the following waveforms.
- If a waveform is not similar to one of the following 3 patterns (Group 1), then an open in a CAN main bus line, an open in a CAN branch line, or a short between a CAN line (CANH or CANL) and ground is suspected (Group 2).
- Wiggle the connector and wire harness to check if the waveform changes.
1. CAN bus waveforms (Group 1)
  1. Normal waveform

    Fig 12: Normal Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Open in both of the lines (CANH and CANL) of a CAN branch

    Fig 13: Open In Both Of The Lines (CANH And CANL) Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Waveforms (waveforms shown using dotted lines) are not present from an ECU or sensor connected to a CAN branch with an open circuit in both lines. (Waveforms from other ECUs or sensors are normal.)
    - Because this waveform is similar to a normal waveform, instead of using the waveform, the malfunctioning part can be narrowed down by performing a CAN bus check.
  3. Short between the CAN bus lines (CANH and CANL)

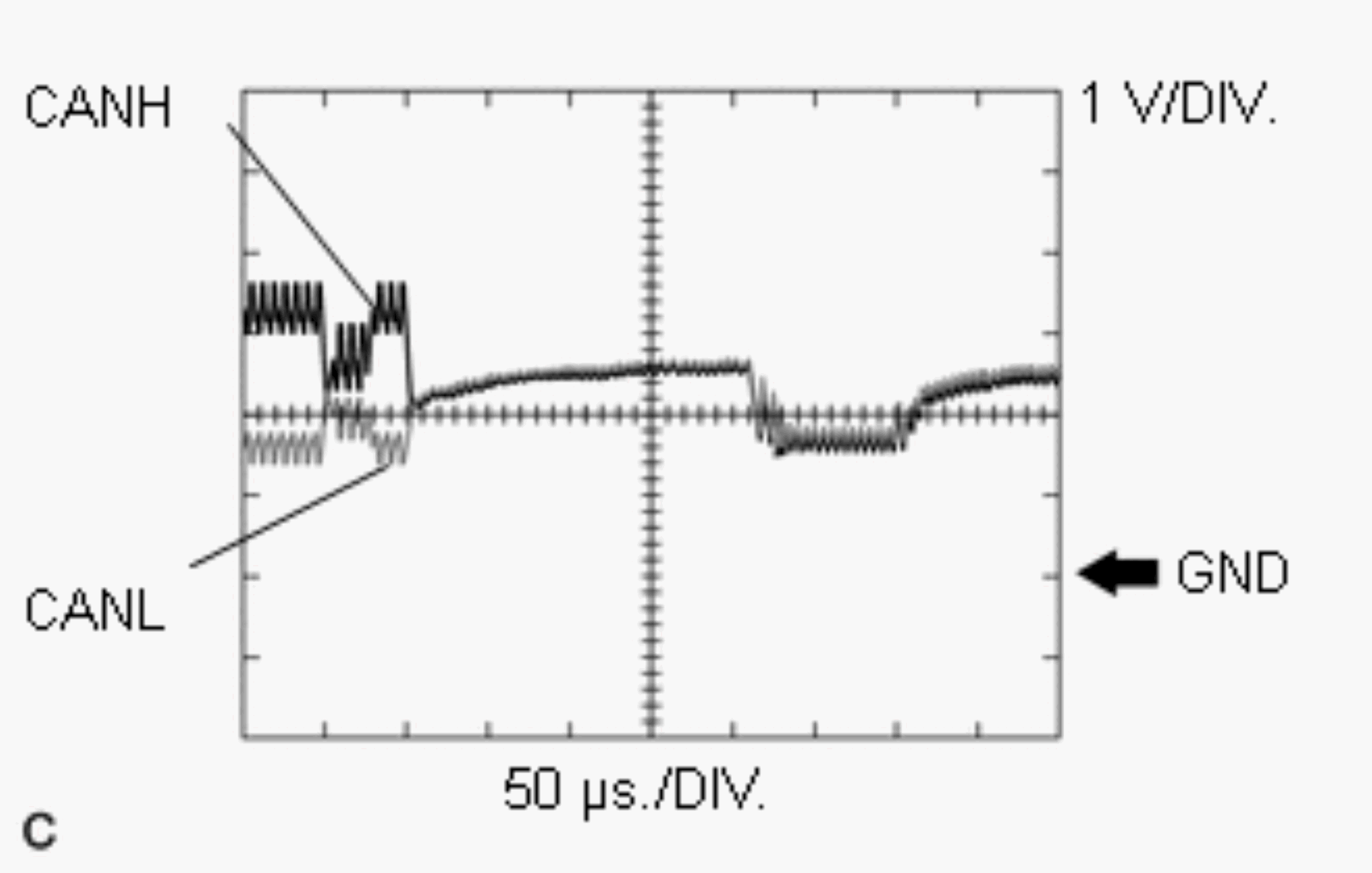

    Fig 14: Short Between The CAN Bus Lines (CANH And CANL) Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Waveforms disappear.
    - If the malfunction is in an ECU, disconnecting the ECU will change the waveform. If the waveform does not change, a malfunction in the wire harness is suspected.
2. CAN bus waveforms (reference) (Group 2)
  NOTE:
  The following CAN bus waveforms can be used only as reference. The actual measured waveform may differ significantly depending on the location of the open or short circuit.
  1. Open in a CAN branch line (CANH)

    Fig 15: Open In A CAN Branch Line (CANH) Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
    - Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.
  2. Open in a CAN branch line (CANL)

    Fig 16: Open In A CAN Branch Line (CANL) Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - An abnormal waveform is output from an ECU with an open in one of its CAN branch lines. Because this abnormal output interferes with the signals from other ECUs, the output of other ECUs will also appear abnormal.
    - Narrow down the malfunctioning part by checking DTCs or performing a CAN bus check, or by checking waveform changes when ECUs or sensors are disconnected. The waveform will change to one for an open in both sides of a CAN branch when the ECU or sensor with an open CAN branch line is disconnected.
  3. Open in a CAN main bus line (CANH)

    Fig 17: Open In A CAN Main Bus Line (CANH) Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Waveforms of ECUs or sensors that are closer to the DLC3 than the open part are almost normal.
    - Waveforms of ECUs or sensors that are on the opposite side of the DLC3 from the open part are abnormal.
    - An open in a CAN main bus line can be confirmed by measuring the resistance between the CANH and CANL terminals of any CAN branch.
  4. Short between a CAN bus line (CANH) and ground

    Fig 18: Short Between A CAN Bus Line (CANH) And Ground Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
    - A short to ground in the CANH line can be confirmed by measuring the resistance between CANH and ground using an ohmmeter.
  5. Short between a CAN bus line (CANL) and ground

    Fig 19: Short Between A CAN Bus Line (CANL) And Ground Waveform
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    HINT:
    - Narrow down the shorted part by checking for waveform changes when disconnecting connectors from the CAN junction connectors or when disconnecting ECUs or sensors.
    - A short to ground in the CANL line can be confirmed by measuring the resistance between CANL and ground using an ohmmeter.

DATA SENDING/RECEIVING TABLE

Data sending/receiving table

HINT:

If Data List items related to sent/received data are not displayed properly, the part for which communication is interrupted can be determined using the table below.

Data Content	Data Detected and Sent by	Data Received by (Can be Checked in the Data List)	Data Received by (Cannot be Checked in the Data List)	Relevant Data List Item [Selected System]
Accelerator position	ECM	Brake actuator assembly (skid control ECU)	Radio receiver assembly	Accelerator Position [Engine] Accelerator Opening Angle % [ABS/VSC/ TRAC]
Engine speed	ECM	Power steering ECU with motor assembly Brake actuator assembly (skid control ECU) Combination meter assembly Certification ECU (smart key ECU assembly)	Airbag sensor assembly Air conditioning amplifier assembly Radio receiver assembly Main body ECU (multiplex network body ECU) DCM (telematics transceiver)	Engine Speed [Engine] Engine Revolution [EMPS] Engine Revolutions [ABS/VSC/TRAC] Engine Rpm [Combination Meter] Engine Speed [Starting Control]
Engine coolant temperature	ECM	Air conditioning amplifier assembly Combination meter assembly	Radio receiver assembly	Coolant Temp [Engine] Engine Coolant Temp [Air Conditioner] Coolant Temperature [Combination Meter]
Vehicle speed	Brake actuator assembly (skid control ECU)	ECM Power steering ECU with motor assembly Combination meter assembly*3 Radio receiver assembly Rear television camera assembly	Airbag sensor assembly DCM (telematics transceiver)	Vehicle Speed [ABS/ VSC/TRAC] Vehicle Speed [Engine] Meter Vehicle Velocity [EMPS] Vehicle Speed Meter [Combination Meter] Vehicle Speed [Navigation System] Wheel Speed Sensor (4 wheel) [Advanced Parking Guidance / Parking Assist Monitor]
Vehicle speed	Combination meter assembly *3	Clearance warning ECU assembly Certification ECU (smart key ECU assembly) Front power seat switch LH Front power seat switch RH Multiplex tilt and telescopic ECU	Air conditioning amplifier assembly Main body ECU (multiplex network body ECU) Luggage closer motor assembly DCM (telematics transceiver) Airbag sensor assembly	Vehicle Speed Meter [Combination Meter] Vehicle Speed Info [Intuitive P/A] Vehicle Speed Signal [Power Source Control] Vehicle Speed [Driver Seat] Vehicle Speed [Passenger Seat] Freeze Speed Info [Tilt & Telescopic]
Wheel speed	Brake actuator assembly (skid control ECU)	Headlight leveling ECU (headlight swivel ECU assembly)5 Headlight swivel ECU assembly6	ECM Power steering ECU with motor assembly Airbag sensor assembly	FR Wheel Speed [ABS/VSC/TRAC] FL Wheel Speed [ABS/VSC/TRAC] RR Wheel Speed [ABS/VSC/TRAC] RL Wheel Speed [ABS/VSC/TRAC] FR Wheel Speed [AFS] FL Wheel Speed [AFS]
Shift position	ECM	Clearance warning ECU assembly Radio receiver assembly Certification ECU (smart key ECU assembly) Brake actuator assembly (skid control ECU) Front power seat switch LH Front power seat switch RH	Airbag sensor assembly Combination meter assembly2 Main body ECU (multiplex network body ECU) Luggage closer motor assembly Rear television camera assembly DCM (telematics transceiver) Headlight swivel ECU assembly6	Neutral Position SW Signal [Engine] Parking Signal [Intuitive P/A] Reverse Signal [Intuitive P/A] Reverse Signal [Navigation System] Shift P Signal [Power Source Control] Shift Lever Position [ABS/VSC/TRAC] P Switch [Driver Seat] P Switch [Passenger Seat]
Ambient temperature	Air conditioning amplifier assembly	ECM Combination meter assembly	Main body ECU (multiplex network body ECU) Radio receiver assembly DCM (telematics transceiver)	Ambient Temp for A/C [Engine] Ambient Temperature [Combination Meter] Ambient Temp Sensor [Air Conditioner]
Driver door courtesy switch	Main body ECU (multiplex network body ECU)	-	Certification ECU (smart key ECU assembly) Combination meter assembly *2 Radio receiver assembly DCM (telematics transceiver)	FL Door Courtesy SW [Main Body]
Steering angle sensor	Steering sensor	Power steering ECU with motor assembly Brake actuator assembly (skid control ECU) Headlight swivel ECU assembly*6	Airbag sensor assembly Radio receiver assembly Rear television camera assembly	Steering Angle Velocity [EMPS] Steering Angle Sensor [ABS/VSC/TRAC] Steering Sens Signal [AFS]
Yaw rate sensor	Airbag sensor assembly	Brake actuator assembly (skid control ECU)	Power steering ECU with motor assembly	Yaw Rate Sensor [ABS/VSC/TRAC]
Deceleration sensor	Airbag sensor assembly	Brake actuator assembly (skid control ECU)	ECM Power steering ECU with motor assembly	Deceleration Sensor [ABS/VSC/TRAC] Deceleration Sensor2 [ABS/VSC/TRAC]
Driver side buckle switch signal	Airbag sensor assembly	-	Main body ECU (multiplex network body ECU) DCM (telematics transceiver)	Left Side Buckle SW [SRS Airbag]
Driver side buckle switch signal	Main body ECU (multiplex network body ECU)*4	-	Combination meter assembly DCM (telematics transceiver)	-
Passenger side buckle switch signal	Airbag sensor assembly	Combination meter assembly	DCM (telematics transceiver)	Right Side Buckle SW [SRS Airbag] P-Seatbelt Buckle SW [Combination Meter]
Side turn signal	Combination meter assembly	-	-	Turn Signal Switch (Left) [Combination Meter] Turn Signal Switch (Right) [Combination Meter]
Engine switch condition	Main body ECU (multiplex network body ECU)	Front power seat switch LH Front power seat switch RH Multiplex tilt and telescopic ECU Luggage closer motor assembly	Outer mirror control ECU assembly (for driver side) Outer mirror control ECU assembly (for front passenger side) Certification ECU (smart key ECU assembly) Rear television camera assembly DCM (telematics transceiver)	IG SW [Main Body] Ignition Switch [Driver Seat] Ignition Switch [Passenger Seat] IG Switch (CAN) [Tilt & Telescopic] IG SW [Back Door]
Headlight (high beam)	Main body ECU (multiplex network body ECU)	Headlight leveling ECU (headlight swivel ECU assembly)5 Headlight swivel ECU assembly6	Combination meter assembly*2 Air conditioning amplifier assembly	Dimmer SW [Main Body] Headlight High Beam State [AFS]
Combination meter assembly power source voltage*1	Combination meter assembly	-	-	+B Voltage Value [Combination Meter]
Power steering ECU with motor assembly power source voltage*1	Power steering ECU with motor assembly	-	-	IG Power Supply [EMPS]
Solar sensor*1	Air conditioning amplifier assembly	-	-	Solar Sensor (D side) [Air Conditioner]
Engine switch condition*1	Certification ECU (smart key ECU assembly)	-	-	Ignition Switch [Smart Access]
Clearance sonar main switch*1	Clearance warning ECU assembly	-	-	Main Switch [Intuitive P/A]
ECM power source voltage*1	ECM	-	-	Battery Voltage [Engine]
Radio receiver assembly power source voltage*1	Radio receiver assembly	-	-	Battery Voltage [Navigation System]
Outer mirror control ECU assembly (for driver side) power source voltage*1	Outer mirror control ECU assembly (for driver side)	-	-	+B Voltage Input Value [Mirror L]
Outer mirror control ECU assembly (for front passenger side) power source voltage*1	Outer mirror control ECU assembly (for front passenger side)	-	-	+B Voltage Input Value [Mirror R]
Front power seat switch LH power source voltage*1	Front power seat switch LH	-	-	Power Voltage [Driver Seat]
Front power seat switch RH power source voltage*1	Front power seat switch RH	-	-	Power Voltage [Passenger Seat]
Tilt up switch condition*1	Multiplex tilt and telescopic ECU	-	-	Tilt Up Switch [Tilt & Telescopic]
Door control switch condition*1	Luggage closer motor assembly	-	-	PBD Close SW [Back Door]

*1: Whether the ECU that sends data is functioning or not can be judged by using the Techstream to check items such as switches or sensors that send signals to the ECU via direct lines.

*2: Although the received contents cannot be checked in the Data List, whether or not the data is received normally can be checked by observing the combination meter assembly.

*3: The combination meter assembly receives a vehicle speed signal from the brake actuator assembly (skid control ECU) and sends the signal to other ECUs.

*4: The main body ECU (multiplex network body ECU) receives a driver seat buckle switch signal from the airbag sensor assembly and sends the signal to other ECUs.

*5: w/ Automatic Headlight Beam Level Control System

*6: w/ Adaptive Front-lighting System

Details of relevant Data List items (Selected system: Engine)

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.
The actual values may differ from the values listed in the chart under "Results of real-vehicle check" due to climate, weather conditions, etc.
The values listed under "Results of real-vehicle check" are those of an inspection performed in NORMAL mode. The actual values may differ if inspected in ECO or SPORT mode.

HINT:

Normal Condition: If no conditions are specifically stated for "idling", the shift lever should be in N or P, the A/C switch should be off and all accessory switches should be off.

Warm up the engine.
Turn the A/C switch off.
Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Powertrain / Engine / Data List.

According to the display on the Techstream, read the "Data List".

ENGINE

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Vehicle Speed	Vehicle speed/ Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph)	Actual vehicle speed	This is the current vehicle speed. The vehicle speed is detected using the wheel speed sensors. Vehicle speed data is delayed when it is displayed. Therefore, even if the vehicle speed listed in the freeze frame data is 0 km/h (0 mph), this does not always mean that the malfunction occurred when the vehicle was stopped. To accurately confirm whether the vehicle was stopped or not, use "SPD (NO)", which is the automatic transaxle output speed.
Engine Speed	Engine speed/ Min.: 0 rpm, Max.: 16383 rpm	600 to 700 rpm: Idling	When the crankshaft position sensor is malfunctioning, "Engine Speed" is approximately 0 rpm or varies greatly from the actual engine speed.
Coolant Temp	Coolant temperature/ Min.: -40°C (-40°F), Max.: 140°C (284°F)	75 to 100°C (167 to 212°F): After warming up	This is the engine coolant temperature. HINT: After warming up the engine, the engine coolant temperature is 75 to 100°C (167 to 212°F). After a long soak, the engine coolant temperature, intake air temperature and ambient air temperature are approximately equal. If the value is -40°C (-40°F), or higher than 135°C (275°F), the sensor circuit is open or shorted. Check if the engine overheats when the value indicates higher than 135°C (275°F).
Battery Voltage	Battery voltage/ Min.: 0 V, Max.: 65.535 V	11 to 14 V: Idling	If 11 V or less, characteristics of some electrical components may change.
Accelerator Position	Accelerator pedal position/ Min.: 0%, Max.: 399.9%	Actual accelerator pedal position	This is the accelerator pedal position defined using the learned fully released position (sensor output) of accelerator pedal position sensor No. 1 as 0% and the fully depressed position as 100%.
Neutral Position SW Signal	Park/neutral position switch status/ ON or OFF	ON: Shift lever in P or N	-
Ambient Temp for A/C	Ambient temperature for A/C/ Min.: -40°C (-40°F), Max.: 215°C (419°F)	-	-

Details of relevant Data List items (Selected system: ABS/VSC/TRAC)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Warm up the engine.
Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

According to the display on the Techstream, read the "Data List".

ABS/VSC/TRAC

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Shift Lever Position	Shift lever position information / P, N, R, D/M, 1st-6th/B or Fail	Actual shift lever position	-
Deceleration Sensor	Acceleration sensor reading / Min.: -18.525 m/s² , Max.: 18.387 m/s²	-	During deceleration/acceleration: Changes continuously
Deceleration Sensor2	Acceleration sensor 2 reading / Min.: -18.525 m/s² , Max.: 18.387 m/s²	-	During deceleration/acceleration: Changes continuously
Yaw Rate Sensor	Yaw rate sensor / Min.: -128 °/s, Max.: 127 °/s	Vehicle stopped: 0 °/s Turning right: -128 to 0 °/s Turning left: 0 to 127 °/s	-
Steering Angle Sensor	Steering angle sensor / Min.: -3276.8 °, Max.: 3276.7 °	Turning left: Increases Turning right: Decreases	-
FR Wheel Speed	Front wheel speed sensor RH reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
FL Wheel Speed	Front wheel speed sensor LH reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
RR Wheel Speed	Rear wheel speed sensor RH reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
RL Wheel Speed	Rear wheel speed sensor LH reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
Vehicle Speed	Maximum wheel speed sensor reading / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations
Engine Revolutions	Engine speed / Min.: 0 rpm, Max.: 65535 rpm	Engine stopped: 0 rpm	When engine speed is constant: No large fluctuations
Accelerator Opening Angle %	Percentage of accelerator pedal opening angle/ Min.: 0.0%, Max.: 128.0%	Accelerator pedal released: 0.0%	During accelerator pedal operation: Changes in proportion with the pedal movement

Details of relevant Data List items (Selected system: EMPS)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Chassis / EMPS / Data List.

According to the display on the Techstream, read the "Data List".

EMPS

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Meter Vehicle Velocity	Vehicle speed from speedometer/ Min.: 0.0 km/h (0.0 MPH) Max.: 300.0 km/h (186.4 MPH)	0 km/h (0 MPH)	Engine running and vehicle stopped
Meter Vehicle Velocity		No significant fluctuation	Engine running and vehicle driven at a constant speed
Engine Revolution	Engine speed/ Min.: 0 rpm Max.: 12800 rpm	No significant fluctuation	Engine running at a constant speed
IG Power Supply	IG power source voltage/ Min.: 0.0000 V Max.: 20.1531 V	8 to 16 V	Engine switch on (IG)
Steering Angle Velocity	Steering angle speed/ Min.: -32768 deg/s Max.: 32767 deg/s	Value changes in proportion to steering speed - The value increases when turning left and decreases when turning right	Engine running and steering wheel being turned

Details of relevant Data List items (Selected system: Navigation System)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Navigation System / Data List.

According to the display on the Techstream, read the "Data List".

NAVIGATION SYSTEM

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Battery Voltage	Battery voltage/ Min.: 0 V, Max.:24 V	11 to 14 V	-
Reverse Signal	Reverse Signal/ON or OFF	ON: Shift lever in R OFF: Shift lever not in R	-
Vehicle Speed	Maximum wheel speed sensor reading/Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph)	Vehicle stopped: 0 km/h (0 mph)	When driving at constant speed: No large fluctuations

Details of relevant Data List items (Selected system: Intuitive P/A)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the clearance sonar main switch on.
Turn the Techstream on.
Enter the following menus: Body Electrical / Intuitive P/A / Data List.

According to the display on the Techstream, read the "Data List".

INTUITIVE P/A

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Main Switch	Clearance sonar main switch/OFF or ON	OFF: Clearance sonar main switch off ON: Clearance sonar main switch on	-
Parking Signal	Parking signal/OFF or ON	OFF: Shift lever in any position except P ON: Shift lever in P	-
Reverse Signal	Reverse signal/OFF or ON	OFF: Shift lever in any position except R ON: Shift lever in R	-
Vehicle Speed Info	Vehicle speed signal/Snr Stop or Snr Work	Snr Stop: Vehicle speed 15 km/h (9.3 mph) or more (when accelerating) or 10 km/h (6.2 mph) or more (when decelerating) Snr Work: Vehicle speed less than 15 km/h (9.3 mph) (when accelerating) or less than 10 km/h (6.2 mph) (when decelerating)	-

Details of relevant Data List items (Selected system: Smart Access)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.
When using the Techstream with the engine switch off to troubleshoot:
Connect the Techstream to the DLC3 and turn a courtesy light switch on and off at 1.5-second intervals until communication between the Techstream and vehicle begins.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Smart Access / Data List.

According to the display on the Techstream, read the "Data List".

SMART ACCESS

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Ignition Switch	Engine switch on (IG) / ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	Displays whether the IG power source signal input is on or off. Use this Data List item to help determine the cause when all smart access system with push-button start/wireless functions do not operate. If the electrical key transmitter sub-assembly is brought inside the vehicle and the engine switch is pressed twice without depressing the brake pedal, the engine switch will turn on (IG). At this time, the key ID code transmitted from the electrical key transmitter sub-assembly and the key ID code stored in the certification ECU (smart key ECU assembly) are compared, and the S code stored in the certification ECU (smart key ECU assembly) and the code stored in the ID code box (immobiliser code ECU) are compared, and if all codes match, the power source mode is considered on (IG) at that time.

Details of relevant Data List items (Selected system: Power Source Control)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Power Source Control / Data List.

According to the display on the Techstream, read the "Data List".

POWER SOURCE CONTROL

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Shift P Signal	Shift position P/ON or OFF	ON: Shift lever in P OFF: Shift lever not in P	Use this item to determine if the shift position switch is malfunctioning. The engine cannot be started when this item is OFF.
Vehicle Speed Signal	Vehicle being driven or stopped/Stop or Run	Stop: Vehicle stopped Run: Vehicle being driven at 5 km/h (3 mph) or more	-

Details of relevant Data List items (Selected system: Starting Control)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Starting Control / Data List.

According to the display on the Techstream, read the "Data List".

STARTING CONTROL

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Engine Speed	Engine speed/0 to 16383 r/min	Fluctuates in accordance with engine speed	-

Details of relevant Data List items (Selected system: Combination Meter)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Warm up the engine.
Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Combination Meter / Data List.

According to the display on the Techstream, read the "Data List".

COMBINATION METER

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
P-Seatbelt Buckle SW	Front passenger seat belt buckle switch/OFF or ON	OFF: Front passenger seat belt fastened (warning light off)	-
P-Seatbelt Buckle SW	Front passenger seat belt buckle switch/OFF or ON	ON: Front passenger seat belt unfastened (warning light on)	-
Vehicle Speed Meter	Vehicle speed/Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph)	Almost the same as actual vehicle speed	-
Engine Rpm	Engine speed/Min.: 0 rpm, Max.: 12750 rpm	Almost the same as actual engine speed	-
Coolant Temperature	Engine coolant temperature/Min.: 0°C (32°F), Max.: 127.5°C (261.5°F)	After warming up: 75 to 100°C (167 to 212°F)	-
+B Voltage Value	Battery voltage/Min.: 0 V, Max.: 25.5 V	11 to 14 V	-
Ambient Temperature	Outside temperature/Min.: -40°C (-40°F), Max.: 87.5°C (189.5°F)	Almost the same as actual outside temperature	The temperature displayed on the multi-information display is -40 to 50°C (-40 to 122°F)
Turn Signal Switch (Right)	RH turn signal switch/OFF or ON	OFF: RH turn switch off	-
Turn Signal Switch (Right)	RH turn signal switch/OFF or ON	ON: RH turn switch on	-
Turn Signal Switch (Left)	LH turn signal switch/OFF or ON	OFF: LH turn switch off	-
Turn Signal Switch (Left)	LH turn signal switch/OFF or ON	ON: LH turn switch on	-

Details of relevant Data List items (Selected system: Air Conditioner)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Air Conditioner / Data List.

According to the display on the Techstream, read the "Data List".

AIR CONDITIONER

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Ambient Temp Sensor	Ambient temperature sensor (thermistor assembly) / Min.: -23.30°C (-9.94°F) Max.: 65.95°C (150.71°F)	Actual ambient temperature displayed	-
Solar Sensor (D Side)	Driver side solar sensor (automatic light control sensor) / Min.: 0 Max.: 255	Driver side solar sensor (automatic light control sensor) value increases as brightness increases	-
Engine Coolant Temp	Engine coolant temperature sensor / Min.: 1.30°C (34.34°F) Max.: 90.55°C (194.99°F)	Actual engine coolant temperature displayed	-

Details of relevant Data List items (Selected system: Main Body)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Main Body / Data List.

According to the display on the Techstream, read the "Data List".

MAIN BODY

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
FL Door Courtesy SW	Front door LH courtesy light switch signal / ON or OFF	ON: Front door LH open OFF: Front door LH closed	-
IG SW	Engine switch status / ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	-
Dimmer SW	Dimmer switch high position signal/ON or OFF	ON: Dimmer switch in high or high flash position OFF: Dimmer switch in low position	-

Details of relevant Data List items (Selected system: Mirror L or Mirror R)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Mirror L or Mirror R / Data List.

According to the display on the Techstream, read the "Data List".

MIRROR L OR MIRROR R

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
+B Voltage Input Value	Power supply for outer mirror control ECU assembly/MIN: 0 V, MAX: 19.98 V	11 to 14 V	-

Details of relevant Data List items (Selected system: Driver Seat)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Driver Seat / Data List.

According to the display on the Techstream, read the "Data List".

DRIVER SEAT

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Ignition Switch	Communication state of engine switch signal / ON or OFF	ON: Engine switch on (IG) signal received OFF: Engine switch off signal not received	-
P Switch	Park state signal / ON or OFF	ON: Shift lever in P OFF: Shift lever in a position other than P	-
Vehicle Speed	Vehicle speed data / min.: 0 km/h (0 mph), max.: 255 km/h (158 mph)	Actual vehicle speed	-
Power Voltage	Power supply for front power seat switch LH / min: 0.95 V, max: 20.84 V	Within range from 11 V to 14 V	-

Details of relevant Data List items (Selected system: Passenger Seat)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Passenger Seat / Data List.

According to the display on the Techstream, read the "Data List".

PASSENGER SEAT

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Ignition Switch	Communication state of engine switch signal / ON or OFF	ON: Engine switch on (IG) signal received OFF: Engine switch off signal not received	-
P Switch	Park state signal / ON or OFF	ON: Shift lever in P OFF: Shift lever in a position other than P	-
Vehicle Speed	Vehicle speed data / min.: 0 km/h (0 mph), max.: 255 km/h (158 mph)	Actual vehicle speed	-
Power Voltage	Power supply for front power seat switch RH / min: 0.95 V, max: 20.84 V	Within range from 11 V to 14 V	-

Details of relevant Data List items (Selected system: Tilt & Telescopic)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Tilt & Telescopic / Data List.

According to the display on the Techstream, read the "Data List".

TILT & TELESCOPIC

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Tilt Up Switch	Input state of tilt up switch/ ON or OFF	ON: Tilt up switch activated OFF: Tilt up switch not activated	-
Freeze Speed Info	Vehicle speed data/ Min.: 0 km/h (0 mph) Max.: 255 km/h (158 mph)	Stop → Drive → Stop	0 km/h (0 mph) → Same speed as indicated on speedometer → 0 km/h (0 mph)
IG Switch (CAN)	Communication state of engine switch/ ON or OFF	ON: Communication normal OFF: Communication interrupted	-

Details of relevant Data List items (Selected system: Back Door)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Using the Techstream to read the Data List allows the values or states of switches, sensor, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / Back Door / Data List.

According to the display on the Techstream, read the "Data List".

BACK DOOR

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
PBD Close SW	Door control switch signal / ON or OFF	ON: Door control switch is on OFF: Door control switch is off	When this item is abnormal, there is a problem with the door control switch or related parts.
IG SW	Engine switch on (IG) / ON or OFF	ON: Engine switch on (IG) OFF: Engine switch off	"OFF" is also displayed for this item when the engine switch is on (ACC).

Details of relevant Data List items (Selected system: SRS Airbag)

HINT:

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

Turn the engine switch off.
Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / SRS Airbag / Data List.

According to the display on the Techstream, read the "Data List".

SRS AIRBAG

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Left Side Buckle SW	Driver Side Buckle SW/ Unset: The seat belt is not fastened Set: The seat belt is fastened NG: Data is not determined	Unset/Set	-
Right Side Buckle SW*	Front Passenger Side Buckle SW/ Unset: The seat belt is not fastened Set: The seat belt is fastened NG: Data is not determined	Unset/Set	-

*: w/ Occupant Classification System

Details of relevant Data List items (Selected system: Advanced Parking Guidance/Parking Assist Monitor)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Chassis / Advanced Parking Guidance/Parking Assist Monitor / Data List.

According to the display on the Techstream, read the "Data List".

ADVANCED PARKING GUIDANCE/PARKING ASSIST MONITOR

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Wheel Speed Sensor (4wheel)	Vehicle speed signal from speed sensor/OK or NG	OK: Speed signal normal NG: Speed signal abnormal	-

Details of relevant Data List items (Selected system: AFS)

NOTE:

In the table below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

HINT:

Connect the Techstream to the DLC3.
Turn the engine switch on (IG).
Turn the Techstream on.
Enter the following menus: Body Electrical / AFS / Data List.

According to the display on the Techstream, read the "Data List".

AFS

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
FR Wheel Speed	Front right wheel speed/0.00 to 327.67 km/h (203.61 mph)	Condition can be displayed	-
FL Wheel Speed	Front left wheel speed/0.00 to 327.67 km/h (203.61 mph)	Condition can be displayed	-
Steering Sens Signal*	Steering angle sensor signal value/-384.0 deg to 382.5 deg	Approx. 0 deg (When steering wheel is straight)	Value changes according to steering wheel position
Headlight High Beam State	High beam headlight state/ON or OFF	ON: High beam headlights on OFF: High beam headlights off	-

*: w/ Adaptive Front-lighting System
