ECM Communication Stop Mode (2016 - 2017): Wiring Diagram

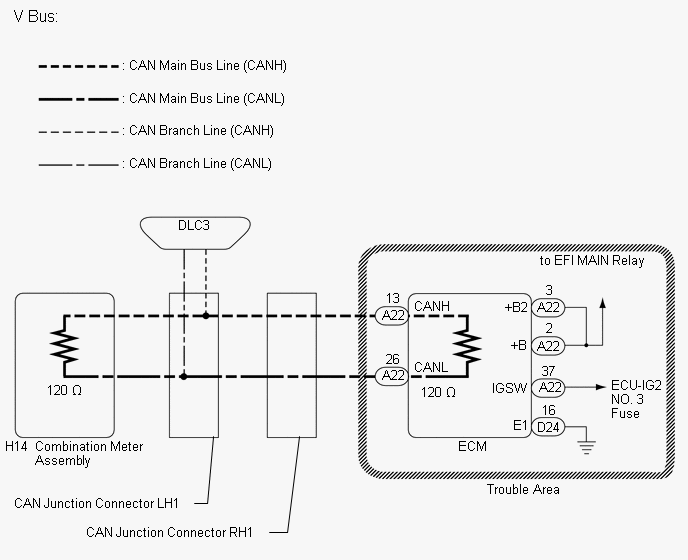

Fig 1: ECM Communication Wiring Diagram

GTY405150

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
