DTC U1002: Lost Communication with Gateway Module (Sensor Bus) [07/2015 - ]: Wiring Diagram

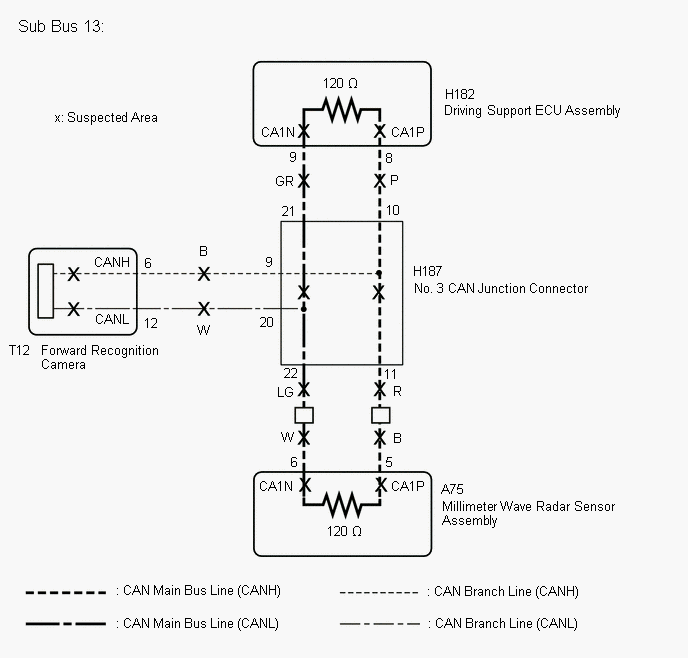

Fig 1: Forward Recognition Camera Wiring Diagram

GTY621297

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
