System Diagram [08/2019 - ]

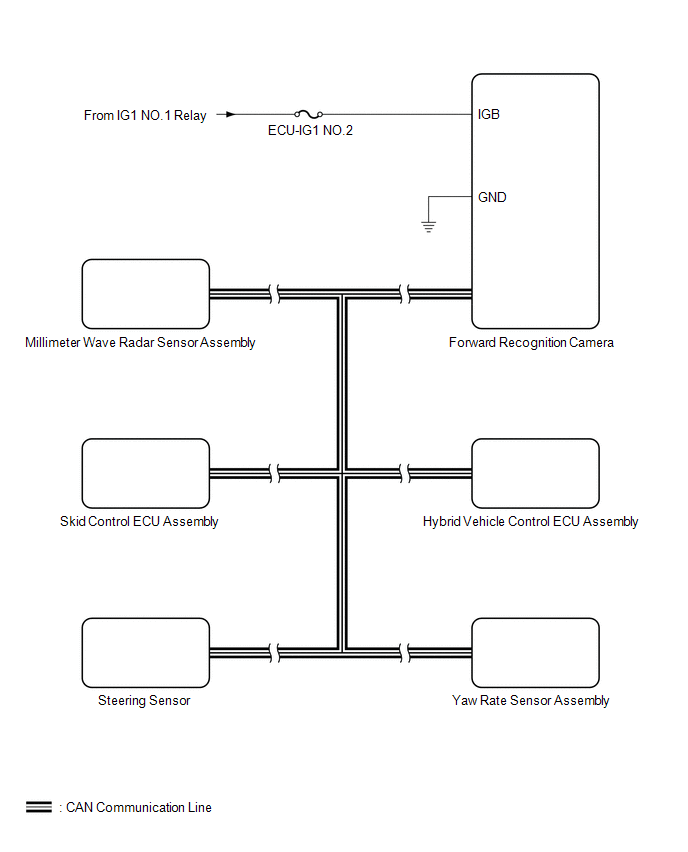

Fig 1: Pre-Collision System Wiring Diagram [08/2019 - ] (1 Of 2)
GTY951549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. LOCAL BUS
    Fig 2: Pre-Collision System Wiring Diagram [08/2019 - ] (2 Of 2)
    GTY929748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
