DTC P0107: Manifold Absolute Pressure / Barometric Pressure Circuit Low Input; DTC P0108: Manifold Absolute Pressure / Barometric Pressure Circuit High Input [10/2015 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List / MAP.

   Powertrain > Engine and ECT > Data List

   Tester Display
   MAP

5. Read the MAP value.

   OK

   Same value as the actual atmospheric pressure.

   HINT:

   • Standard atmospheric pressure is 101 kPa(abs) [15 psi(abs)]. For every 100 m (328 ft.) increase in altitude, atmospheric pressure drops by approximately 1 kPa (0.15 psi). The pressure also varies due to the weather (high atmospheric pressure, low atmospheric pressure).
   • Check "Atmosphere Pressure" in the Data List.

   Result

   Proceed to
   OK
   NG

Result:

OK

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [10/2015 - ]

Result:

NG

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

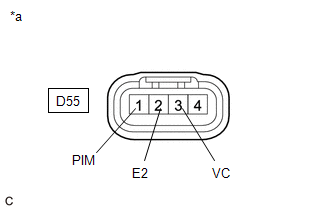

1. Disconnect the manifold absolute pressure sensor connector.
2. Turn the power switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   D55-3 (VC) - D55-2 (E2)	Power switch on (IG)	4.75 to 5.25 V
   D55-1 (PIM) - D55-2 (E2)	Power switch on (IG)	3.0 to 5.25 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  5

Result:

OK

See step  3

1. Replace the manifold absolute pressure sensor.

   Refer to REMOVAL [10/2015 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  4

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG).
3. Turn the Techstream on.
4. Clear the DTC.

   Powertrain > Engine and ECT > Clear DTCs

5. Turn the power switch off and wait for at least 30 seconds.
6. Turn the power switch on (IG).
7. Turn the Techstream on.
8. Drive the vehicle in accordance with the driving pattern described in the Confirmation Driving Pattern.
9. Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
10. Read the DTCs.

    Powertrain > Engine and ECT > Trouble Codes

    Result

    Result	Proceed to
    DTCs are not output	A
    DTC P0107 or P0108 is output	B

Result:

A

END

Result:

B

REPLACE ECM ASSEMBLY. Refer to  REMOVAL [10/2015 - 08/2016]  , or refer to  REMOVAL [08/2016 - 03/2018]  , or refer to  REMOVAL [03/2018 - 08/2019]  , or refer to  REMOVAL [08/2019 - ]

1. Disconnect the manifold absolute pressure sensor connector.
2. Disconnect the ECM assembly connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   D55-1 (PIM) - D1-95 (PIM)	Always	Below 1 Ω
   D55-3 (VC) - D1-100 (VCPM)	Always	Below 1 Ω
   D55-2 (E2) - D1-127 (EPIM)	Always	Below 1 Ω
   D55-1 (PIM) or D1-95 (PIM) - Body ground and other terminals	Always	10 kΩ or higher
   D55-3 (VC) or D1-100 (VCPM) - Body ground and other terminals	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE ECM ASSEMBLY. Refer to  REMOVAL [10/2015 - 08/2016]  , or refer to  REMOVAL [08/2016 - 03/2018]  , or refer to  REMOVAL [03/2018 - 08/2019]  , or refer to  REMOVAL [08/2019 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
