Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE FUEL DELIVERY PIPE

    Refer to REMOVAL [08/2016 - 08/2019]

  2. REMOVE KNOCK CONTROL SENSOR

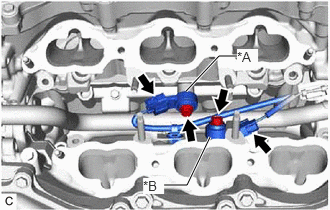

    1. Disconnect the 2 knock control sensor connectors.
      GTY644768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Bank 1
      *B for Bank 2
    2. Remove the 2 bolts and 2 knock control sensors from the cylinder block sub-assembly.
      NOTE:

      If a knock control sensor has been struck or dropped, replace it.
