Removal [08/2016 - 08/2019]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY

    Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

  2. REMOVE EGR COOLER ASSEMBLY

    Refer to REMOVAL [10/2015 - ]

  3. REMOVE NO. 1 ENGINE COVER

    Refer to PROCEDURE - Step 29

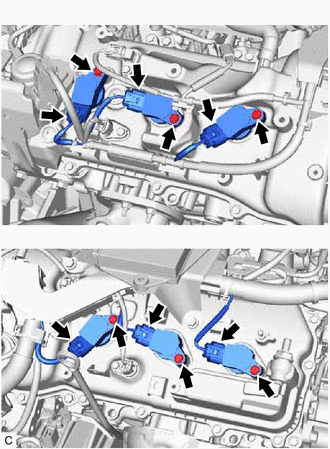

  4. REMOVE IGNITION COIL ASSEMBLY
    1. Disconnect the 6 ignition coil assembly connectors.
      GTY815841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 6 bolts and 6 ignition coil assemblies from the cylinder head cover sub-assembly and cylinder head cover sub-assembly LH.
      NOTE:

      If an ignition coil assembly has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

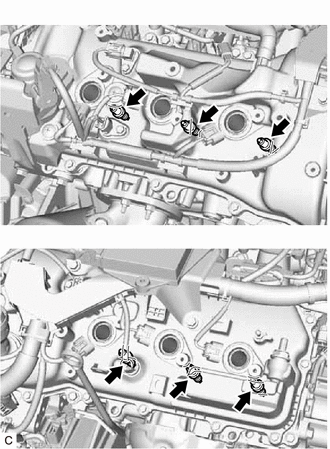

  5. REMOVE SPARK PLUG
    1. Remove the 6 spark plugs from the cylinder head sub-assembly and cylinder head LH.
      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.

      GTY836216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
