Components [10/2015 - ]
| *1 | FRONT FENDER APRON SEAL RH | - | - |

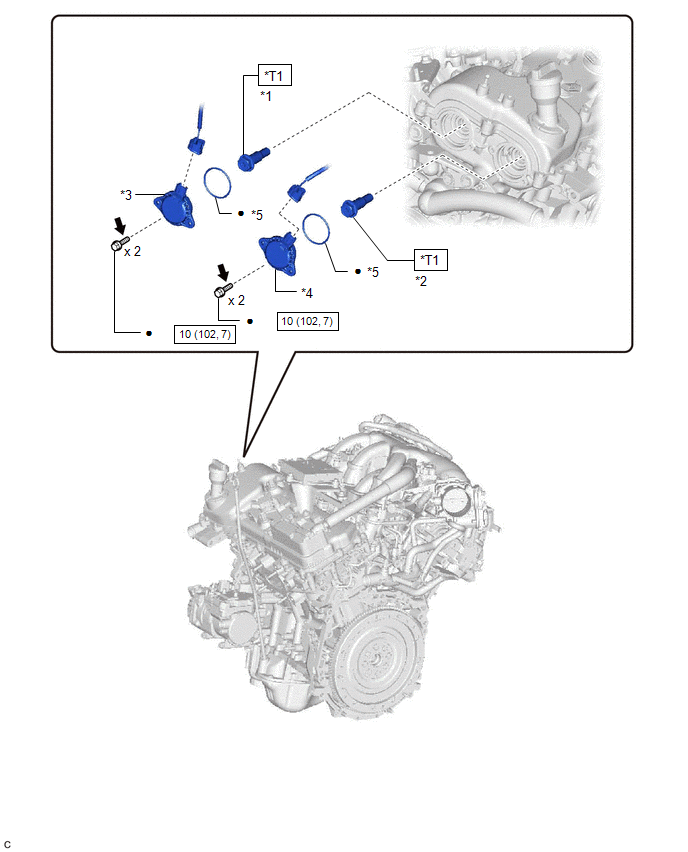

Fig 2: Camshaft Oil Control Valve Replacement Components With Torque Specifications (For Bank 2) (2 Of 2)
| Callout | Description | Callout | Description |
| *1 | CAMSHAFT TIMING GEAR BOLT (for Intake Side of Bank 2) | *2 | CAMSHAFT TIMING GEAR BOLT (for Exhaust Side of Bank 2) |
| *3 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Intake Side of Bank 2) | *4 | CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY (for Exhaust Side of Bank 2) |
| *5 | O-RING | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Adhesive 1324 | * | Precoated part | |
| *T1 | Type A: 120 N*m (1224 kgf*cm, 89 ft.*lbf) Type B: 95 N*m (969 kgf*cm, 70 ft.*lbf) |
- | - |
