Removal [08/2016 - 08/2019]: Procedure

Refer to REMOVAL [08/2016 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2019]

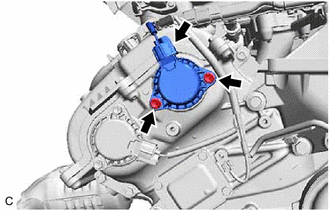

1. Disconnect the camshaft timing oil control solenoid assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
   NOTE:

   If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

3. Remove the O-ring from the camshaft timing oil control solenoid assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
   • Do not drop the O-ring into the timing chain cover assembly.

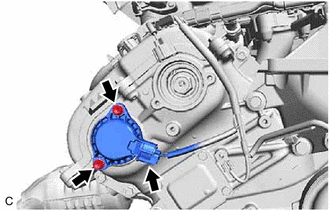

1. Disconnect the camshaft timing oil control solenoid assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 bolts and camshaft timing oil control solenoid assembly from the timing chain cover assembly.
   NOTE:

   If the camshaft timing oil control solenoid assembly has been struck or dropped, replace it.

3. Remove the O-ring from the camshaft timing oil control solenoid assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   • If the O-ring comes off in the timing chain cover assembly, make sure to remove it.
   • Do not drop the O-ring into the timing chain cover assembly.
