Power Switch
>>
Components [10/2015 - ]
Components [10/2015 - ]

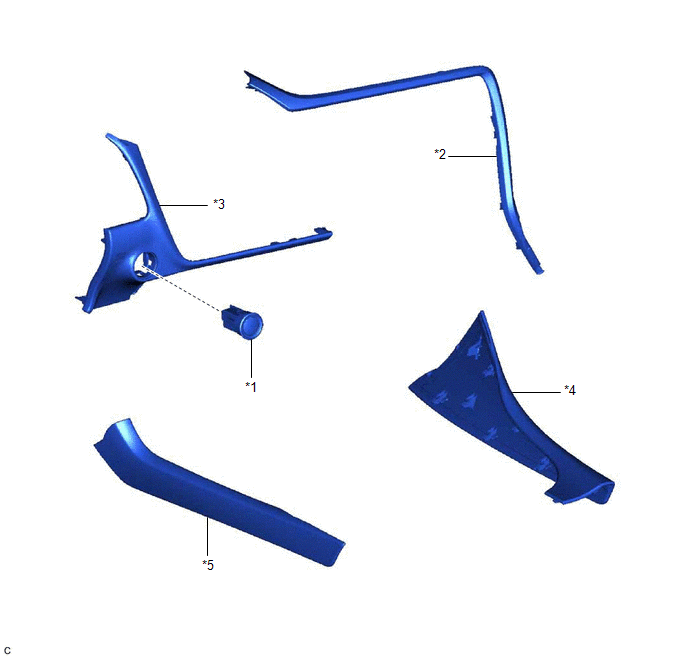

Fig 1: Power Switch Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
POWER SWITCH
*2
INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
*3
LOWER INSTRUMENT FINISH PANEL SUB
*4
LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL
*5
LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL
-
-
