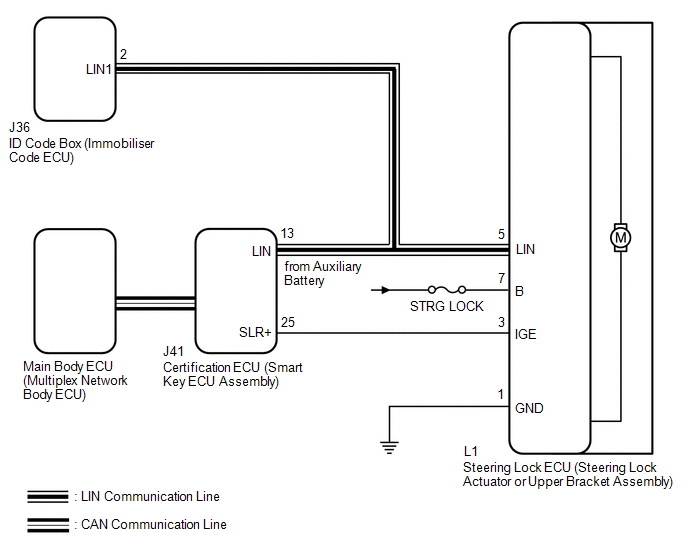

Steering Lock does not Lock [10/2015 - ]: Wiring Diagram

GTY636152

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
