Engine Room Relay Block Assembly NO. 2 Inner Circuit

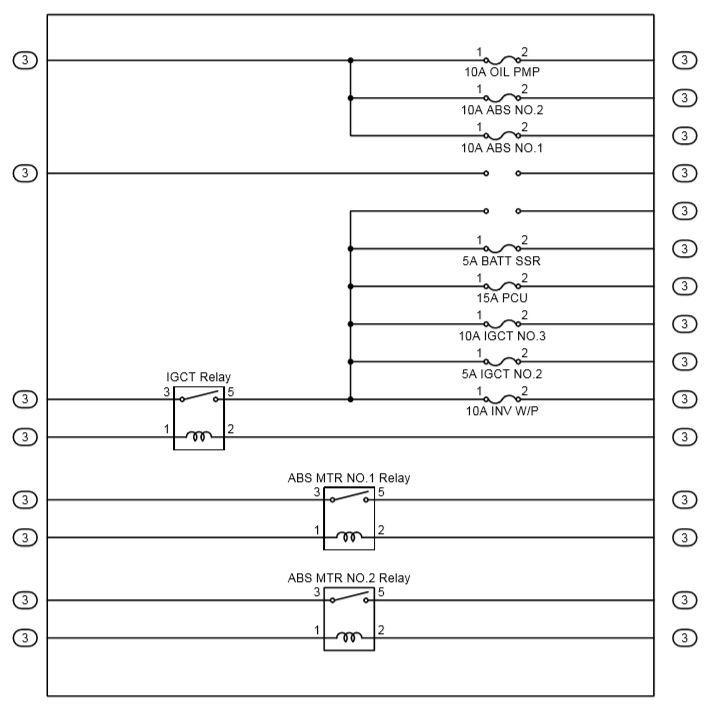

Fig 1: Engine Room Relay Block Assembly NO. 2 Inner Circuit Diagram

G00583537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
