Instrument Panel Junction Block Assembly Inner Circuit

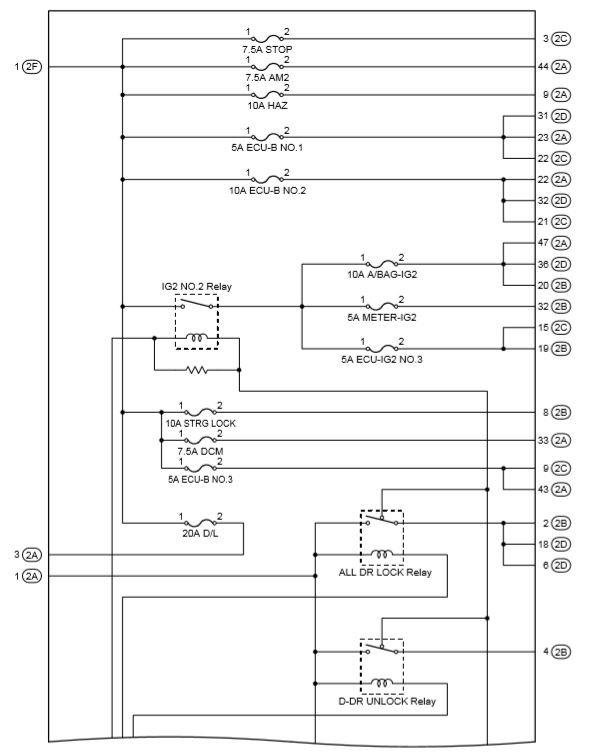

Fig 1: Instrument Panel J/B Assembly Circuit Diagram & Relays (1 Of 5)
G00584361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 NO. 2 Relay
D DR Unlock Relay
ALL DR Unlock Relay

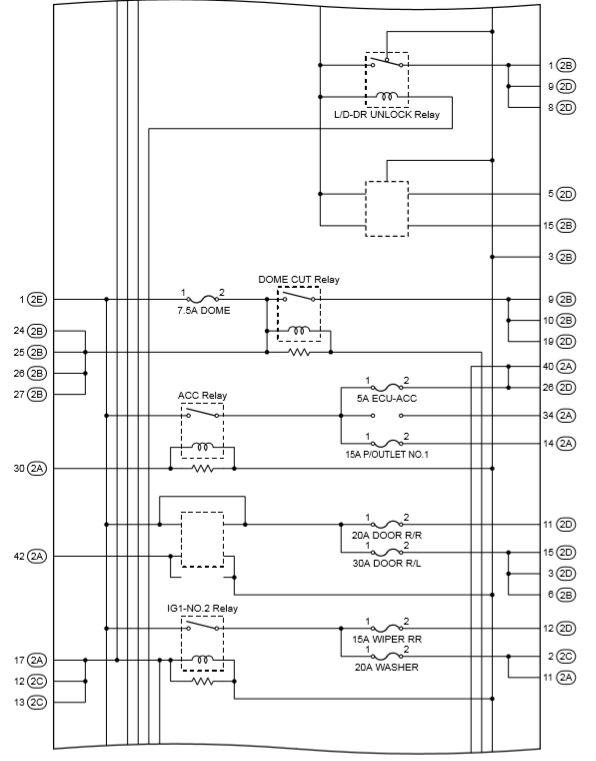

Fig 2: Instrument Panel J/B Assembly Circuit Diagram & Relays (2 Of 5)
G00584362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
L/D-DR UNLOCK Relay
DOME CUT Relay
ACC Relay
IG1-NO2. Relay

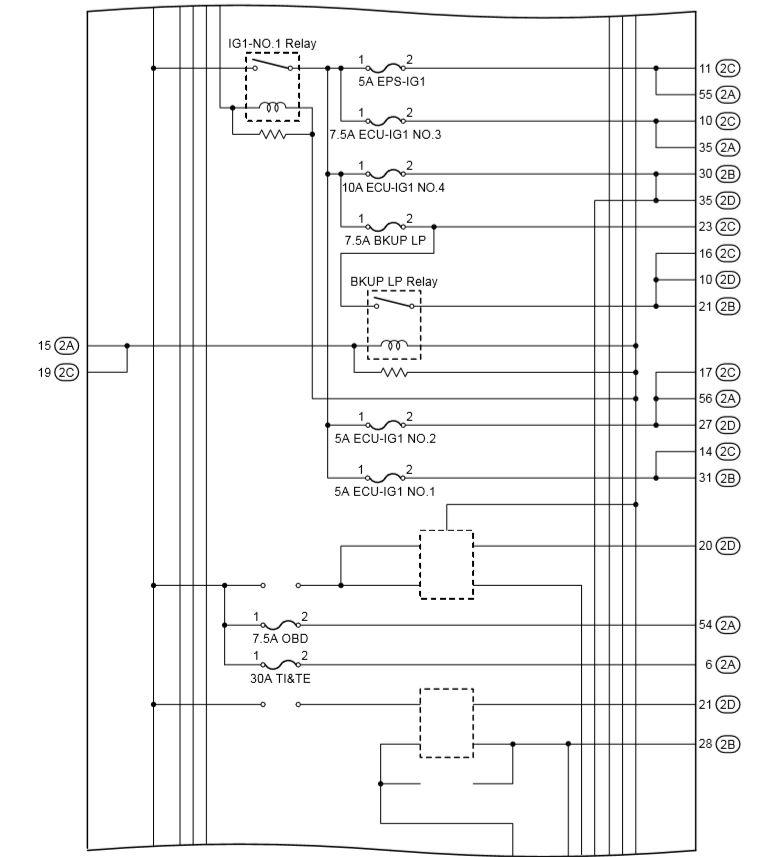

Fig 3: Instrument Panel J/B Assembly Circuit Diagram & Relays (3 Of 5)
G00584363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
BKUP LP Relay
IG1 No. 1 Relay

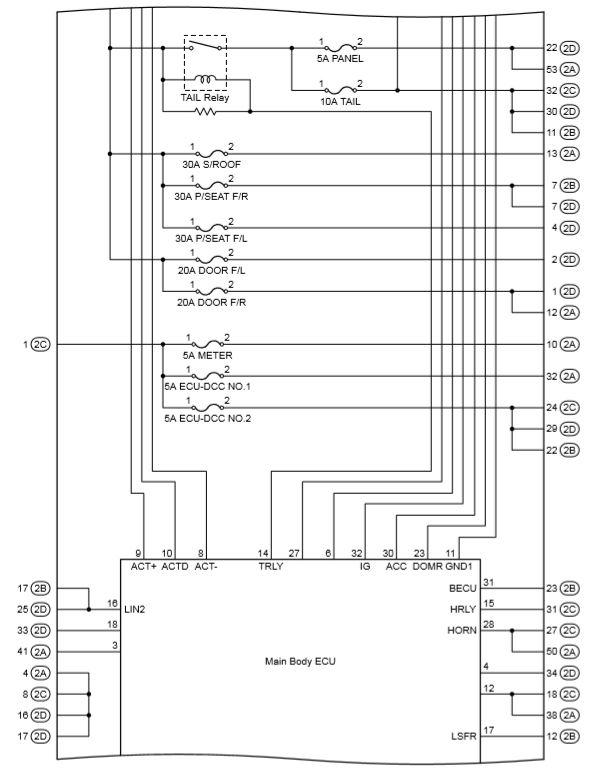

Fig 4: Instrument Panel J/B Assembly Circuit Diagram & Relays (4 Of 5)
G00584364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
TAIL Relay

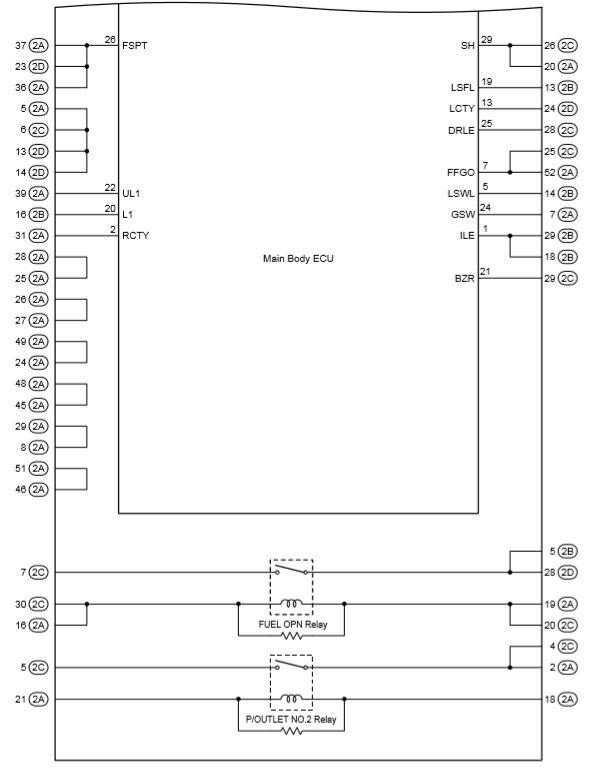

Fig 5: Instrument Panel J/B Assembly Circuit Diagram (5 Of 5)
G00584365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTRUMENT PANEL J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
FUEL OPEN Relay
P/OUTLET NO. 2 Relay
