Components [10/2015 - ]

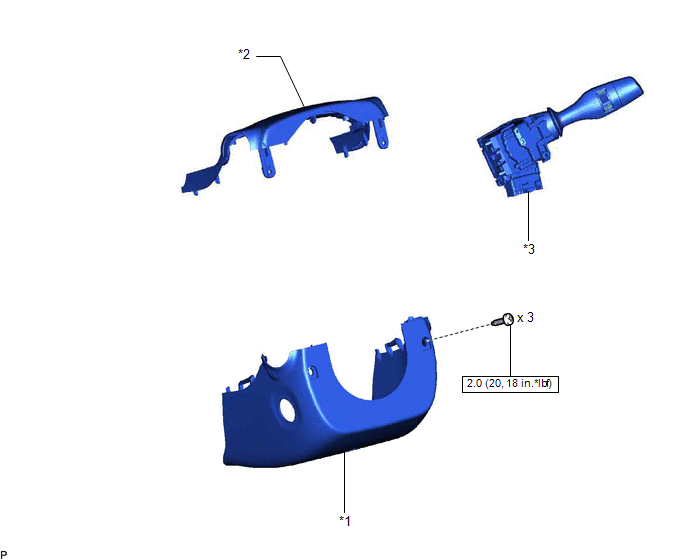

Fig 1: Wiper Switch Replacement Components With Torque Specifications
GTY671632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 LOWER STEERING COLUMN COVER *2 UPPER STEERING COLUMN COVER
*3 WINDSHIELD WIPER SWITCH ASSEMBLY - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
