Washer Level Warning Switch
>>
Components [10/2015 - 03/2018]
Components [10/2015 - 03/2018]

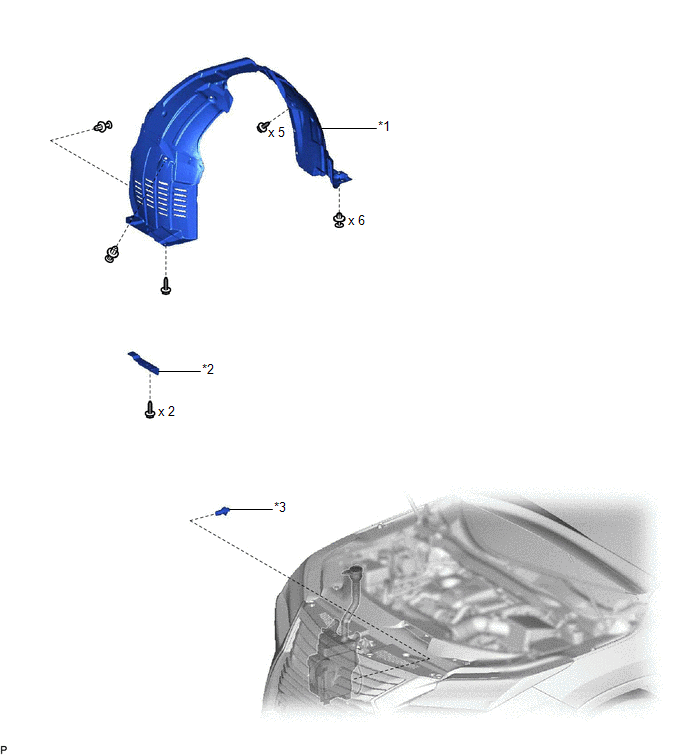

Fig 1: Washer Level Warning Switch Replacement Components [10/2015 - 03/2018]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH
*2
FRONT WHEEL OPENING EXTENSION PAD RH
*3
LEVEL WARNING SWITCH ASSEMBLY
-
-
