System Diagram [12/2017 - 08/2019]

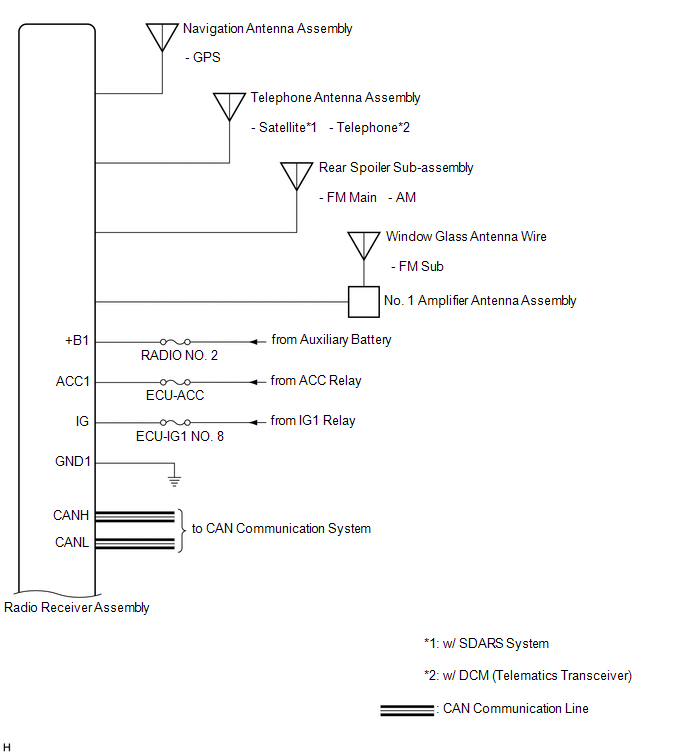

Fig 1: Navigation System Diagram (1 Of 4) [12/2017 - 08/2019]
GTY655972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

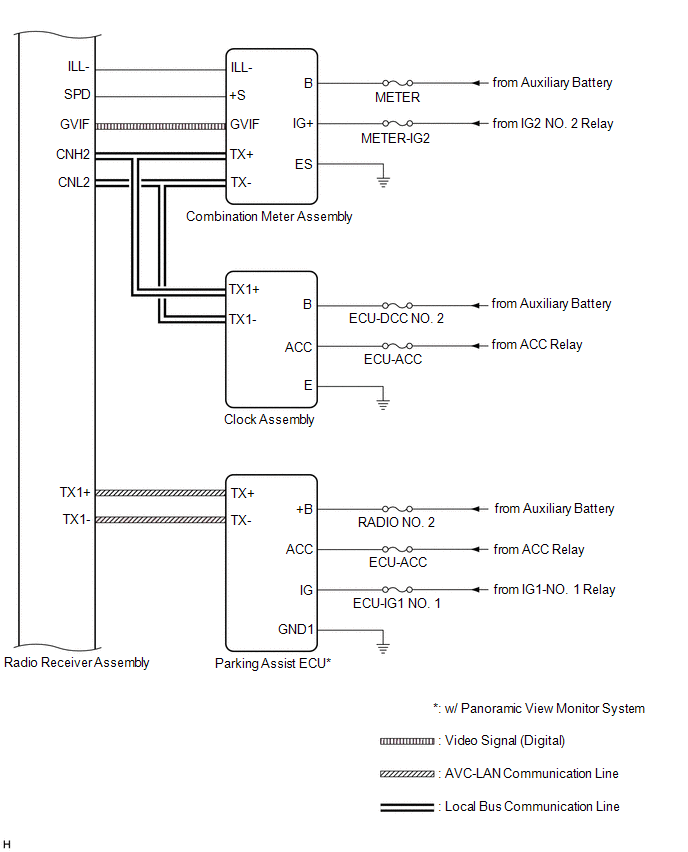

Fig 2: Navigation System Diagram (2 Of 4) [12/2017 - 08/2019]
GTY658316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

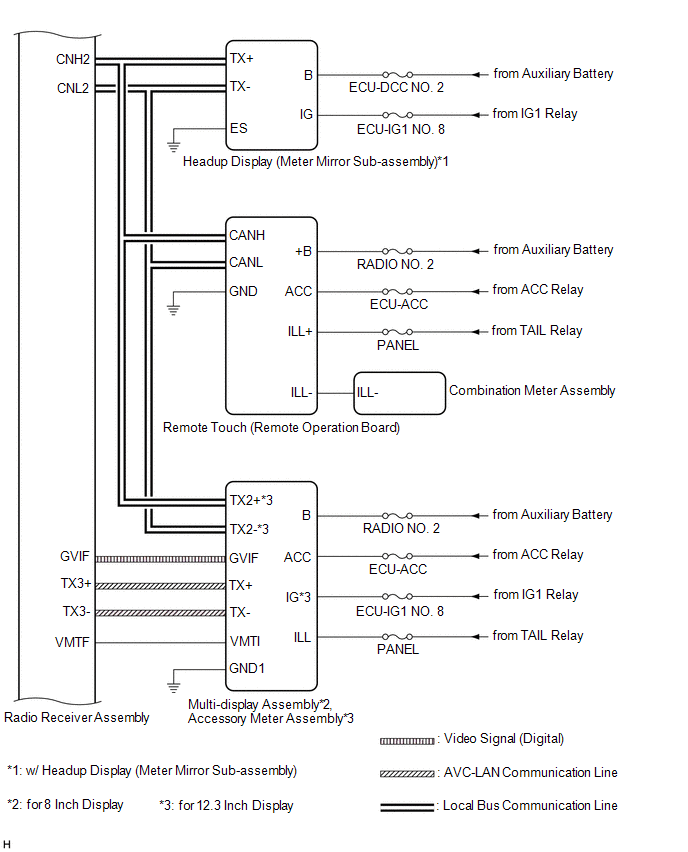

Fig 3: Navigation System Diagram (3 Of 4) [12/2017 - 08/2019]
GTY665314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

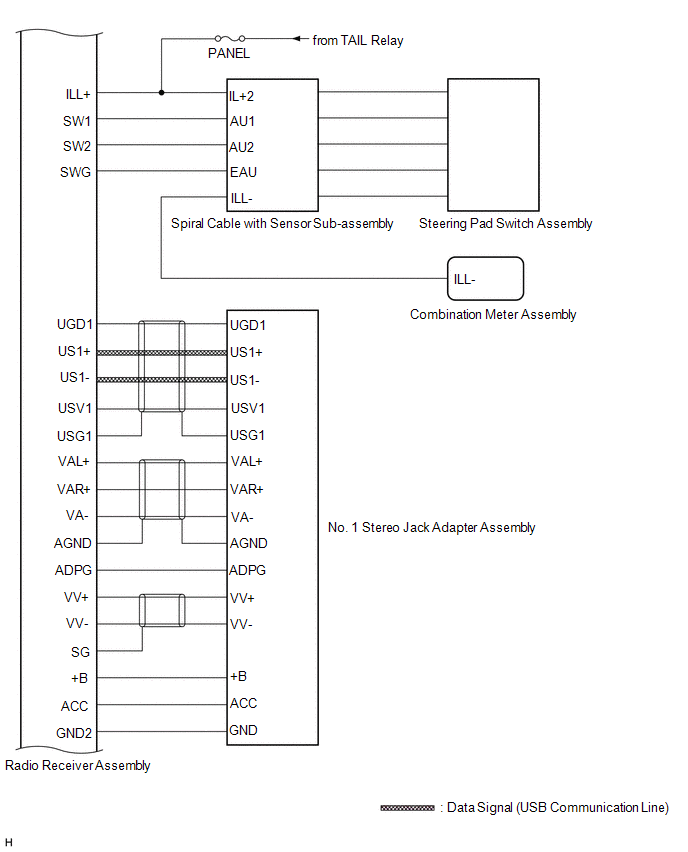

Fig 4: Navigation System Diagram (4 Of 4) [12/2017 - 08/2019]
GTY669875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ DCM (Telematics Transceiver)

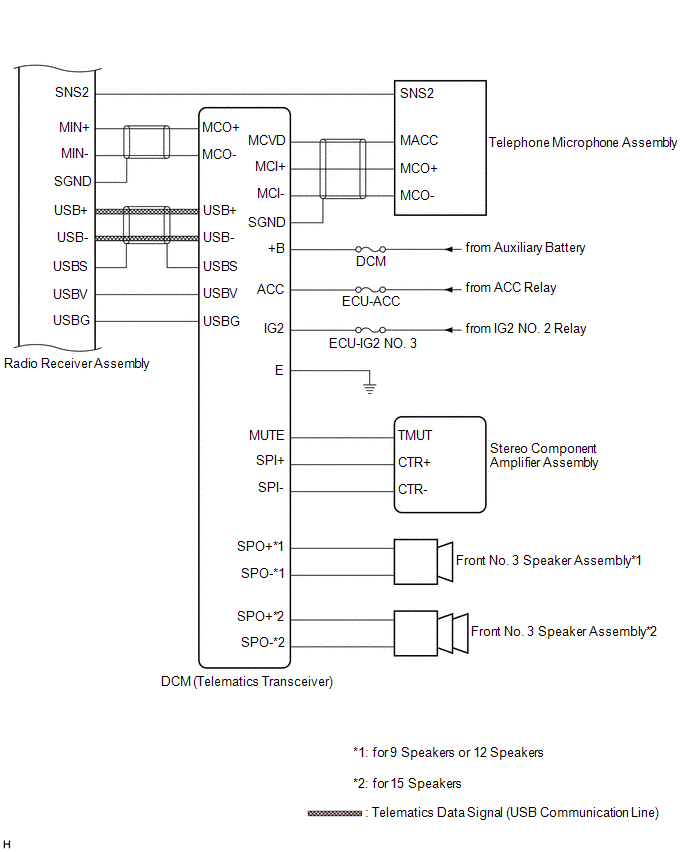

Fig 5: Navigation System Diagram (w/ DCM (Telematics Transceiver)) [12/2017 - 08/2019]
GTY628991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o DCM (Telematics Transceiver)

Fig 6: Navigation System Diagram (w/o DCM (Telematics Transceiver)) [12/2017 - 08/2019]
GTY646756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 9 Speakers

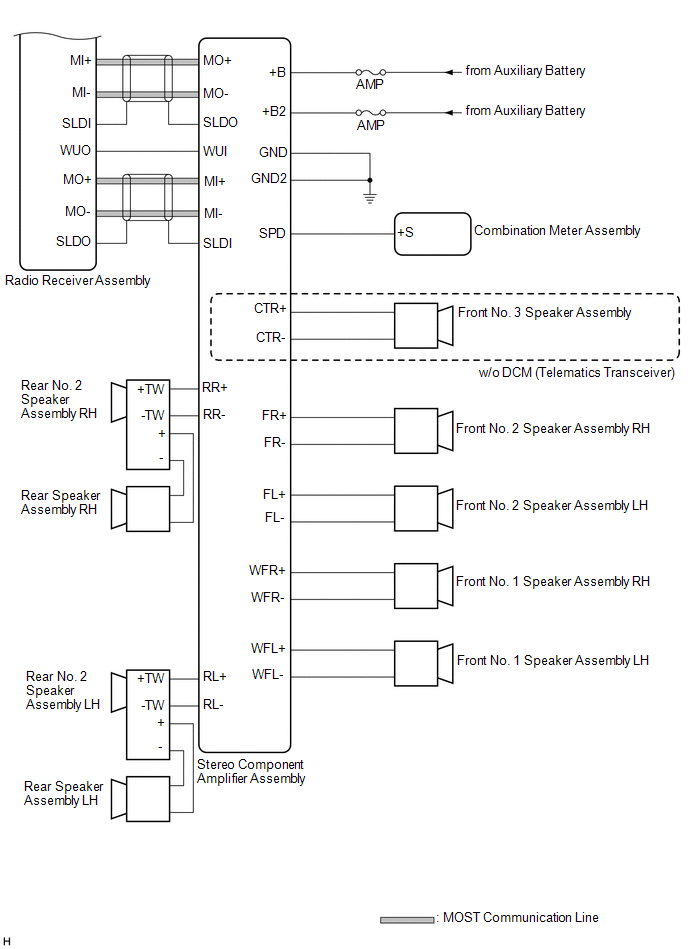

Fig 7: Navigation System Diagram (for 9 Speakers) [12/2017 - 08/2019]
GTY626772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 12 Speakers

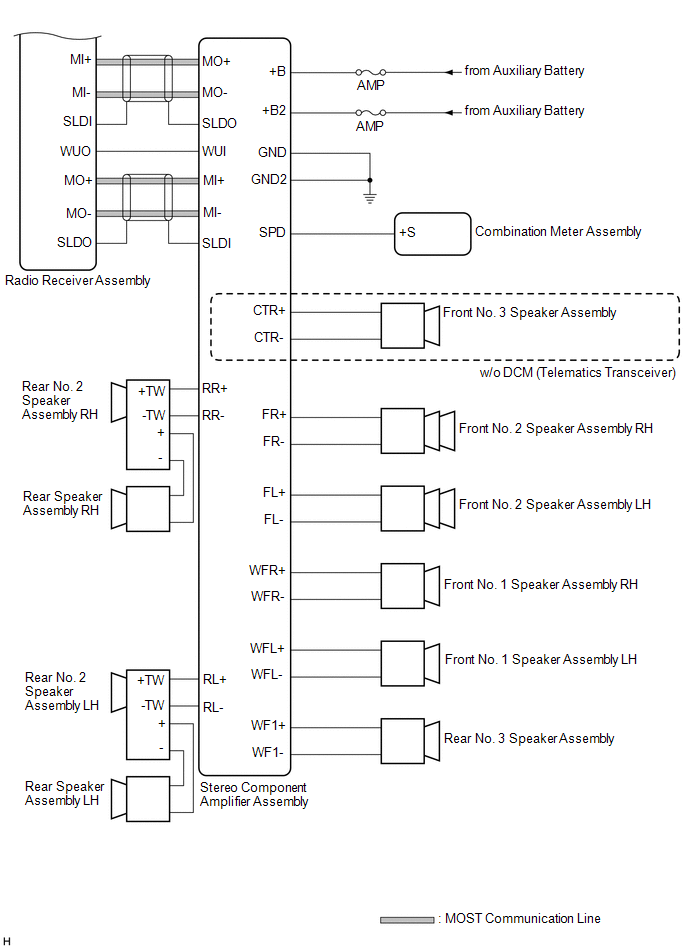

Fig 8: Navigation System Diagram (for 12 Speakers) [12/2017 - 08/2019]
GTY640670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for 15 Speakers

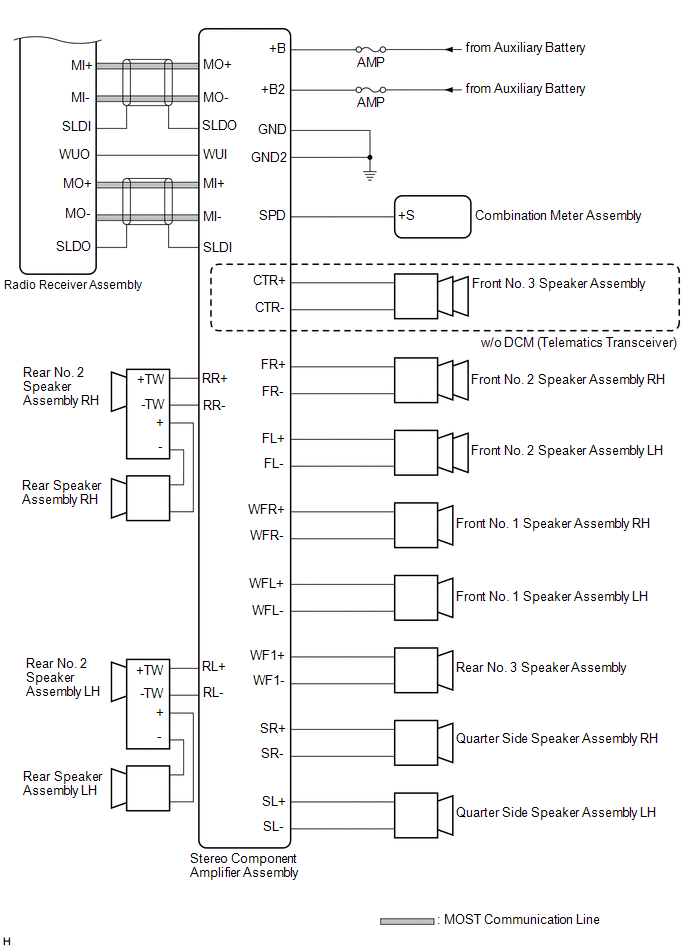

Fig 9: Navigation System Diagram (for 15 Speakers) [12/2017 - 08/2019]
GTY679251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
