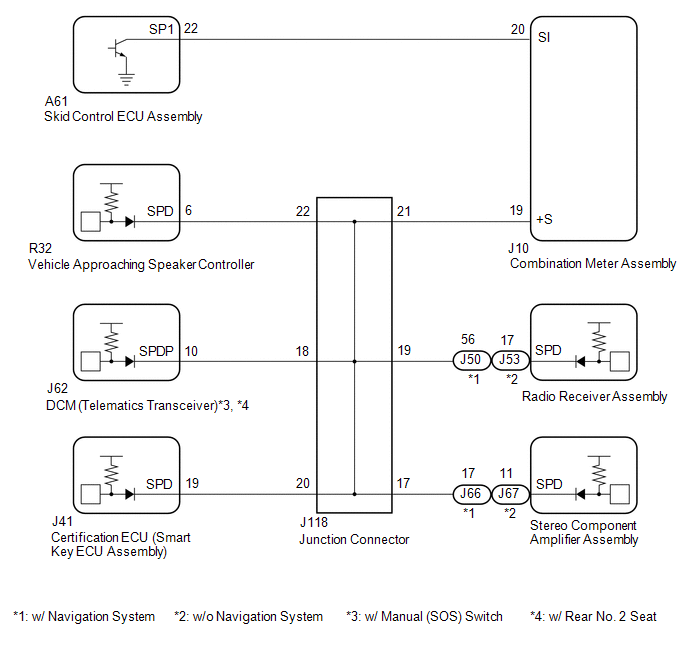

Vehicle Speed Signal Circuit between Stereo Component Amplifier and Combination Meter [03/2018 - 08/2019]: Wiring Diagram

GTY835485

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
