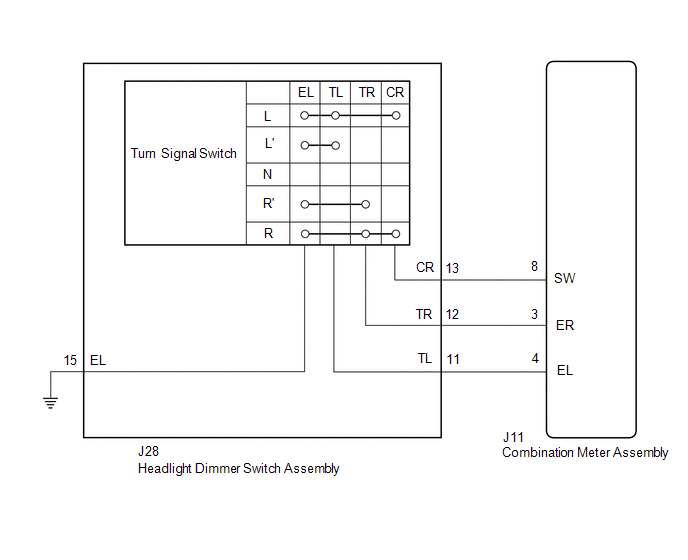

Turn Signal Switch Circuit [08/2019 - ]: Wiring Diagram

GTY959176

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
