Back-up Light Circuit [10/2015 - 08/2019]: Procedure

1. Clear the DTCs.

   Refer to DTC CHECK / CLEAR [10/2015 - ]

   Powertrain > Hybrid Control > Clear DTCs

2. Check for DTCs.

   Refer to DTC CHECK / CLEAR [10/2015 - ]

   Powertrain > Hybrid Control > Trouble Codes

   Result

   Result	Proceed to
   Hybrid control system DTCs are not output	A
   Hybrid control system DTCs are output	B

Result:

B

GO TO HYBRID CONTROL SYSTEM (DIAGNOSTIC TROUBLE CODE CHART). Refer to  DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2016]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [08/2016 - 12/2017]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [12/2017 - 03/2018]  , or refer to  DIAGNOSTIC TROUBLE CODE CHART [03/2018 - 08/2019]

Result:

A

See step  2

1. Disconnect the 2B instrument panel junction block assembly connector.
2. Measure the resistance according to the value (s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2B-3 - Body ground	Always	Below 1 Ω

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  3

1. Disconnect the 2C instrument panel junction block assembly connector.
2. Disconnect the A40 hybrid vehicle control ECU assembly connector.
3. Measure the resistance according to the value (s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   2C-19 - A40-2 (BL)	Always	Below 1 Ω
   2C-19 - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  4

1. Reconnect the A40 hybrid vehicle control ECU assembly connector.
2. Reconnect the 2C instrument panel junction block assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with wire harness connected (Instrument Panel Junction Block Assembly)

3. Measure the voltage according to the value (s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2C-19 - Body ground	Power switch on (IG), shift lever not in R	Below 1 V
   2C-19 - Body ground	Power switch on (IG), shift lever in R	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

REPLACE HYBRID VEHICLE CONTROL ECU ASSEMBLY. Refer to  REMOVAL [10/2015 - 08/2016]  , or refer to  REMOVAL [08/2016 - 03/2018]  , or refer to  REMOVAL [03/2018 - 08/2019]

Result:

OK

See step  5

1. Measure the voltage according to the value (s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   2D-10 - Body ground	Power switch on (IG), shift lever not in R	Below 1 V
   2D-10 - Body ground	Power switch on (IG), shift lever in R	11 to 14 V

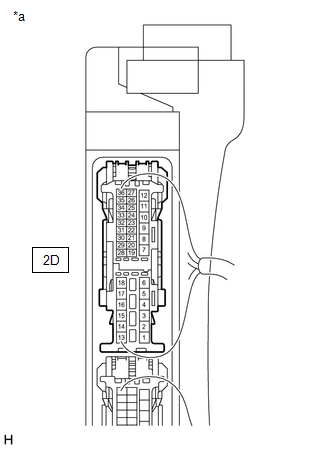

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Component with wire harness connected (Instrument Panel Junction Block Assembly)

   Result

   Proceed to
   OK
   NG

Result:

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR (REAR LIGHT ASSEMBLY - INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY)

Result:

NG

REPLACE INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY. Refer to  REMOVAL [10/2015 - 08/2016]  , or refer to  REMOVAL [08/2016 - 03/2018]  , or refer to  REMOVAL [03/2018 - 08/2019]
