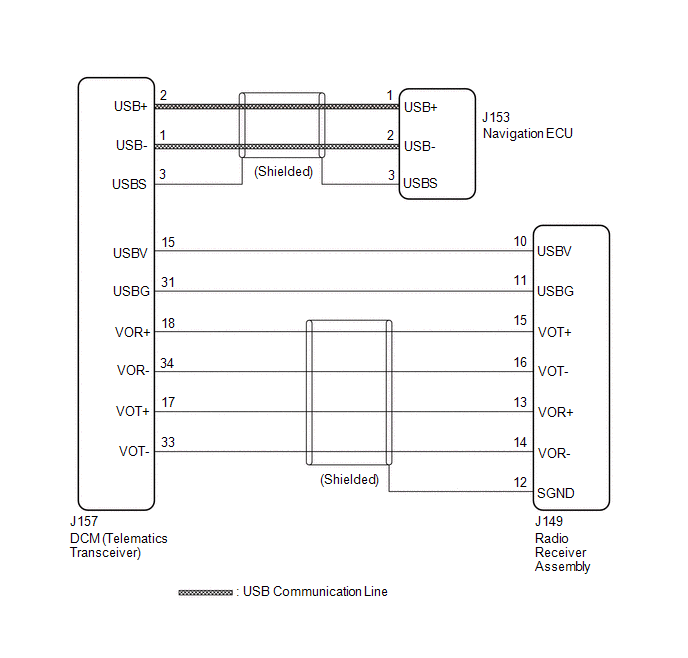

DCM Data Signal Circuit between Navigation ECU and DCM [08/2019 - ]: Wiring Diagram

GTY960174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
