Components [10/2015 - 12/2017]

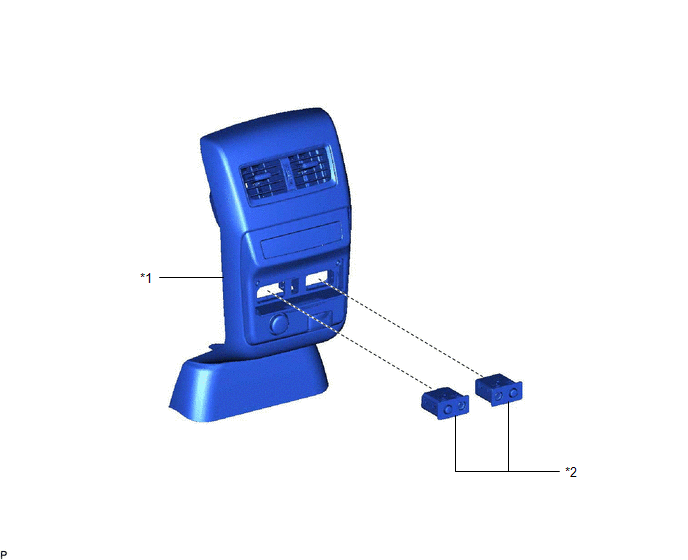

Fig 1: Stereo Jack Adapter Assembly (For Console Box Rear Side) Replacement Components
GTY638472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CONSOLE REAR END PANEL SUB-ASSEMBLY *2 HEADPHONE TERMINAL
