Removal [10/2015 - 08/2019]: Procedure

  1. REMOVE REMOTE TOUCH ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 2 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 2 [12/2017 - 08/2019]

  3. REMOVE LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL

    Refer to PROCEDURE - Step 3 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 3 [12/2017 - 08/2019]

  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019]

  5. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT

    Refer to PROCEDURE - Step 5 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 5 [12/2017 - 08/2019]

  6. REMOVE CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 [10/2015 - 12/2017] , or refer to PROCEDURE - Step 6 [12/2017 - 08/2019]

  7. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY
    1. Disconnect the 2 connectors.

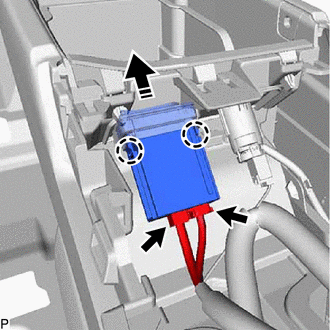

      GTY620277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disengage the 2 claws and remove the No. 1 stereo jack adapter assembly as shown in the illustration.
