System Diagram [08/2016 - 12/2017]

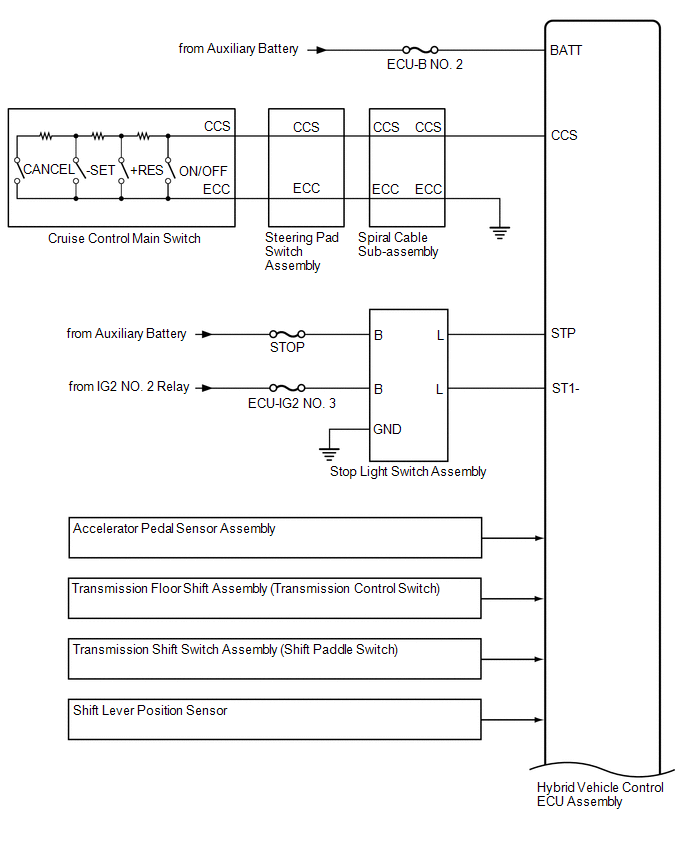

Fig 1: Cruise Control System Diagram [08/2016 - 12/2017] (1 Of 2)
GTY631358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

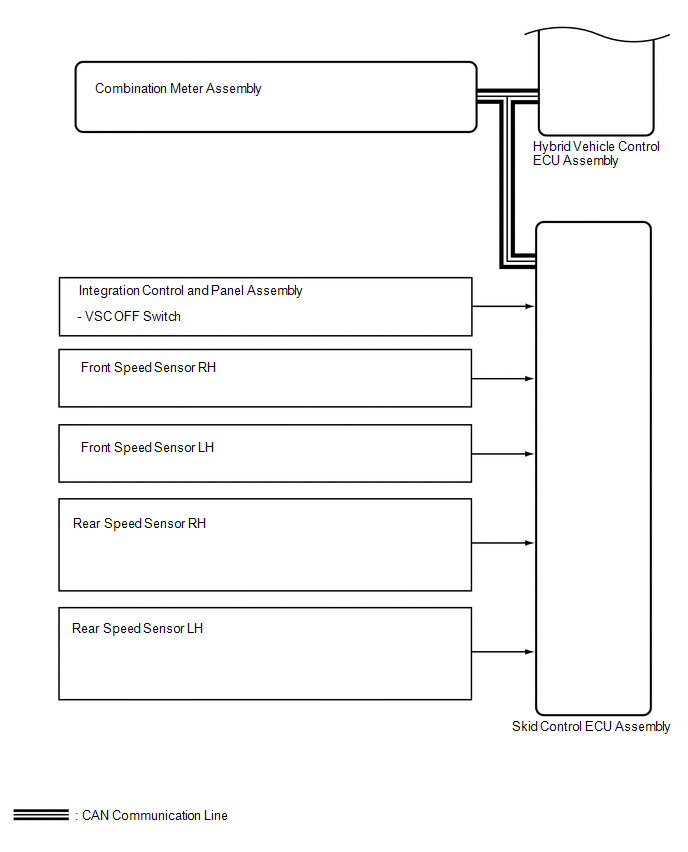

Fig 2: Cruise Control System Diagram [08/2016 - 12/2017] (2 Of 2)
GTY623833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
Hybrid Vehicle Control ECU Assembly Combination Meter Assembly
  • Cruise Control Indicator
  • Cruise Control SET Indicator
  • Multi-information Display
  • Cruise control indicator and cruise control SET indicator operation signal
  • Control vehicle speed signal
 CAN
Skid Control ECU Assembly Hybrid Vehicle Control ECU Assembly
  • Wheel speed signal
  • Speed sensor power drop signal
  • Speed sensor condition signal
  • Cruise control cancel request signal
  • Under VSC control signal
  • Under TRC control signal
 CAN
