How To Proceed With Troubleshooting [10/2015 - 08/2019]: Procedure

VEHICLE BROUGHT TO WORKSHOP
HINT:
- If the power switch can be turned on (IG) (the power source mode can be changed to on (IG)) when the vehicle is brought in for repair, check for DTCs and check the illumination condition of the indicators in the combination meter assembly and the basic operation of the vehicle (such as steering operation) promptly.
- Do not turn the power switch off until the inspection of the vehicle is finished, as some fail-safe functions are canceled when the power switch is turned off.
- If the power switch cannot be turned on (IG) (the power source mode cannot be changed to on (IG)) when the vehicle is brought in, measure the voltage of the battery. If the voltage is below 11 V, recharge or replace the battery before performing troubleshooting.
- If the power switch cannot be turned on (IG) even though the battery voltage is normal, repair this malfunction before performing troubleshooting.
  Refer to PROBLEM SYMPTOMS TABLE [10/2015 - ]
Result

Result

NEXT

Result:

NEXT

See step 2

CUSTOMER PROBLEM ANALYSIS

HINT:

When troubleshooting, confirm that the problem symptoms have been accurately identified. Preconceptions should be discarded in order to make an accurate judgment. To clearly understand what the problem symptoms are, it is extremely important to ask the customer about the problem and the conditions at the time the malfunction occurred.
Ask the customer if the vehicle is/was equipped with additional devices such as a theft deterrent device or monitor. (If equipped, explain to the customer that the additional devices will be removed before performing troubleshooting as the malfunction cannot be checked properly.)

It is useful to confirm the symptoms and the conditions in which the vehicle was operating at the time when a malfunction occurred. This helps to narrow down the malfunctioning part.

HINT:

What was affected (system, part or meter warning indicators)
What happened (details of the malfunction)
When (occurrence date and time, frequency and if it recurs or not)
Under what kind of situation did the problem occur (driving and operating condition at the occurrence and weather)
Road type or condition (city, suburb, paved road, unpaved road, highway, etc.)
Return conditions (what made the vehicle return to normal, for example, the power switch was turned off)

POINTS TO BE CONFIRMED

Symptom

Electric power steering
- Normal

- A little heavier than usual

- There was no assist
Air conditioning
- Whether the air conditioning system operated

- Whether the air conditioning function can be operated by the LEXUS display audio controller or Remote Touch

- Whether the blower fan operated
Drive monitor display
- Whether the update of multi-information display items stopped

- Whether the numeric part of drivable distance was displayed
Eco navigation (eco drive) display
- Whether the average fuel consumption graph is updated every minute

- Whether the updated section average fuel consumption graph is displayed

- Whether the distance-to-empty is displayed on the section average fuel consumption graph display
Auto lock and unlock operation
- Whether the speed linked auto-lock function operated while driving

- Whether the unlock function operated when the shift lever was moved to P
Wireless door lock function and smart entry function
- Whether the lock/unlock function operated

- Whether the entry warning function operated

- Whether the illumination was turned on when the key was brought into a smart detection area
Power tilt and telescopic system
- Whether the driving position memory/restoring, auto away/return functions operated
Seat
- Whether the driving position memory call, auto away/return functions operated
Operation of other systems of concern

Meter warning lights

Illumination of warning lights and the order in which they illuminated
- Check engine (MIL)

- ABS

- SRS

- EPS

- Slip

- Master

- Brake

- Auto leveling

- PCS

- Cruise

- Others
Meter display
- Speedometer

- Tachometer
Content displayed on the multi-information display
- Whether a warning message is displayed on the multi-information display

Result

Proceed to
NEXT

Result:

See step 3

CHECK TECHSTREAM OPERATION

HINT:

Read the Techstream operators manual before use.

Refer to GENERAL INFORMATION [10/2015 - ]

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.

Check that the Techstream and ECUs can communicate with the power switch on (IG).

HINT:

If communication is not possible, the Techstream screen will indicate an error.
If communication between the Techstream and ECUs is not possible, either the Techstream or vehicle has a malfunction.
When communication between the Techstream and the vehicle is not possible, but communication is possible when the Techstream is connected to another vehicle, the vehicle is malfunctioning. Inspect the CANH and CANL main lines of the DLC3 and the ECU power source circuits (in this case perform steps 31 to 32 first). In addition, check that the BAT terminal of the DLC3 receives battery voltage (11 V or more).
If communication between the Techstream and ECUs is still not possible even when the Techstream is connected to another vehicle, the Techstream has a malfunction. Perform the self tests described in the Techstream operators manual. (The Techstream may be malfunctioning or its battery may be discharged.)

Result

Result	Proceed to
OK (Communication between the Techstream and the vehicle is possible.)	A
OK (Communication between the Techstream and the vehicle is not possible but communication is possible when connected to another vehicle.)	B
NG (Communication is not possible between the Techstream and the vehicle, nor between the Techstream and another vehicle.)	C

Result:

See step 31

Result:

REFER TO TECHSTREAM OPERATOR'S MANUAL

Result:

See step 4

CHECK DTC (NETWORK GATEWAY ECU)

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.

Enter the following menus: Body Electrical / Central Gateway / Trouble Codes.

Body Electrical > Central Gateway > Trouble Codes

DTC B1003 is not output.

Result

Result
OK
NG

Result:

See step 6

Result:

See step 5

CHECK DTC

Using the Techstream, perform Health Check to read current and history DTCs and record them.
NOTE:
- CAN communication DTCs are output when there is an open or short in any of the communication lines. Any problems with the power source of a corresponding ECU or sensor, or problems in the ECU or sensor itself also cause these DTCs to be output.
- If a CAN communication line connector is disconnected with the power switch on (IG), the ECUs of the corresponding system and related systems store a DTC.
HINT:
- If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in a CAN bus occurs, DTCs of almost all ECUs and sensors on the CAN bus may be output (or a message indicating a communication error may be displayed on the Techstream screen). In this case, check the resistance of the CAN bus (steps 10 to 24) first.
- If an open occurs in just one of the lines of a CAN branch, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed on the Techstream.

Read the freeze frame data using the Techstream and record it.

Result

Proceed to
NEXT

Result:

See step 8

REPLACE NETWORK GATEWAY ECU

Replace the network gateway ECU

Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019]

HINT:

DTC B1003 is stored when a malfunction is detected in the non-volatile storage of the network gateway ECU. As DTC B1003 is not related to a communication malfunction, continue with troubleshooting to find the cause of the communication malfunction after replacing the network gateway ECU.

Result

Proceed to
NEXT

Result:

See step 7

CHECK DTC

Using the Techstream, perform Health Check to read current and history DTCs and record them.
NOTE:
- CAN communication DTCs are output when there is an open or short in any of the communication lines. Any problems with the power source of a corresponding ECU or sensor, or problems in the ECU or sensor itself also cause these DTCs to be output.
- If a CAN communication line connector is disconnected with the power switch on (IG), the ECUs of the corresponding system and related systems store a DTC.
HINT:
- If an open in a CAN main bus line, a short between the CAN bus lines (CANH and CANL) or a short to ground or +B in a CAN bus occurs, DTCs of almost all ECUs and sensors on the CAN bus may be output (or a message indicating a communication error may be displayed on the Techstream screen). In this case, check the resistance of the CAN bus (steps 10 to 24) first.
- If an open occurs in just one of the lines of a CAN branch, DTCs which are not related to malfunctioning parts may be output (DTCs may be displayed randomly), or a message indicating a communication error may be displayed on the Techstream.

Read the freeze frame data using the Techstream and record it.

Result

Proceed to
NEXT

Result:

See step 8

PERFORM COMMUNICATION MALFUNCTION CHECK (CONNECTION STATUS CHECK USING TECHSTREAM)

Select "Communication Malfunction Check" from the screen on the Techstream.

Record all the DTCs stored for ECUs and sensors.

Result

Proceed to
NEXT

Result:

See step 9

PERFORM CAN BUS CHECK (CONNECTION STATUS CHECK USING TECHSTREAM)

Based on the vehicle equipment and specifications, confirm the systems that use CAN communication.
Refer to DIAGNOSIS SYSTEM [10/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 12/2017] , or refer to DIAGNOSIS SYSTEM [12/2017 - 08/2018] , or refer to DIAGNOSIS SYSTEM [08/2018 - 08/2019]
Select "CAN Bus Check" from the screen on the Techstream.
CAN Bus Check

Observe the screen for approximately 2 minutes to check the ECUs and sensors displayed on the screen.

Result

Proceed to
NEXT

Result:

See step 10

CHECK BUS 1 MAIN LINE (CANH - CANL)

NOTE:

Before measuring the resistance of the CAN bus, turn the power switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 1 minute or more before measuring the resistance.

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Disconnect the cable from the negative (-) auxiliary battery terminal.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-23 (CA1H) - J75-8 (CA1L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Network Gateway ECU)

Result

Result	Proceed to
OK	A
NG (70 Ω or higher)	B
NG (Below 54 Ω)	C

Result:

GO TO OPEN IN BUS 1 MAIN BUS LINE. Refer to Open in Bus 1 Main Bus Line [10/2015 - ]

Result:

GO TO SHORT IN BUS 1 LINES. Refer to Check Bus 1 Lines for Short Circuit [10/2015 - 12/2017] , or refer to Check Bus 1 Lines for Short Circuit [12/2017 - 08/2019]

Result:

See step 11

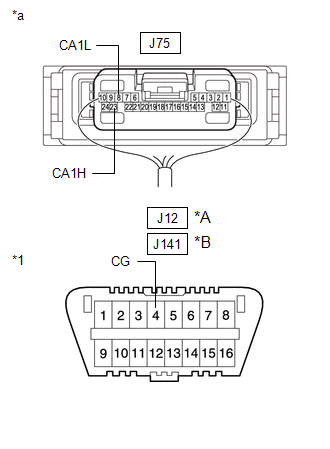

CHECK FOR SHORT TO GND IN BUS 1 (CANH, CANL - CG)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-23 (CA1H) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-8 (CA1L) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-23 (CA1H) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-8 (CA1L) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO GND IN BUS 1 LINE. Refer to Check Bus 1 Line for Short to GND [10/2015 - 12/2017] , or refer to Check Bus 1 Line for Short to GND [12/2017 - 08/2019]

Result:

See step 12

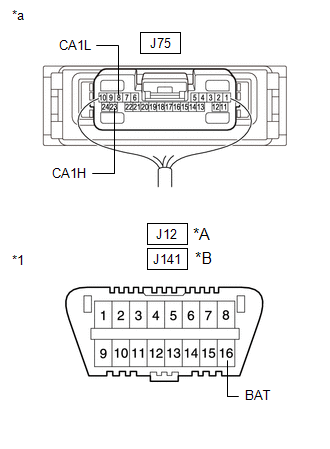

CHECK FOR SHORT TO +B IN BUS 1 (CANH, CANL - BAT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-23 (CA1H) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-8 (CA1L) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-23 (CA1H) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-8 (CA1L) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO +B IN BUS 1 LINE. Refer to Check Bus 1 Line for Short to +B [10/2015 - 12/2017] , or refer to Check Bus 1 Line for Short to +B [12/2017 - 08/2019]

Result:

See step 13

CHECK BUS 2 MAIN LINE (CANH - CANL)

NOTE:

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-18 (CA4H) - J75-17 (CA4L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Network Gateway ECU)

Result

Result	Proceed to
OK	A
NG (70 Ω or higher)	B
NG (Below 54 Ω)	C

Result:

GO TO OPEN IN BUS 2 MAIN BUS LINE. Refer to Open in Bus 2 Main Bus Line [10/2015 - 12/2017] , or refer to Open in Bus 2 Main Bus Line [12/2017 - ]

Result:

GO TO SHORT IN BUS 2 LINES. Refer to Check Bus 2 Lines for Short Circuit [10/2015 - 12/2017] , or refer to Check Bus 2 Lines for Short Circuit [12/2017 - 08/2019]

Result:

See step 14

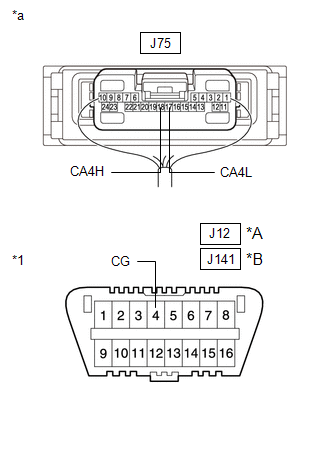

CHECK FOR SHORT TO GND IN BUS 2 (CANH, CANL - CG)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-18 (CA4H) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-17 (CA4L) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-18 (CA4H) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-17 (CA4L) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO GND IN BUS 2 LINE. Refer to Check Bus 2 Line for Short to GND [10/2015 - 12/2017] , or refer to Check Bus 2 Line for Short to GND [12/2017 - 08/2019]

Result:

See step 15

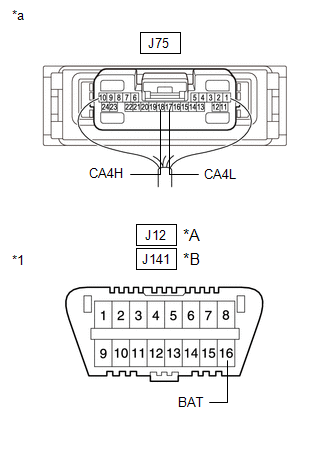

CHECK FOR SHORT TO +B IN BUS 2 (CANH, CANL - BAT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-18 (CA4H) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-17 (CA4L) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-18 (CA4H) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-17 (CA4L) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO +B IN BUS 2 LINE. Refer to Check Bus 2 Line for Short to +B [10/2015 - 12/2017] , or refer to Check Bus 2 Line for Short to +B [12/2017 - 08/2019]

Result:

See step 16

CHECK BUS 3 MAIN LINE (CANH - CANL)

NOTE:

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-6 (CA3H) - J75-21 (CA3L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Network Gateway ECU)

Result

Result	Proceed to
OK	A
NG (70 Ω or higher)	B
NG (Below 54 Ω)	C

Result:

GO TO OPEN IN BUS 3 MAIN BUS LINE. Refer to Open in Bus 3 Main Bus Line [10/2015 - ]

Result:

GO TO SHORT IN BUS 3 LINES. Refer to Check Bus 3 Lines for Short Circuit [10/2015 - 12/2017] , or refer to Check Bus 3 Lines for Short Circuit [12/2017 - 08/2019]

Result:

See step 17

CHECK FOR SHORT TO GND IN BUS 3 (CANH, CANL - CG)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-6 (CA3H) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-21 (CA3L) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-6 (CA3H) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-21 (CA3L) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO GND IN BUS 3 LINE. Refer to Check Bus 3 Line for Short to GND [10/2015 - 12/2017] , or refer to Check Bus 3 Line for Short to GND [12/2017 - 08/2019]

Result:

See step 18

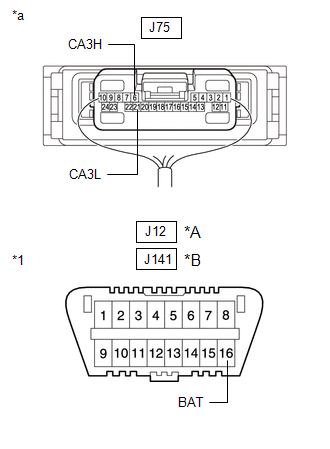

CHECK FOR SHORT TO +B IN BUS 3 (CANH, CANL - BAT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-6 (CA3H) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-21 (CA3L) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-6 (CA3H) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-21 (CA3L) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO +B IN BUS 3 LINE. Refer to Check Bus 3 Line for Short to +B [10/2015 - 12/2017] , or refer to Check Bus 3 Line for Short to +B [12/2017 - 08/2019]

Result:

See step 19

CHECK BUS 4 MAIN LINE (CANH - CANL)

NOTE:

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-22 (CA2H) - J75-7 (CA2L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Network Gateway ECU)

Result

Result	Proceed to
OK	A
NG (70 Ω or higher)	B
NG (Below 54 Ω)	C

Result:

GO TO OPEN IN BUS 4 MAIN BUS LINE. Refer to Open in Bus 4 Main Bus Line [10/2015 - 08/2019]

Result:

GO TO SHORT IN BUS 4 LINES. Refer to Check Bus 4 Lines for Short Circuit [10/2015 - 08/2019]

Result:

See step 20

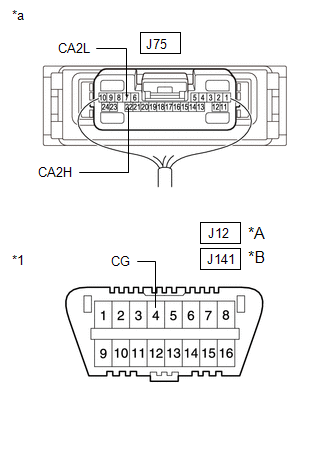

CHECK FOR SHORT TO GND IN BUS 4 (CANH, CANL - CG)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-22 (CA2H) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-7 (CA2L) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-22 (CA2H) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-7 (CA2L) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO GND IN BUS 4 LINE. Refer to Check Bus 4 Line for Short to GND [10/2015 - 08/2019]

Result:

See step 21

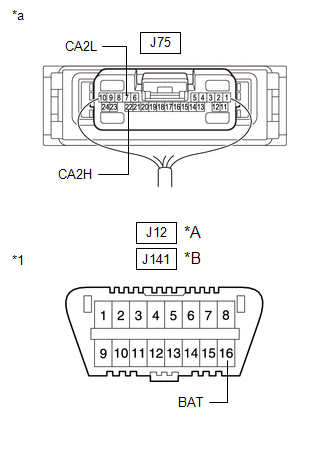

CHECK FOR SHORT TO +B IN BUS 4 (CANH, CANL - BAT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-22 (CA2H) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-7 (CA2L) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-22 (CA2H) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-7 (CA2L) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO +B IN BUS 4 LINE. Refer to Check Bus 4 Line for Short to +B [10/2015 - 08/2019]

Result:

See step 22

CHECK BUS 5 MAIN LINE (CANH - CANL)

NOTE:

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-15 (CA5H) - J75-16 (CA5L)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Component with harness connected (Network Gateway ECU)

Result

Result	Proceed to
OK	A
NG (70 Ω or higher)	B
NG (Below 54 Ω)	C

Result:

GO TO OPEN IN BUS 5 MAIN BUS LINE. Refer to Open in Bus 5 Main Bus Line [10/2015 - ]

Result:

GO TO SHORT IN BUS 5 LINES. Refer to Check Bus 5 Lines for Short Circuit [10/2015 - ]

Result:

See step 23

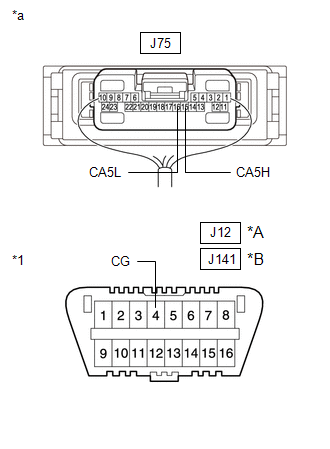

CHECK FOR SHORT TO GND IN BUS 5 (CANH, CANL - CG)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-15 (CA5H) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-16 (CA5L) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-15 (CA5H) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J75-16 (CA5L) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO GND IN BUS 5 LINE. Refer to Check Bus 5 Line for Short to GND [10/2015 - 08/2019]

Result:

See step 24

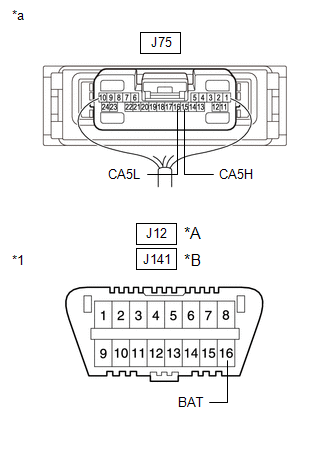

CHECK FOR SHORT TO +B IN BUS 5 (CANH, CANL - BAT)

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J75-15 (CA5H) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-16 (CA5L) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J75-15 (CA5H) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J75-16 (CA5L) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3
*a	Component with harness connected (Network Gateway ECU)

Result

Result
OK
NG

Result:

GO TO SHORT TO +B IN BUS 5 LINE. Refer to Check Bus 5 Line for Short to +B [10/2015 - 08/2019]

Result:

See step 25

CHECK RESULT OF CAN BUS CHECK (CONNECTION STATUS CHECK USING TECHSTREAM)

Inspect or repair the probable malfunctioning part based on the check result of step 9 (the step in which CAN bus check was performed).

CAN Bus Check

Result of CAN Bus Check (Connection Status Check Using Techstream)

Result	Proceed to
All ECUs and sensors connected to the CAN communication system are displayed on the screen. (CAN bus circuit is currently normal.)	A
All ECUs except the main body ECU (multiplex network body ECU) connected to sub bus 1 are not displayed on the screen. The main body ECU (multiplex network body ECU) (Main Body) outputs DTC U1002. (Open or short in sub bus 1 main lines.)	B
All ECUs connected to sub bus 1 are not displayed on the screen. (Open in main body ECU (multiplex network body ECU) branch lines or main body ECU (multiplex network body ECU) malfunction.)	C
One of the ECUs and sensors connected to the bus 1, bus 2, bus 3, bus 4 or bus 5 is not displayed on the screen. (Open in ECU or sensor branch lines, or communication is interrupted.)	D
One of the ECUs and sensors connected to sub bus 1 is not displayed on the screen.* (Open in ECU or sensor branch lines, or communication is interrupted.)	E
In addition to ECUs and sensors which are connected to the bus 1 but are not displayed on the screen, there are ECUs or sensors for which the detection status changes (changes between detected and not detected) during the inspection. (Open in one side of ECU or sensor branch lines.)	F
In addition to ECUs and sensors which are connected to the bus 2 but are not displayed on the screen, there are ECUs or sensors for which the detection status changes (changes between detected and not detected) during the inspection. (Open in one side of ECU or sensor branch lines.)	G
In addition to ECUs and sensors which are connected to the bus 3 but are not displayed on the screen, there are ECUs or sensors for which the detection status changes (changes between detected and not detected) during the inspection. (Open in one side of ECU or sensor branch lines.)	H
In addition to ECUs and sensors which are connected to the bus 4 but are not displayed on the screen, there are ECUs or sensors for which the detection status changes (changes between detected and not detected) during the inspection. (Open in one side of ECU or sensor branch lines.)	I
In addition to ECUs and sensors which are connected to the bus 5 but are not displayed on the screen, there are ECUs or sensors for which the detection status changes (changes between detected and not detected) during the inspection. (Open in one side of ECU or sensor branch lines.)	J

NOTE:

*: In this case, as the main body ECU (multiplex network body ECU) (Main Body) outputs communication DTCs (DTCs that start with U), the problem area can be determined from those DTCs.
Non-installed ECUs or sensors will not be displayed. Do not mistake them for being in communication stop mode.
It may be possible to select buses that do not have ECUs or sensors from the bus selection pull-down menu on the Techstream. This is not a malfunction. (This occurs when optional devices are not on a sub bus that is monitored by a gateway function equipped ECU.)

HINT:

Regarding CAN Bus Check, refer to How to Interpret CAN Bus Check Screen.
Refer to DIAGNOSIS SYSTEM [10/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 12/2017] , or refer to DIAGNOSIS SYSTEM [12/2017 - 08/2018] , or refer to DIAGNOSIS SYSTEM [08/2018 - 08/2019]
If the detection status of ECUs changes during the inspection, one of the branch lines of a connected ECU or sensor may be open. (Signals from the ECU or sensor that has an open in one of its branch lines create electrical noise, affecting response to the Techstream and whether or not the ECUs and sensors are displayed.)
Regarding the ECUs connected to sub bus 1, the main body ECU (multiplex network body ECU) displays communicating ECUs on the Techstream. If the communication between the main body ECU (multiplex network body ECU) and an ECU stops for 10 seconds or more, the ECU will no longer be displayed on the Techstream.
Regarding the communication stop mode for ECUs connected to sub bus 1, refer to the inspection procedure for the DTCs that indicate a communication stop.

Result:

GO TO U1002 (Main Body). Refer to DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [10/2015 - 08/2019]

Result:

GO TO MAIN BODY ECU COMMUNICATION STOP MODE. Refer to Main Body ECU Communication Stop Mode [10/2015 - ]

Result:

GO TO COMMUNICATION STOP MODE TABLE. Refer to PROBLEM SYMPTOMS TABLE [10/2015 - 12/2017] , or refer to PROBLEM SYMPTOMS TABLE [12/2017 - 08/2019]

Result:

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2019]

Result:

GO TO OPEN IN ONE SIDE OF BUS 1 BRANCH LINE. Refer to Open in One Side of Bus 1 Branch Line [10/2015 - 12/2017] , or refer to Open in One Side of Bus 1 Branch Line [12/2017 - 08/2019]

Result:

GO TO OPEN IN ONE SIDE OF BUS 2 BRANCH LINE. Refer to Open in One Side of Bus 2 Branch Line [10/2015 - 08/2019]

Result:

GO TO OPEN IN ONE SIDE OF BUS 3 BRANCH LINE. Refer to Open in One Side of Bus 3 Branch Line [10/2015 - ]

Result:

GO TO OPEN IN ONE SIDE OF BUS 4 BRANCH LINE. Refer to Open in One Side of Bus 4 Branch Line [10/2015 - ]

Result:

GO TO OPEN IN ONE SIDE OF BUS 5 BRANCH LINE. Refer to Open in One Side of Bus 5 Branch Line [10/2015 - ]

Result:

See step 26

CHECK RESULT OF COMMUNICATION MALFUNCTION CHECK (SELECT THE MALFUNCTIONING BUS)

Inspect or repair the probable malfunctioning part based on the check result of step 8 (the step in which checking for communication malfunction DTCs was performed).

Result of Communication Malfunction Check (Select Malfunctioning Bus)

Result	Proceed to
The sub bus monitor ECU has not output communication DTCs but ECUs connected to the bus 1, bus 2, bus 3, bus 4 or bus 5 have stored communication DTCs. (A malfunction occurred in the bus 1, bus 2, bus 3, bus 4 or bus 5.)	A
The main body ECU (multiplex network body ECU) (Main Body) outputs DTC U1002. (A malfunction occurred in sub bus 1.)	B
The main body ECU (multiplex network body ECU) (Main Body) outputs DTCs other than DTC U1002. (A malfunction occurred in an ECU branch line connected to sub bus 1.)	C

HINT:

The term "sub bus monitor ECU" refers to a gateway function equipped ECU that is able to monitor a bus and store DTCs.
When checking for communication DTCs, refer to How to Interpret Communication DTCs (DTCs that start with U).
Refer to DIAGNOSIS SYSTEM [10/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 12/2017] , or refer to DIAGNOSIS SYSTEM [12/2017 - 08/2018] , or refer to DIAGNOSIS SYSTEM [08/2018 - 08/2019]
Because a sub bus monitor ECU monitors signals from all ECUs that are connected to its sub bus, a sub bus monitor ECU can detect ECUs with a communication stop more accurately. In this case, perform troubleshooting by referring to the DTC combination table for the sub bus.
Refer to DIAGNOSIS SYSTEM [10/2015 - 08/2016] , or refer to DIAGNOSIS SYSTEM [08/2016 - 12/2017] , or refer to DIAGNOSIS SYSTEM [12/2017 - 08/2018] , or refer to DIAGNOSIS SYSTEM [08/2018 - 08/2019]
If communication DTCs are stored, and all ECUs and sensors connected to the CAN communication system are displayed on the CAN Bus Check screen of the Techstream, a past malfunction that is currently not occurring is suspected.
When a CAN branch of the bus 1, bus 2, bus 3, bus 4 or bus 5 is malfunctioning, because the ECUs and sensors related to it detect the malfunction, the problem area can be determined using the combination of DTCs that are output.
When sub bus 1 is malfunctioning, the main body ECU (multiplex network body ECU) detects a communication stop for connected ECUs and a network communication error, and stores DTCs.
On the Techstream, the Main Body item displays the DTCs for ECUs connected to sub bus 1.
When both the sub bus monitor ECU and the ECUs connected to the bus 1, bus 2, bus 3, bus 4 or bus 5 store communication DTCs, check and repair the corresponding sub bus first.

Result:

GO TO U1002 (Main Body). Refer to DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [10/2015 - 08/2019]

Result:

GO TO DIAGNOSTIC TROUBLE CODE CHART. Refer to DIAGNOSTIC TROUBLE CODE CHART [10/2015 - 08/2019]

Result:

See step 27

DTC COMBINATION TABLE

Confirm the problem according to the combination of output DTCs regarding the CAN communication system.

Refer to DTC COMBINATION TABLE [10/2015 - 08/2016] , or refer to DTC COMBINATION TABLE [08/2016 - 08/2018] , or refer to DTC COMBINATION TABLE [08/2018 - 08/2019]

Result

Result	Proceed to
Combination of DTCs is not in DTC Combination Table	A
Combination of DTCs is in DTC Combination Table	B

HINT:

CAN communication system history DTCs may indicate the problem if CAN communication system DTCs are output and all ECUs and sensors connected to the CAN communication system are displayed on the CAN Bus Check screen of the Techstream.

Result:

GO TO COMMUNICATION STOP MODE TABLE. Refer to PROBLEM SYMPTOMS TABLE [10/2015 - 12/2017] , or refer to PROBLEM SYMPTOMS TABLE [12/2017 - 08/2019]

Result:

See step 28

IDENTIFICATION OF PROBLEM (PAST MALFUNCTION IN MAIN BUS OF BUS 1, BUS 2, BUS 3, BUS 4 OR BUS 5)

Connect the cable to the negative (-) auxiliary battery terminal.
Clear the DTCs using the Techstream.
Perform the tests in Symptom Simulation to check the wire harnesses and connectors including those for main bus lines.
Refer to HOW TO PROCEED WITH TROUBLESHOOTING [10/2015 - 08/2016] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [08/2016 - 12/2017] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [12/2017 - 03/2018] , or refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2018 - 08/2019]

Based on the results of the check, inspect the parts that output DTCs to determine the malfunctioning part.

HINT:

If DTCs are output, do not turn the power switch off.

Result

Proceed to
NEXT

Result:

See step 29

REPAIR OR REPLACEMENT
Result

Proceed to

NEXT

Result:

NEXT

See step 30
CONFIRMATION TEST
Result

Proceed to

NEXT

Result:

NEXT

END

CHECK V BUS MAIN LINE

NOTE:

HINT:

Operating the power switch, any other switches or a door triggers related ECU and sensor communication on the CAN. This communication will cause the resistance value to change.

Disconnect the cable from the negative (-) auxiliary battery terminal.

Measure the resistance according to the value(s) in the table below.

Standard Resistance

FOR DLC3 CONNECTOR TYPE A

Tester Connection	Condition	Specified Condition
J12-6 (CANH) - J12-14 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
J12-6 (CANH) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J12-14 (CANL) - J12-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J12-6 (CANH) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J12-14 (CANL) - J12-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

FOR DLC3 CONNECTOR TYPE B

Tester Connection	Condition	Specified Condition
J141-6 (CANH) - J141-14 (CANL)	Cable disconnected from negative (-) auxiliary battery terminal	54 to 69 Ω
J141-6 (CANH) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J141-14 (CANL) - J141-4 (CG)	Cable disconnected from negative (-) auxiliary battery terminal	200 Ω or higher
J141-6 (CANH) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher
J141-14 (CANL) - J141-16 (BAT)	Cable disconnected from negative (-) auxiliary battery terminal	6 kΩ or higher

*A	for DLC3 Connector Type A
*B	for DLC3 Connector Type B
*1	DLC3

Result

Result
OK
NG

Result:

REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (NETWORK GATEWAY ECU - DLC3)

Result:

See step 32

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

Measure the resistance according to the value(s) in the table below.

*a	Front view of wire harness connector (to Network Gateway ECU)

Standard Resistance

Tester Connection	Condition	Specified Condition
J75-10 (GND) - Body ground	Cable disconnected from negative (-) auxiliary battery terminal	Below 1 Ω

Reconnect the cable to the negative (-) auxiliary battery terminal.

Measure the voltage according to the value(s) in the table below.

Standard Voltage

Tester Connection	Condition	Specified Condition
J75-1 (BATT) - Body ground	Power switch off	11 to 14 V
J75-2 (ACC) - Body ground	Power switch on (ACC)	11 to 14 V
J75-11 (IG1) - Body ground	Power switch on (IG)	11 to 14 V
J75-12 (IG2) - Body ground	Power switch on (IG)	11 to 14 V

Result

Result
OK
NG

Result:

REPLACE NETWORK GATEWAY ECU. Refer to REMOVAL [10/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019]

Result:

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
