Id Code Box
>>
Components [10/2015 - ]
Components [10/2015 - ]

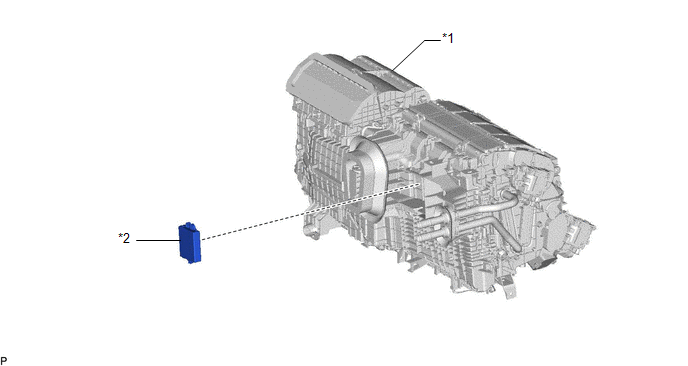

Fig 1: ID Code Box Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
AIR CONDITIONER UNIT ASSEMBLY
*2
ID CODE BOX (IMMOBILIZER CODE ECU)
